Installation
3.4 Connecting the device to
the electricity supply
The device must be connected to a proper-
ly earthed socket in line with the relevant
valid country regulations.
The mains plug/socket must be freely
accessible.
Check prior to initial operation that the vol-
tage noted on the model label corresponds
to the mains voltage. If this is not the
case, do not connect the device and con-
tact your dealer!
If the connection cable is damaged it must
be replaced by the Customer Service at
Dometic, or by respectively qualified per-
sonnel, in order to prevent any hazards.
The mains plug/socket must be freely
accessible once the miniBar has been
installed.
CAUTION!
3.4.1 Plug connection (UK only)
FOR UK ONLY!
If a 3-pin plug is used, it should be fitted with a 3
amp fuse, with other plug types, the circuit
should contain a 5 amp fuse.
Warning - This appliance must be earthed.
The wires in the mains lead of this appliance
are coloured in accordance with the following
code:
GREEN and YELLOW : EARTH
BLUE : NEUTRAL
BROWN : LIVE

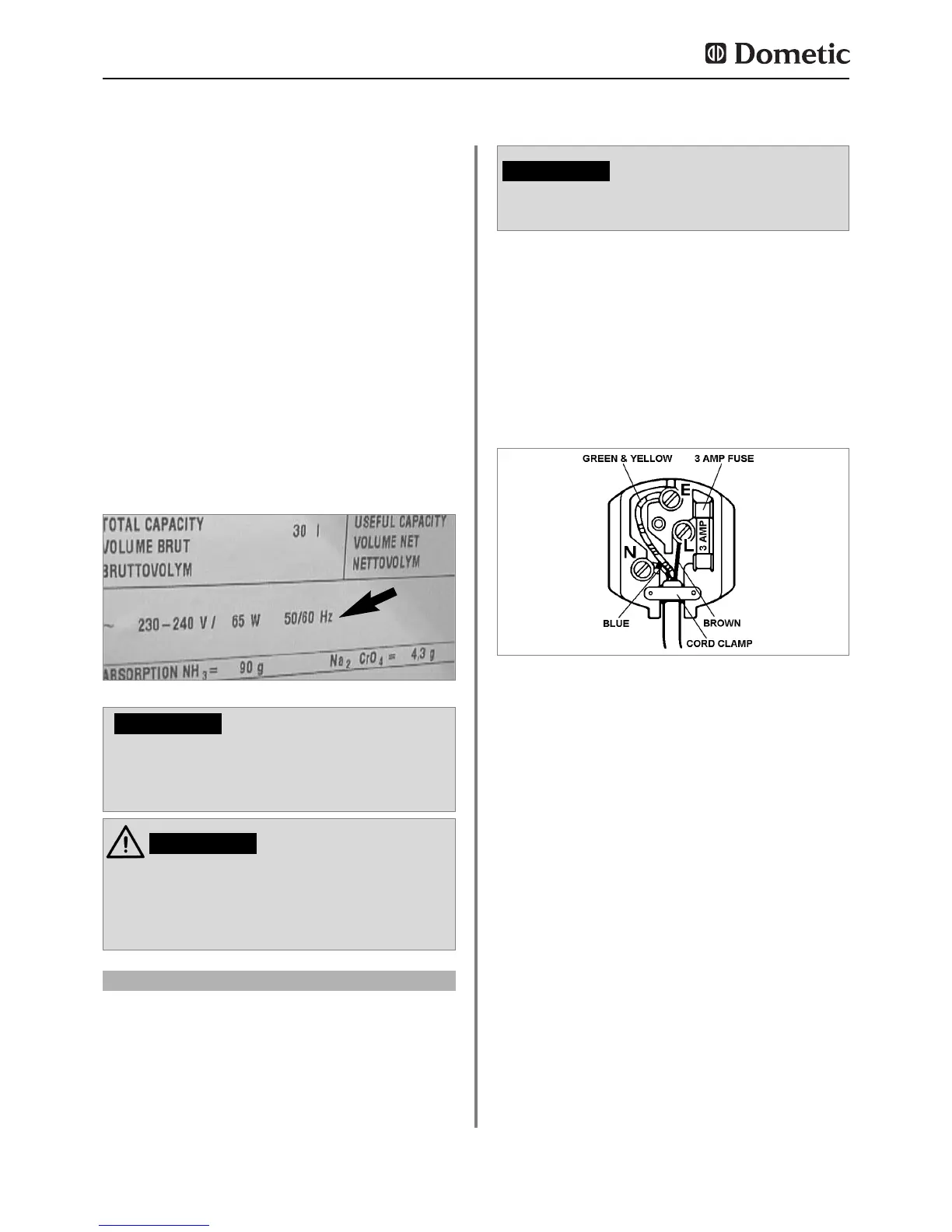

Fig. 10
As the colours of the wires in the mains lead
may not correspond with the coloured markings
identifying the terminals in your plug, proceed as
follows.
Connect the GREEN and YELLOW colou-
red wire to the plug terminal marked letter E
or earth symbol or coloured green or green
and yellow.
Connect the BROWN coloured wire to the
plug terminal marked letter L
or coloured red.
Connect the BLUE coloured wire to the
plug terminal marked letter N or
coloured black.
Moulded-On Plug Version :
The mains lead is fitted with a non-rewirable
moulded-on plug containing a 3 amp fuse. If the
fuse requires replacing at any time, the fuse
Fig. 9
This appliance must be earthed.
WARNING!
If the connection cable is damaged it must
be replaced by the Customer Service at
Dometic, or by respectively qualified per-
sonnel, in order to prevent any hazards.
CAUTION!
