Installation
Fig. 24
Fig. 23
6
7
Fig. 26
Fig. 25
8
9
Fig. 27
10
Pull the lower hinges forwards, pull out the door
with the hinge.
Remove the upper hinge pin and insert on the
other side, change the lower pin in the door. Then
push the door in together with the lower hinge.
The (optional) LED of the door-opening control is
placed always opposite the hanging side.
If the miniBar is equipped with the LED first carry
out steps 1. - 5. :
Pull out LED, lay the
cable into the cable
routing and insert the
LED at the opposite
side.
(4. + 5. = appliance
wiht feet)

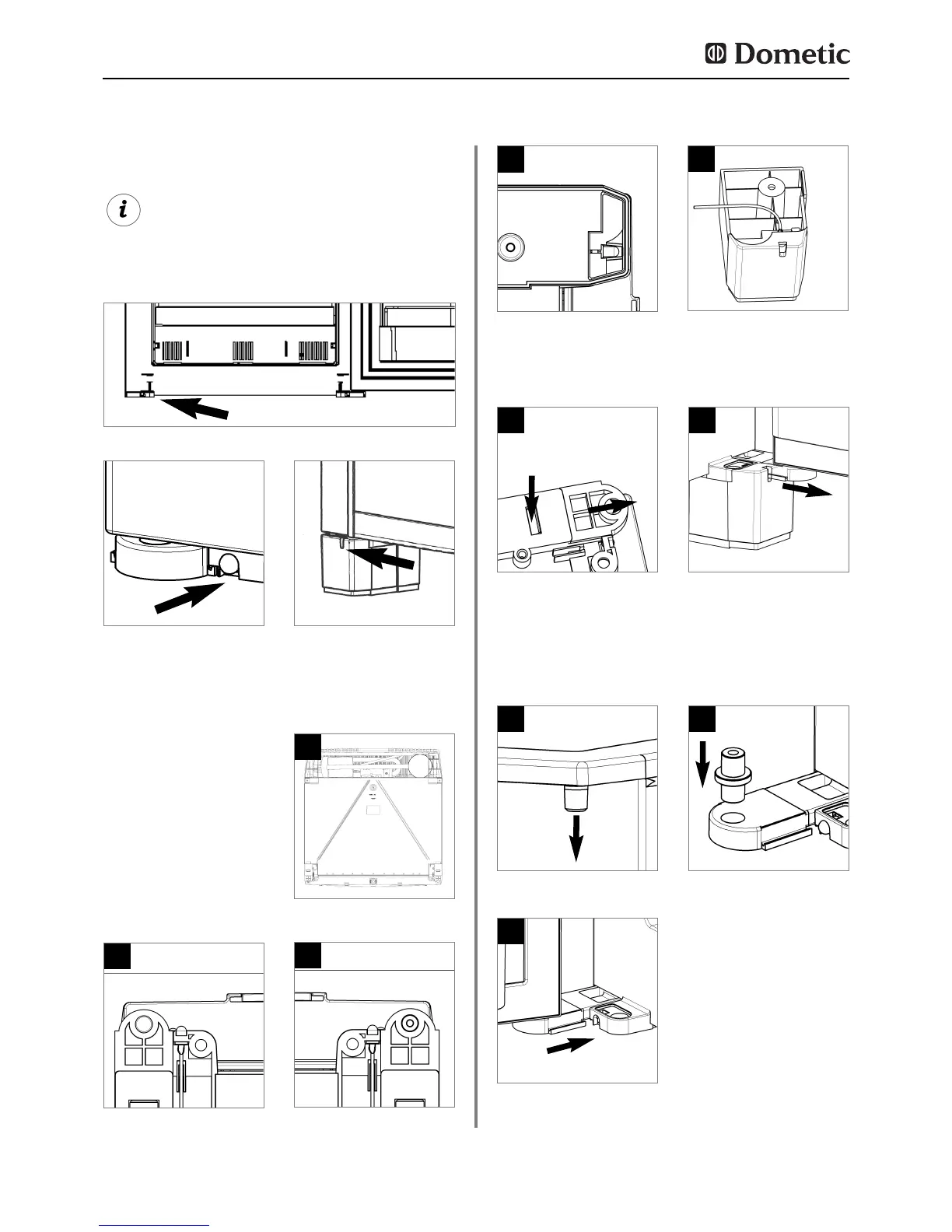

3.6 Changing the doorhang
Fig. 15
Fig. 17
appliance with feet
Fig. 16
Fig. 18
1
Fig. 20
Fig. 19
2
3
Fig. 22
Fig. 21
4
5
