17
Operation

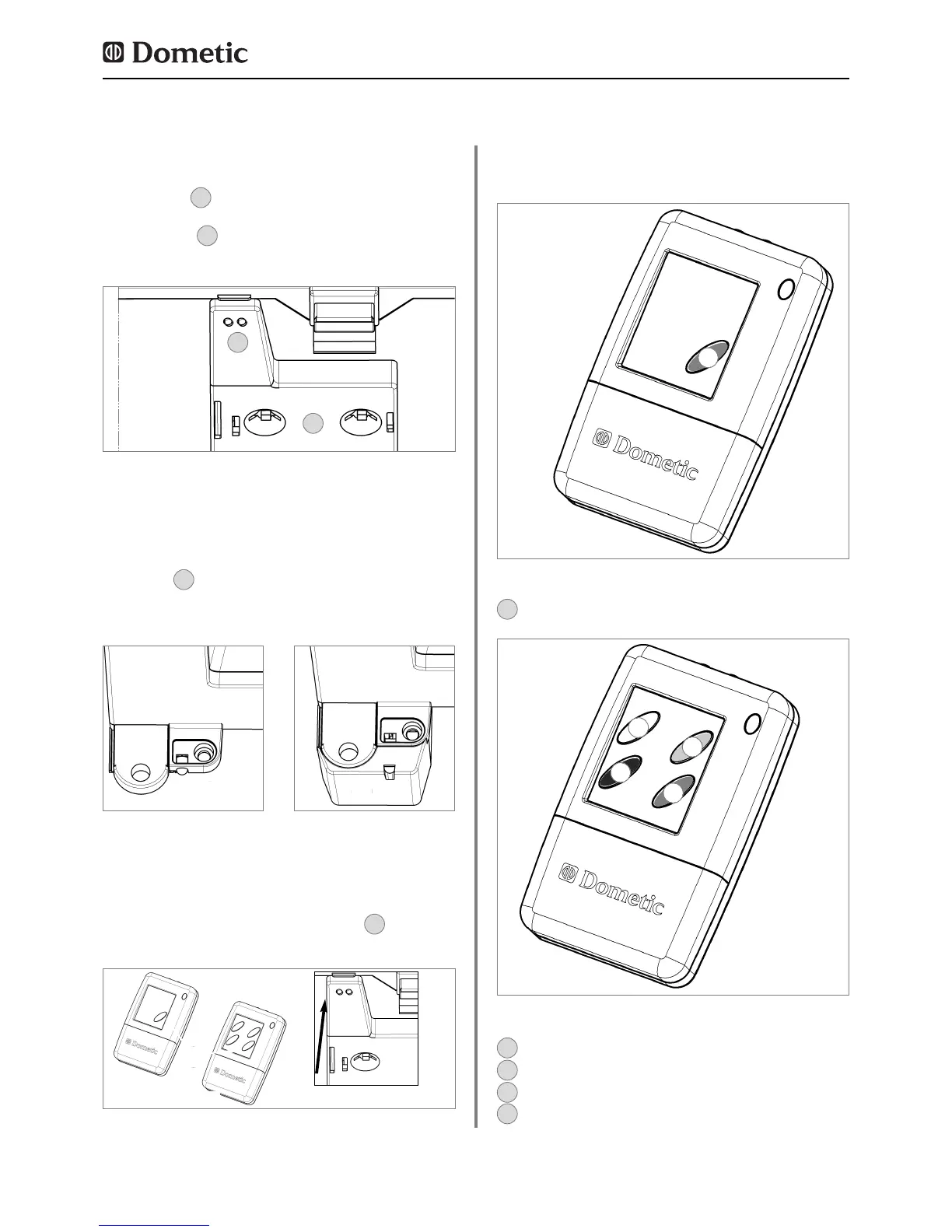

Two LEDs (1) light the cooling compartment
whilst the door is opened.
Two sensors (2) control the LEDs and the (optio-
nal) door control as well.
4.7 Interior light
4.8 Automatic Door Control [ADC]
(optional)
The LED (1) placed at the bottom edge of the
miniBar indicates whether the miniBar door has
been opened.
1. Open the miniBar, check its contents and
- if applicable- stock it up again.
2. Reset the door control sensor by means of an
IR-transmitter (RED-DOT-RESET) .
3. Close the miniBar.
Fig. 41
Fig. 40
Fig. 39
Fig. 38
2
2
1
2
1
1
1
1
Infrared - transmitter
2
Infrared - reciever
4.9 Remote control
1
Red = Red Dot Reset (reset door opening)
Type 1
1
Fig. 42
1
2
3
4
Red =
Red Dot Reset
(door opening, press once)
Black = Reset cooling unit (press once)
Yellow = Change over temperature 3°C / 7°C
Blau = Change over temperature 5°C / 12°C
Type 2
1
2
3
4
Fig. 43
