11
Installation
Fig. 11
1
Fig. 12
2
Fig. 13
3
Fig. 14
4

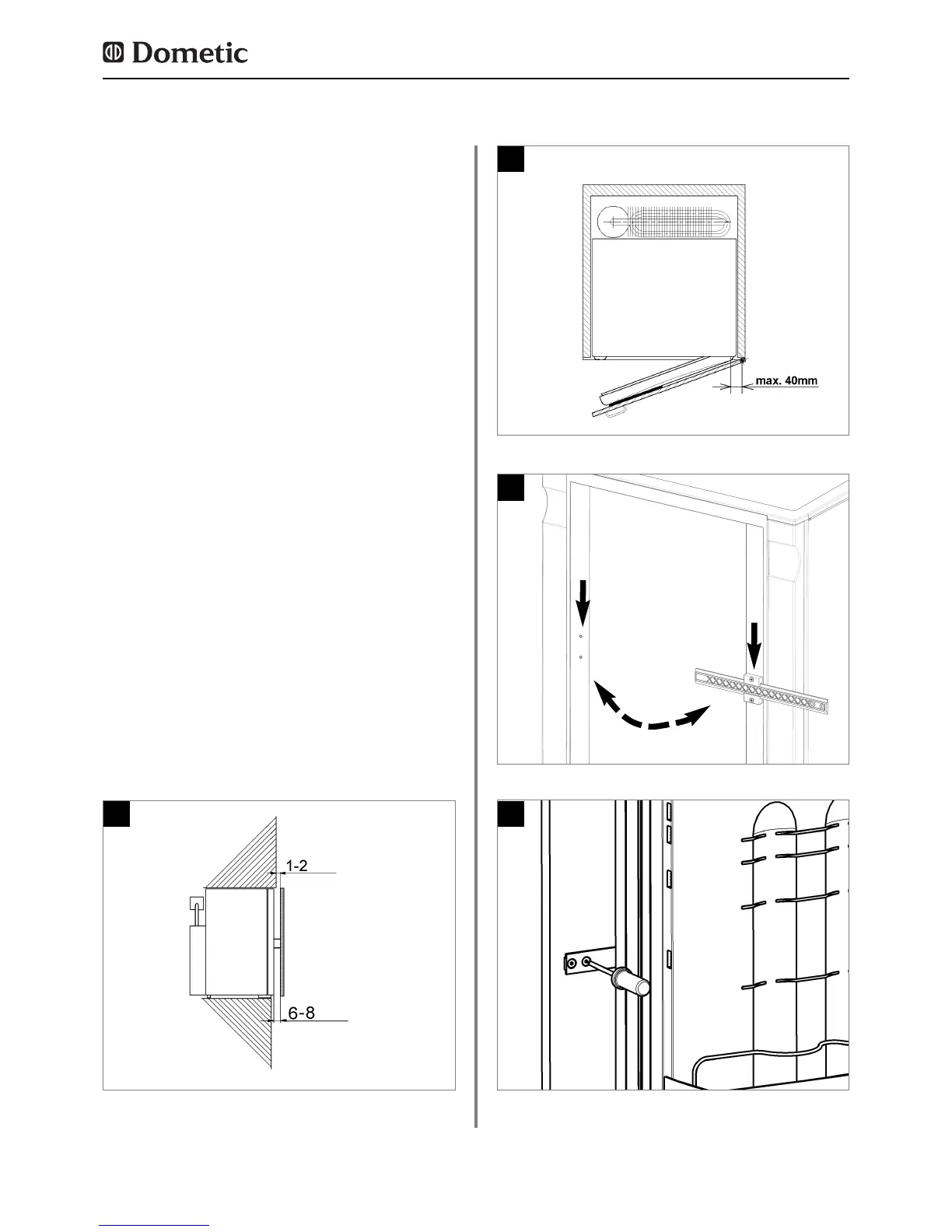

3.5 Installing and changing the
sliding hinge
Distance to cupboard door (Fig. 11, 12)
When closed, the cabinet door must not abut
the cabinet frame (clearance 1-2 mm), other-
wise the miniBar door does not close tightly.
There must be a distance of 6-8mm bet-
ween the cupboard door and the miniBar.
cover/carrier should be removed using a small
screwdriver to level out. The old fuse should be
replaced by a 3 amp ASTA approved BS1362
fuse and the fuse cover/carrier must be
refitted before the plug is used again.
If the fuse cover-carrier is lost, a replaceement
can be obtained from the Dometic Service
Centers.
The fuse cover/carrier must be of the same
colour as that of the coloured insert in the base of
the plug. In no circumstances must the plug be
used without a correct fuse cover/carrier fitted.
If the plug supplied on the mains lead is not suit-
able for the socket in your home, it should be cut
off and disposed of safely, or destroyed, to avoid
any possible shock hazard resulting from the plug
being inserted into a 13 amp socket elswhere in
the use. A suitable replacement plug should then
be fitted as given above.
