13
Installation

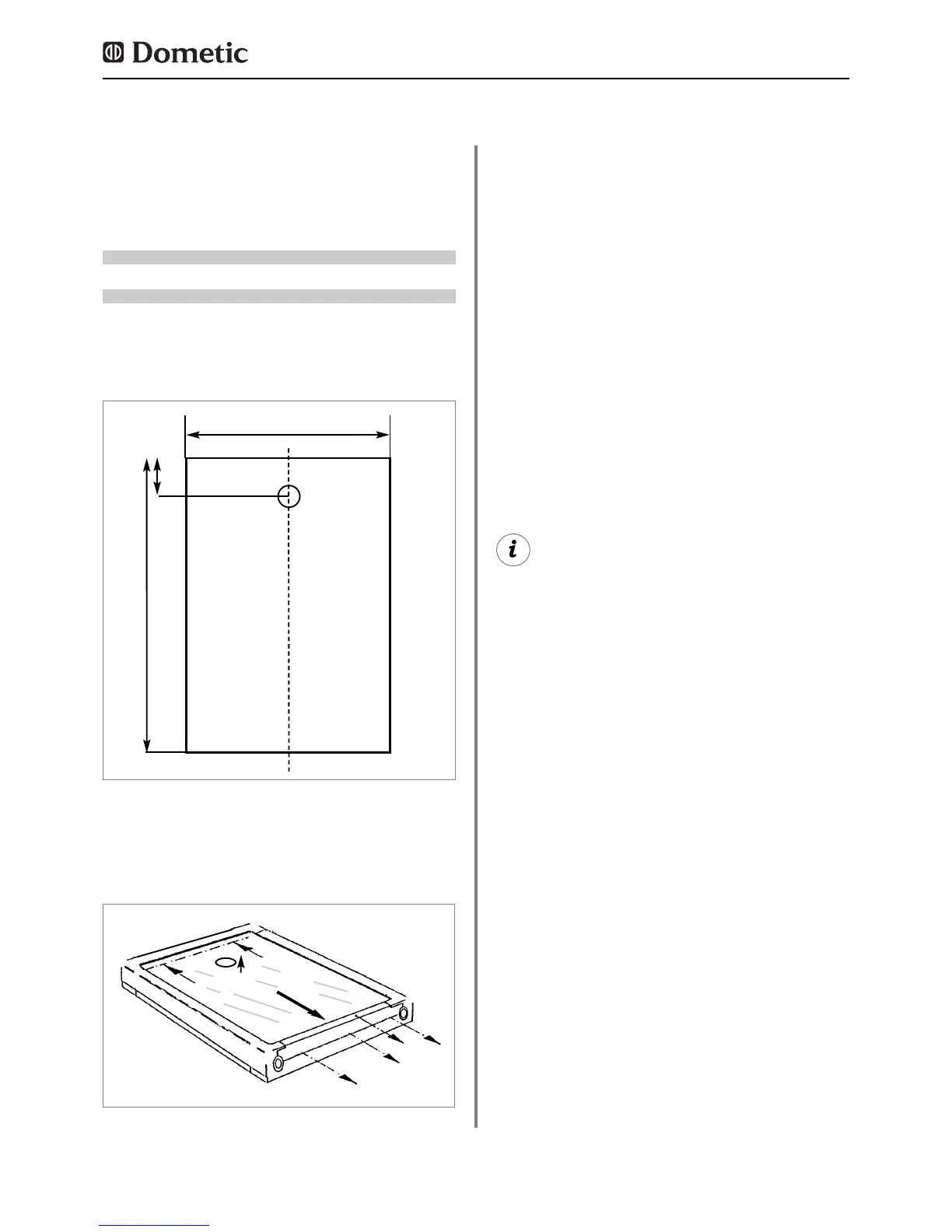

3.7 Decor panel
3.7.1 Measurements of decor panel
H x W x D (mm)
HiPro 3000 492 x 294,5 x 2
(max)
HiPro 4000 524 x 311,5 x 2
(max)
HiPro 6000 533 x 376,5 x 2 (max)
Hole for door lock (a)
diameter Ø 23,5 mm
distance from the edge (h) 62 mm
Fig. 28
B
H
h
a
3.7.2 Changing the decor panel
Fig. 29
A
C
B
Detach the lower door hinge and pull the
door out (see also "3.6").
Remove the holder for the lock (A) (mounted).
Detach the lower frame section (B) (not scre-
wed) and remove.
Slightly bend the decorative panel (C) and
pull it out of the door frame.
Push in a new decorative panel with the
upper edge running exactly parallel to the
upper part of the frame. Place the frame sec-
tion (B) on and press firmly (clip in).
Place the door onto the lower hinge, insert
the hinge pin into the top of the door, push
the door with the hinge into the hinge recep-
tacle at the bottom and allow the hinge to
notch. Insert the hinge pin in the door, push
in the door and let the hinge click in.
Remark (devices without doorlock):
Additional installation of a door lock is possi-
ble (available from Dometic)
In the door the position for the opening is
prepared.
Drill the hole in accordance to the drawing
above.
