Description of Control Passport I/O Control Operations Manual
2 L-2231 ENGLISH

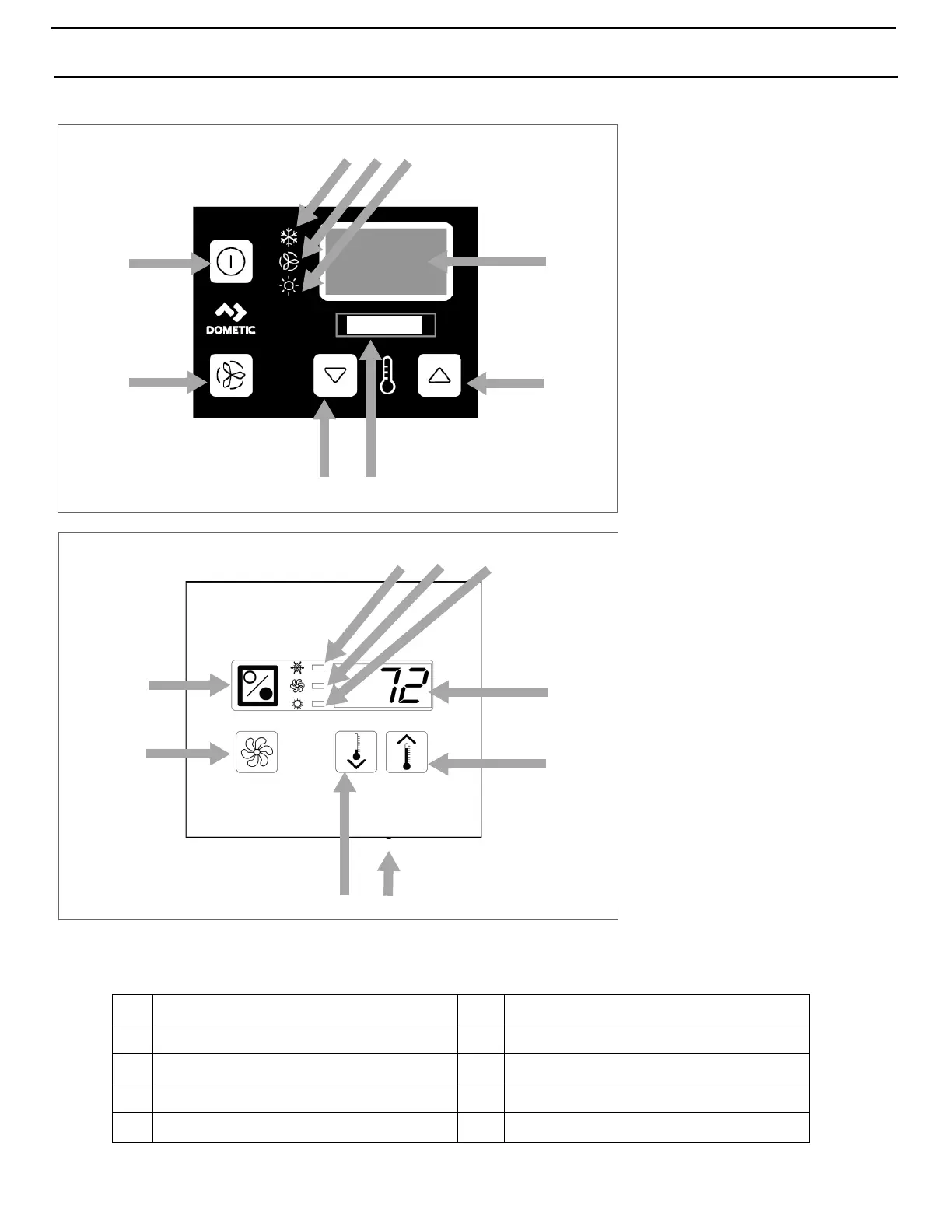

Figure 1: Passport I/O Display Panel and Indicators
Table 1: Passport I/O Display - Diagram Legend
1
Cool Mode indicator
6
Temperature sensor
2
Fan indicator
7
Down button - Lower temperature set point
3
Heat Mode indicator
8
Fan button
4
Digital display
9
Power button
5
Up button - Raise temperature set point
4
123
7
6
5
8
9
Legacy model
123
4
5
67
8
9
Compact model
