COMPONENTS-
HEATING ELEMENT

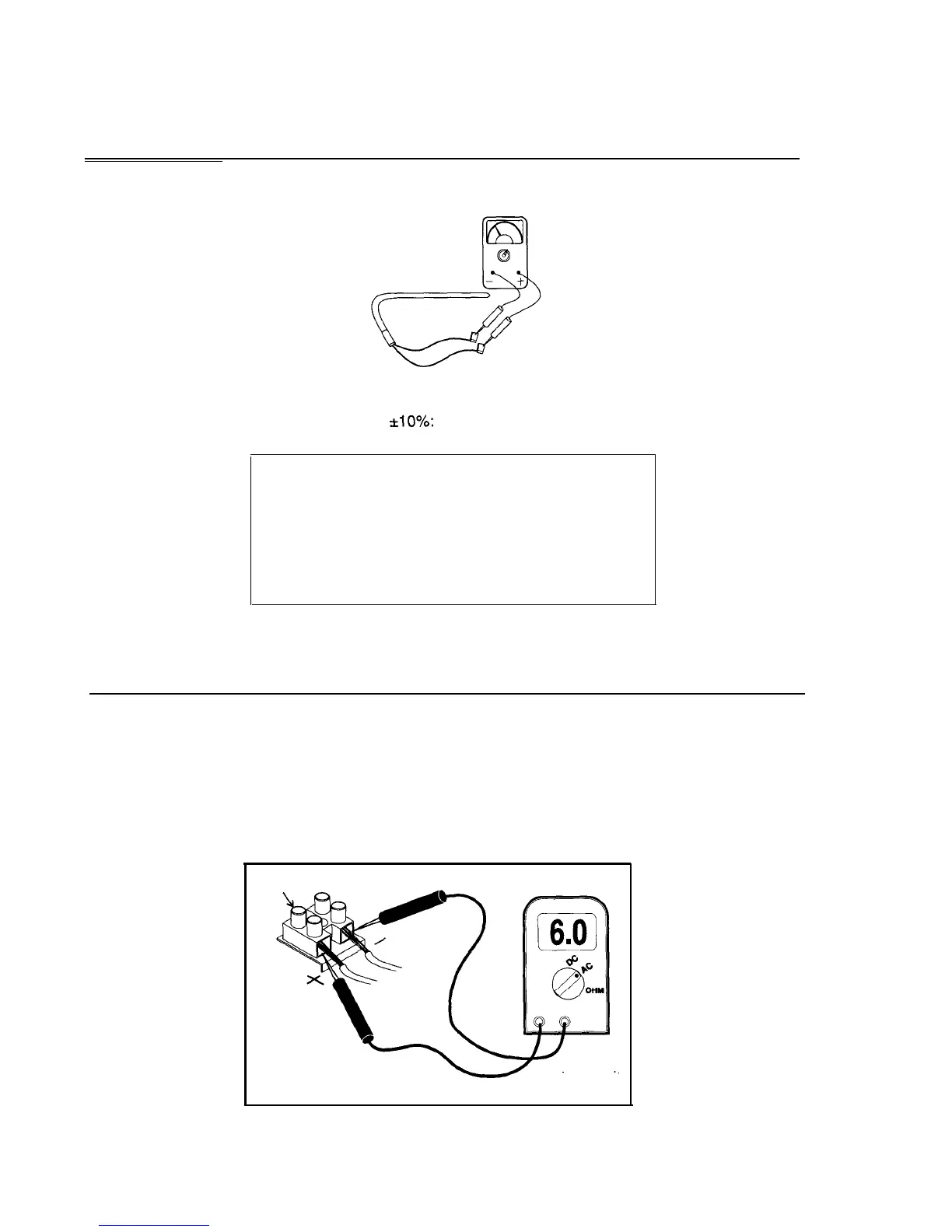

Remove the heater leads from the lower circuit board and measure for proper resistance across the
two leads.
You should obtain the following readings,
*lo%:
WATTS VOLTS
OHMS
RM2612 295
120
48
RM2652 325
120
44
RM2812 325
120
44
RM2852
325 120
44
DC VOLTAGE REQUIREMENTS
Clean Direct Current (DC) power is mandatory for high-tech circuits to operate as designed.
A battery will provide straight line DC power.
The converter and alternator produce DC power by a series of diodes that rectify alternating current
to DC.
AC ripple can be measured by a digital voltmeter set on the AC scale at the main terminal block
connections. Six volts AC or less is acceptable.
MAIN TERMINAL BLOCK
