Dometic SeaStation - Pole Mount Dimensions; Cable Considerations

To Next Page

To Previous Page

2-6

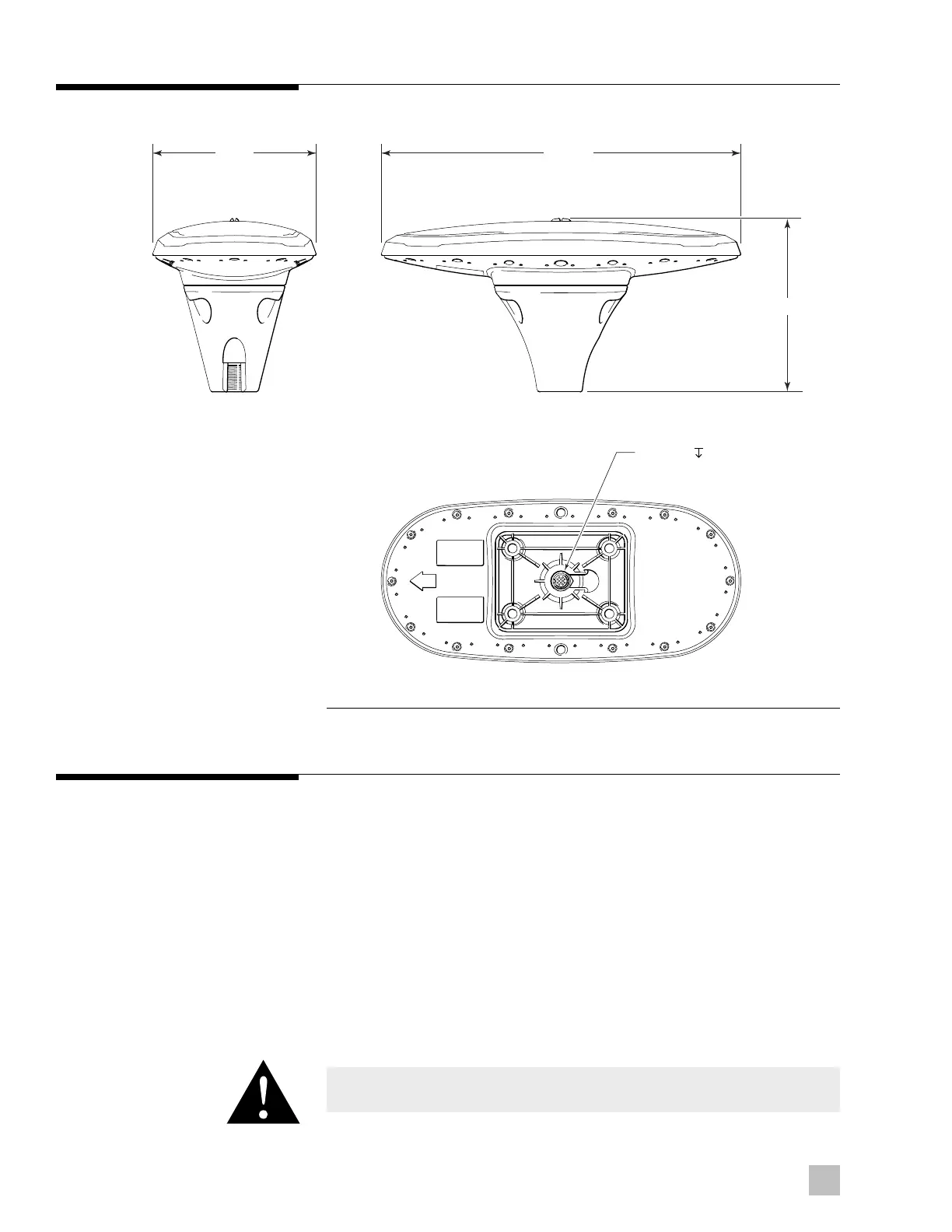

Figure 2-5 : Sensor with pole mount accessory dimensions.

2.4.5

Cable considerations

Before mounting the sensor, consider the following regarding cable routing:

• Avoid running the cable in areas of excessive heat

• Keep cable away from corrosive chemicals

• Do not run the cable through door or window jams

• Keep cable away from rotating machinery

• Do not crimp or excessively bend the cable

• Avoid placing tension on the cable

• Remove unwanted slack from the cable at the sensor end

• Secure along the cable route using plastic tie wraps

WARNING!

Improperly installed cable near machinery can be dangerous.

2.4.4

Pole mount dimensions

13.71"6.23"

6.61

1.0"–14 1.00"
