2.4.6
Surface mount
Two options exist for surface mounting the SeaStation antenna, low profile
and high profile mount (figure 2-6). A flat surface is required and the flat surface
may be something you fabricate per your installation, an off-the-shelf item
(such as a radar mounting plate), or an existing surface on your vessel.

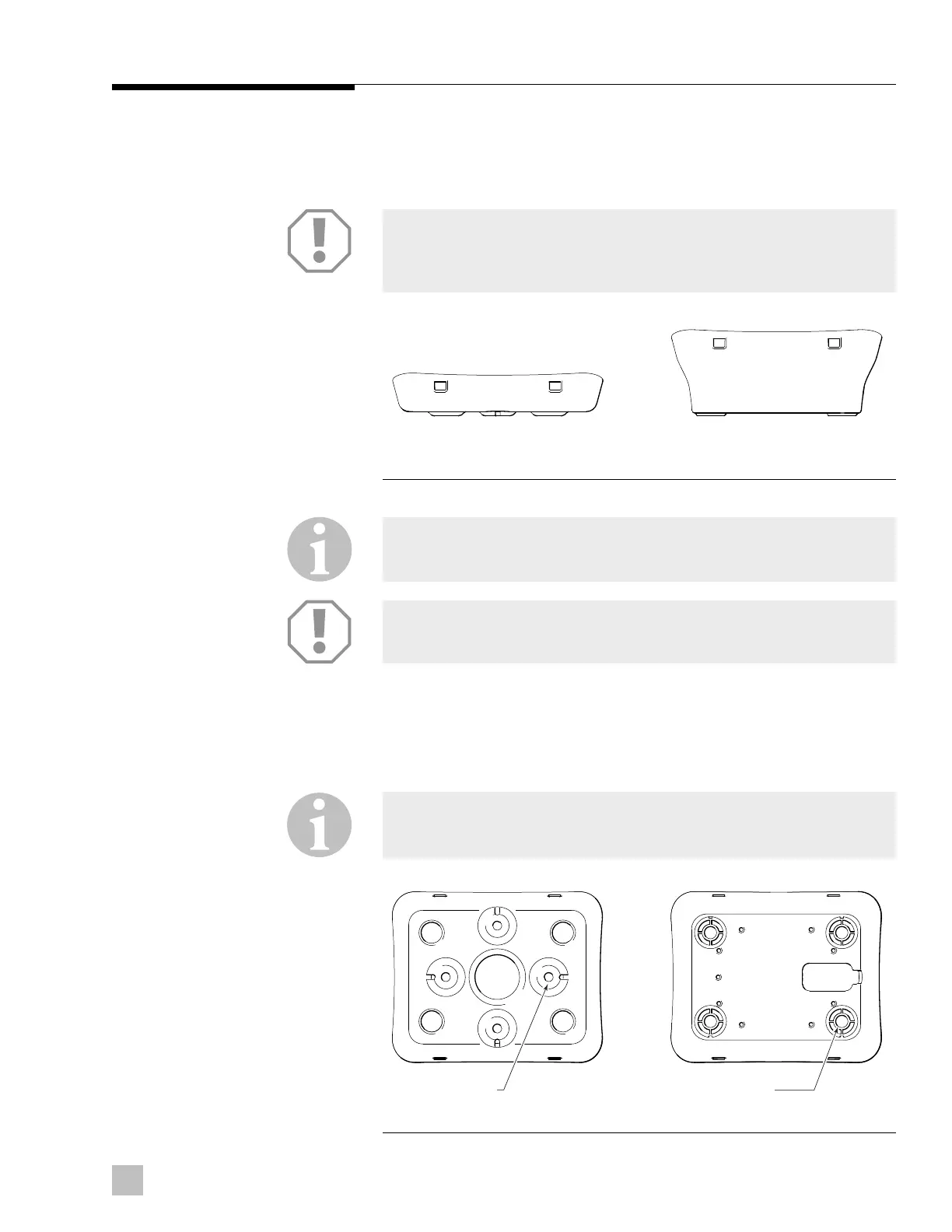

Figure 2-6. Surface mount baseplate options.
Figure 2-7. Surface mount drill patterns.
Surface mounting the sensor
1. Choose a location that meets the mounting location requirements.
2. Using the selected base plate as a template, mark and drill the
mounting holes as necessary for the mounting surface.
NOTICE!
Dometic does not supply the mounting surface hardware. You must supply
the appropriate fastening hardware required to complete the installation
of the sensor.
NOTICE!
When using the high profile base plate a 90° DeviceNet fitting must be
used for the communication cable.
LOW PROFILE MOUNT HIGH PROFILE MOUNT
NOTE
The low profile and high profile have different drill patterns for the mounting
hardware and communication harness as shown in figure 2-7.
4X Ø 0.35"4X Ø 0.25"
LOW PROFILE MOUNT HIGH PROFILE MOUNT
NOTE
The high profile mount allows the communication harness to exit the
mount without drilling a hole if desired.
