Dometic Slide Topper 9800 Series User Manual

4
SPECIFICATIONS

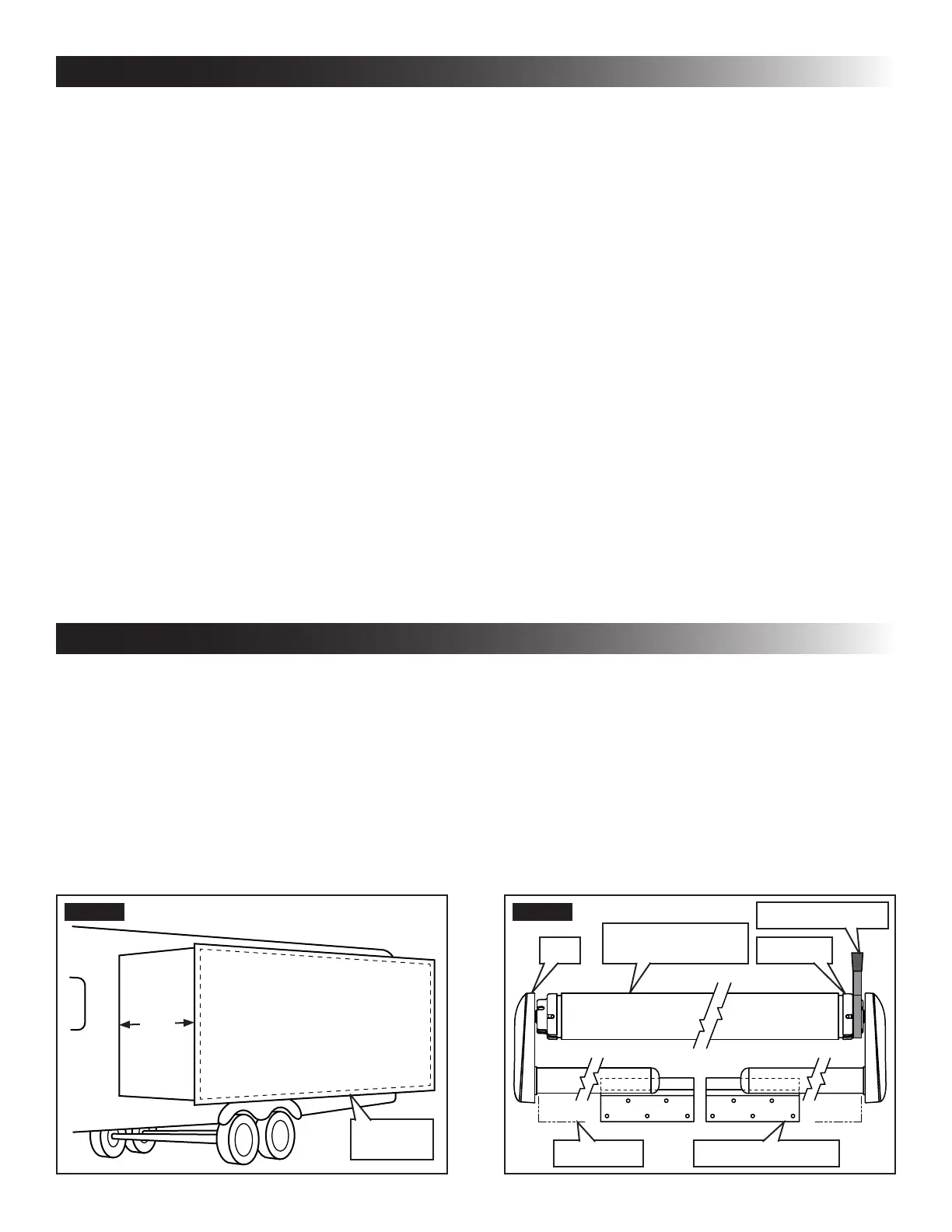

A. Slide Out Room And Slide Topper
1. Full extension of slide out room MUST NOT exceed 42″. See (FIG. 1).
See “Slide Topper Sizing” in Application Guide to determine appropriate slide topper width for the slide out
room application.
2. Slide Toppers 198″ or wider REQUIRE the following options / kits:
● A second anti-billow stop kit (one at each end cap). See (FIG. 2).
● A second anti-billow bracket kit (one at each end cap).
● A cradle kit for center support (of FRTA).
See “B. Optional Components & Kits” on page (4) to order cradle kit.
Slide Toppers 360″ or wider may use a second (optional) cradle kit.
FIG. 1
Slide Out
Room
Maximum
Extension
42″
FIG. 2
Anti-Billow Stop
Extension Mounting Bracket
Arm
Fabric Roller Tube
Assembly (FRTA)
End Cap
GENERAL INFORMATION
A. Included Hardware
(1) LH Topper Arm with 15″ or 18″ Extension (Bar)
(1) RH Topper Arm with 15″ or 18″ Extension (Bar)
(2) Cotter R-Pin
(12) #10-12 X 1″ Screw
(6) #8-18 X 3/8″ Screw
(2) #6-20 X 7/16″ Self Drilling Screw
● One Anti-Billow Stop Kit is included:
(1) Anti-Billow Stop
(2) #10-16 X 3/4″ Screw
● One Anti-Billow Bracket Kit is included:
(1) Anti-Billow Bracket
(1) Anti-Billow Spacer
(3) #10-12 X 3/4″ Screw
(2) 3/16″ X 3/8″ Oscar Rivet
● One of the following Topper Bracket sets is required:
(2) Topper Short (Wall) Bracket with hardware
(2) Topper Tall (Wall) Bracket with hardware
B. Optional Components & Kits
(1) 3107940.003 Mounting Bracket Spacer Kit
(3/4″ thick)
(1) 3310066.000# Mounting Bracket Spacer Kit
(1/2″ thick)
(1) 3106774.XXX-# Awning Rail
(1) 3106774.262-# Awning Rail 20′ (20 Pack)
(1) 113008P10 Oscar Rivet (10 Pack)
(1) 113008P100 Oscar Rivet (100 Pack)
(1) 3308176.001 Edge Protector (10 Pack)
(1) 3308176.019 Edge Protector (100 Pack)
(1) 3109252.XXX# Anti-Billow Stop Kit
(1) 3107198.XXX# Anti-Billow Bracket Kit
(1) 3309526.XXX# Cradle Kit
Slide Toppers 198″ or wider REQUIRE the
following options / kits:
● A second anti-billow stop kit (one at each
end cap).
● A second anti-billow bracket kit (one at
each end cap).
● A cradle kit for center support (of FRTA).
Slide Toppers 360″ or wider may use a sec-
ond (optional) cradle kit.
