Domino Ax350i User Manual

MAINTENANCE
EPT019297 Issue 1 November 2016 5-11

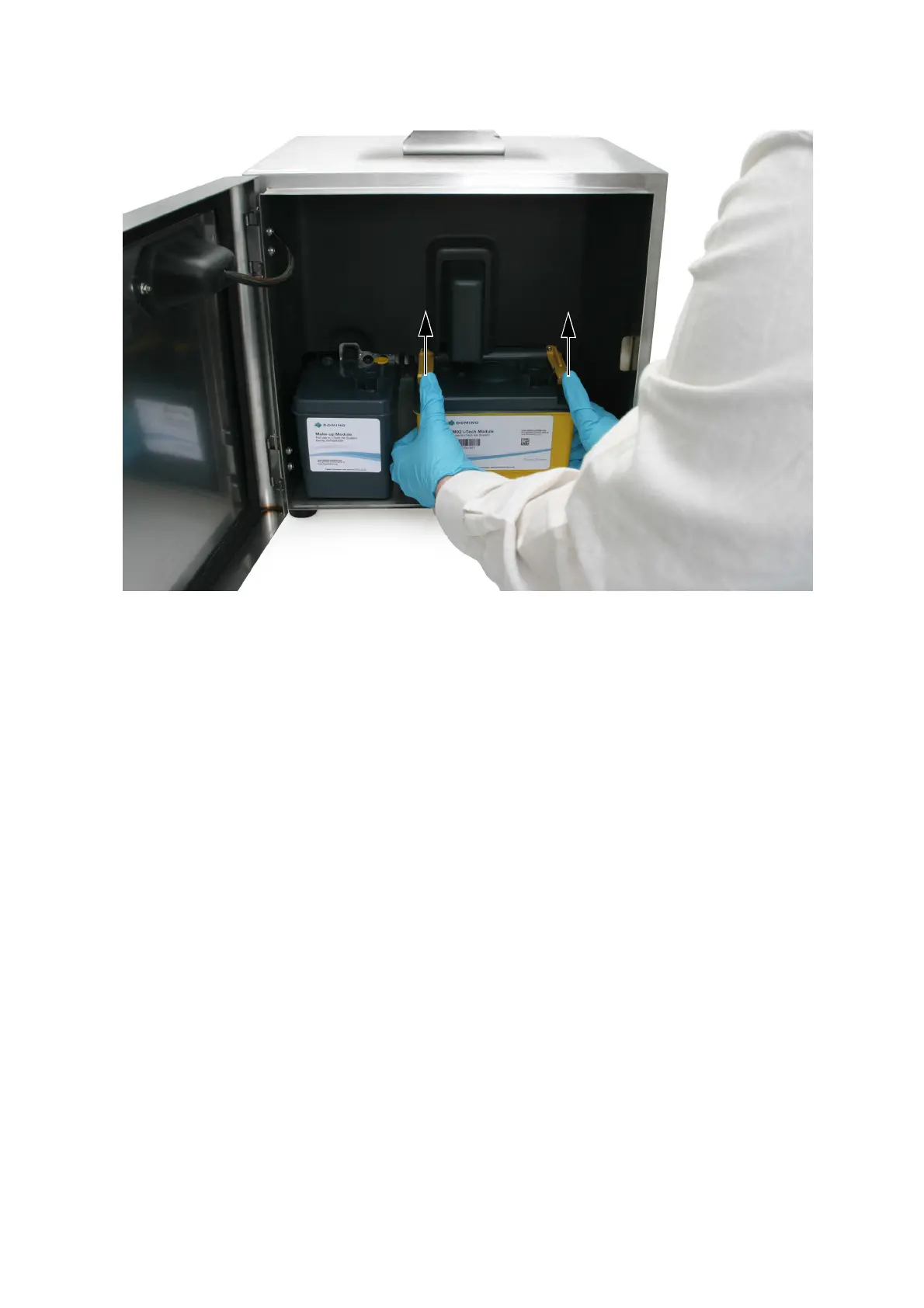

(5) Pull the two ITM retaining clips upwards away from the ITM.
(6) Pull the ITM backwards, withdrawing the connecting manifold from the ink block and
remove the old ITM.
Notes: (1) If the ITM does not withdraw with moderate pressure, push the ITM fully forward
(which will break any seal caused by dry ink) and try again.
(2) The manifold pipes will contain residual ink. Take care when removing the ITM to avoid
spillage.
(7) Unpack the new ITM and remove the sealing strip that protects the ITM manifold.
(8) Re-use the sealing strip to seal the manifold on the old ITM.
Removing the ITM

Domino Ax350i Specifications

General

Print Technology	Continuous Inkjet (CIJ)
Printhead	i-Pulse Printhead
Ink Type	MEK, Acetone, Ethanol based inks
User Interface	Touchscreen
Connectivity	Ethernet, USB
Operating Temperature	5°C to 45°C
Resolution	300 dpi
Maximum Print Width	4.09 inches
