Inverse Mode

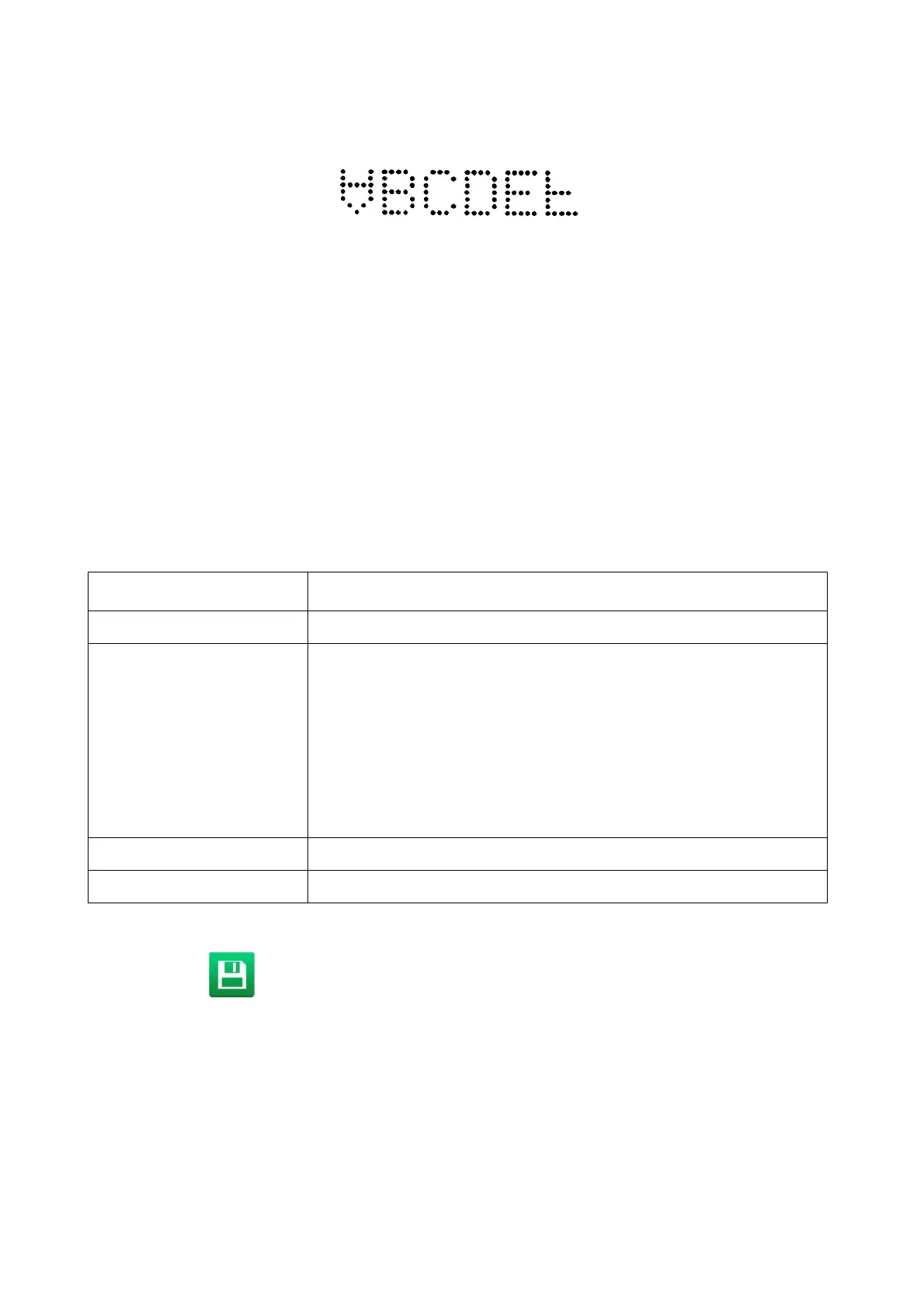

Inverse mode is used to invert an individual label design as shown in the illustration below.
This setting can also be used on a traversing line to invert the label design for a specified number
of times before inverting the label back. Furthermore, this setting can be configured to invert the
label when the printer’s user port is activated.
Notes: (1) A global invert setting is available to invert all label designs. However, the global
setting does not allow the number of inverted prints to be counted. Also, the global
setting does not allow inverted prints to be triggered by a user port, see page 4-62.
(2) If required, the label can also be inverted on the Print optimisation screen, see
page 4-9.
To setup inverse mode for an individual label design:
(1) In the label creator’s side menu, select the Label tab.
(2) Select the Settings menu.
(3) Select the Inverse mode drop down setting.
(4) Select and configure one of the options described in the table below:
(5) Select the Save icon to save the setting.
End of procedure.
Setting Name Explanation
On - Always The label design will be inverted at all times.
On - Counted The label design will be inverted for a specified number of prints.
When this option is selected, the settings described below will
also be displayed:
Inverse: Initial orientation - Select the orientation of the first label
print.
Inverse repeat count - Select the number of times the label will be
printed in an inverted orientation.
On User port The label design will be inverted when the user port is activated.
Off The label design will not be inverted.
