Domino Ax350i User Manual

INSTALLATION
EPT019297 Issue 1 November 2016 3-9
TOUCHPANEL INSTALLATION (Ax350i/Ax550i)
Ax350i and Ax550i printers are operated either via a remote TouchPanel Type 3 or 4, or via a PC.
TouchPanel Type 3
The TouchPanel Type 3 is a user interface with a 10.4 inch touch screen. The TouchPanel Type 3
has 2 USB ports and a connector to provide control of the Ax350i/Ax550i printers.

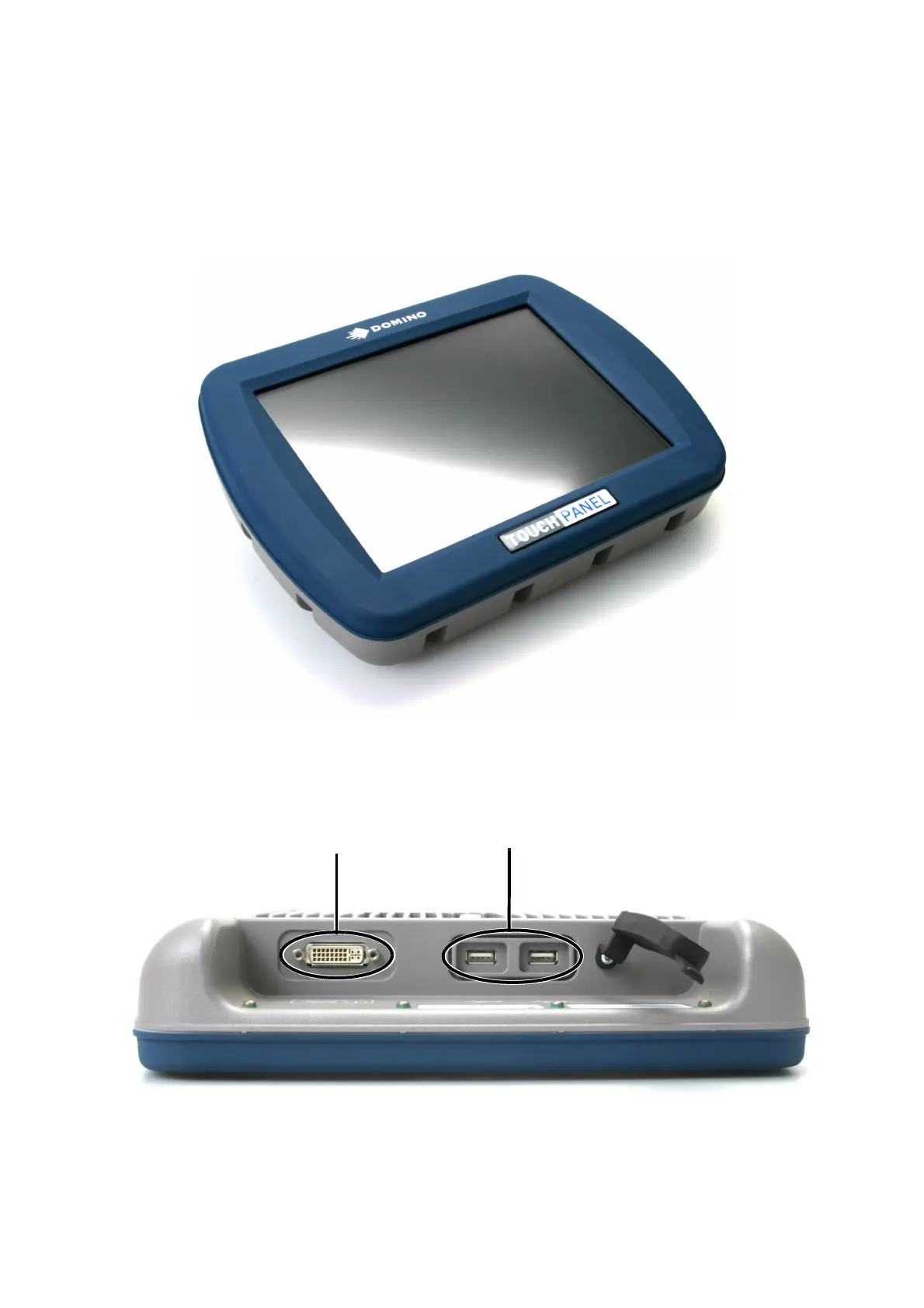

TouchPanel Type 3 Front View
TouchPanel Type 3 Connections
TouchPanel to Printer
Connection
USB Type A

Domino Ax350i Specifications

General

Print Technology	Continuous Inkjet (CIJ)
Printhead	i-Pulse Printhead
Ink Type	MEK, Acetone, Ethanol based inks
User Interface	Touchscreen
Connectivity	Ethernet, USB
Operating Temperature	5°C to 45°C
Resolution	300 dpi
Maximum Print Width	4.09 inches
