Backlash suppressed
Printing will only occur when the production line moves in the forward direction. When the
production line moves backward, printing is paused. Printing will resume as soon the production
line moves in the forward direction.
Backlash Forward
This setting is similar to single mode, however both input signals from the quadrature shaft
encoder will be read. Backward movement will be treated the same as forward movement,
printing will occur in both directions.
(21) Select Backlash direction drop down setting and choose which direction the shaft encoder
will detect as forward.
End of procedure.
Backlash direction
options
Explanation
A leads B Forward movement will be detected when the shaft encoder turns
clockwise.
B leads A Forward movement will be detected when the shaft encoder turns
anti-clockwise.
Production Line Direction
<< Forward Backward >>
Printing
Printing
No Printing

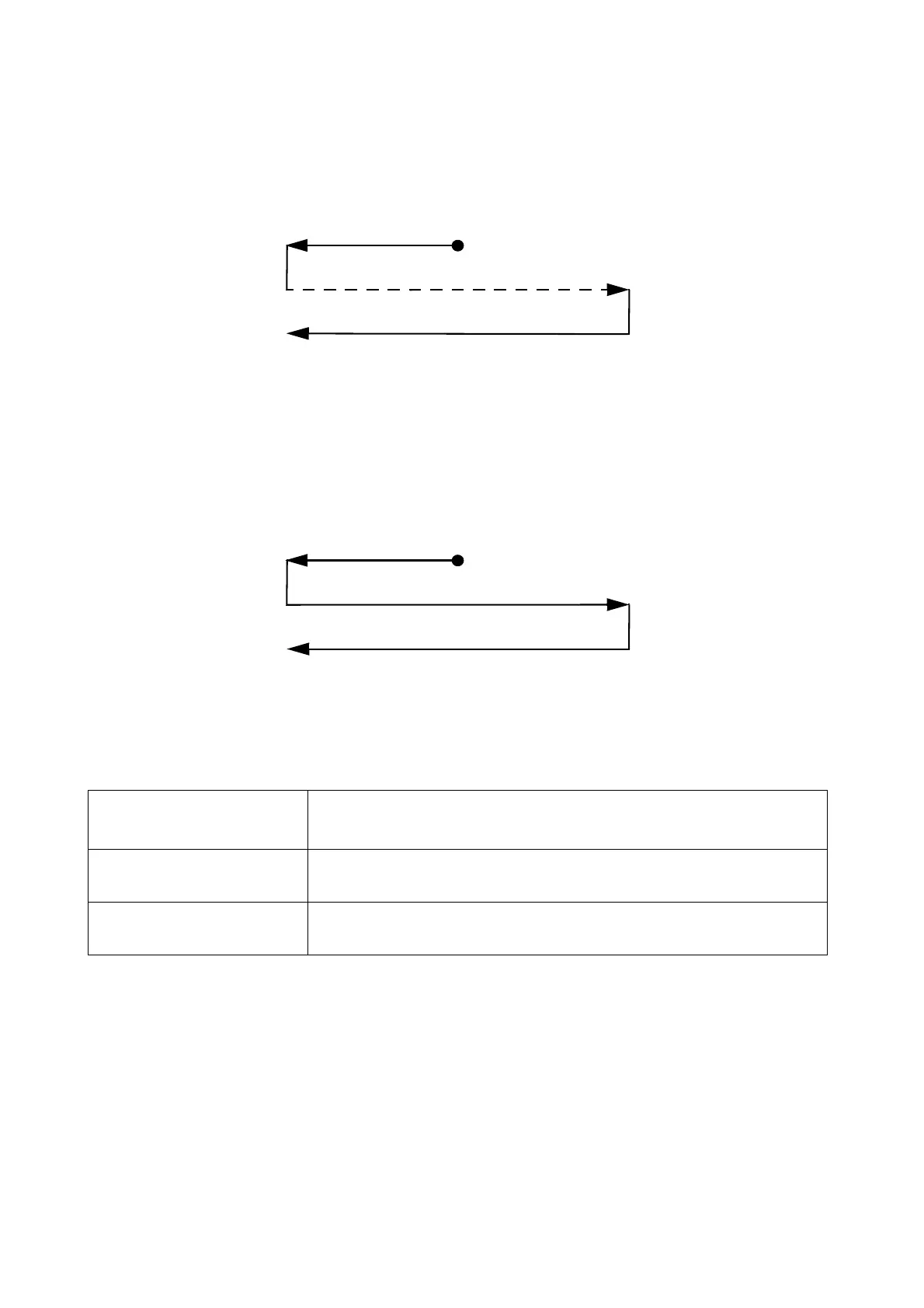

Backlash Suppressed Encoder Mode Diagram
Production Line Direction
<< Forward Backward >>
Printing
Printing
Printing
Backlash Forward Encoder Mode Diagram

Domino Ax350i Specifications

General

Print Technology	Continuous Inkjet (CIJ)
Printhead	i-Pulse Printhead
Ink Type	MEK, Acetone, Ethanol based inks
User Interface	Touchscreen
Connectivity	Ethernet, USB
Operating Temperature	5°C to 45°C
Resolution	300 dpi
Maximum Print Width	4.09 inches
