INSTALLATION
42 77091 Issue 2 November 2003

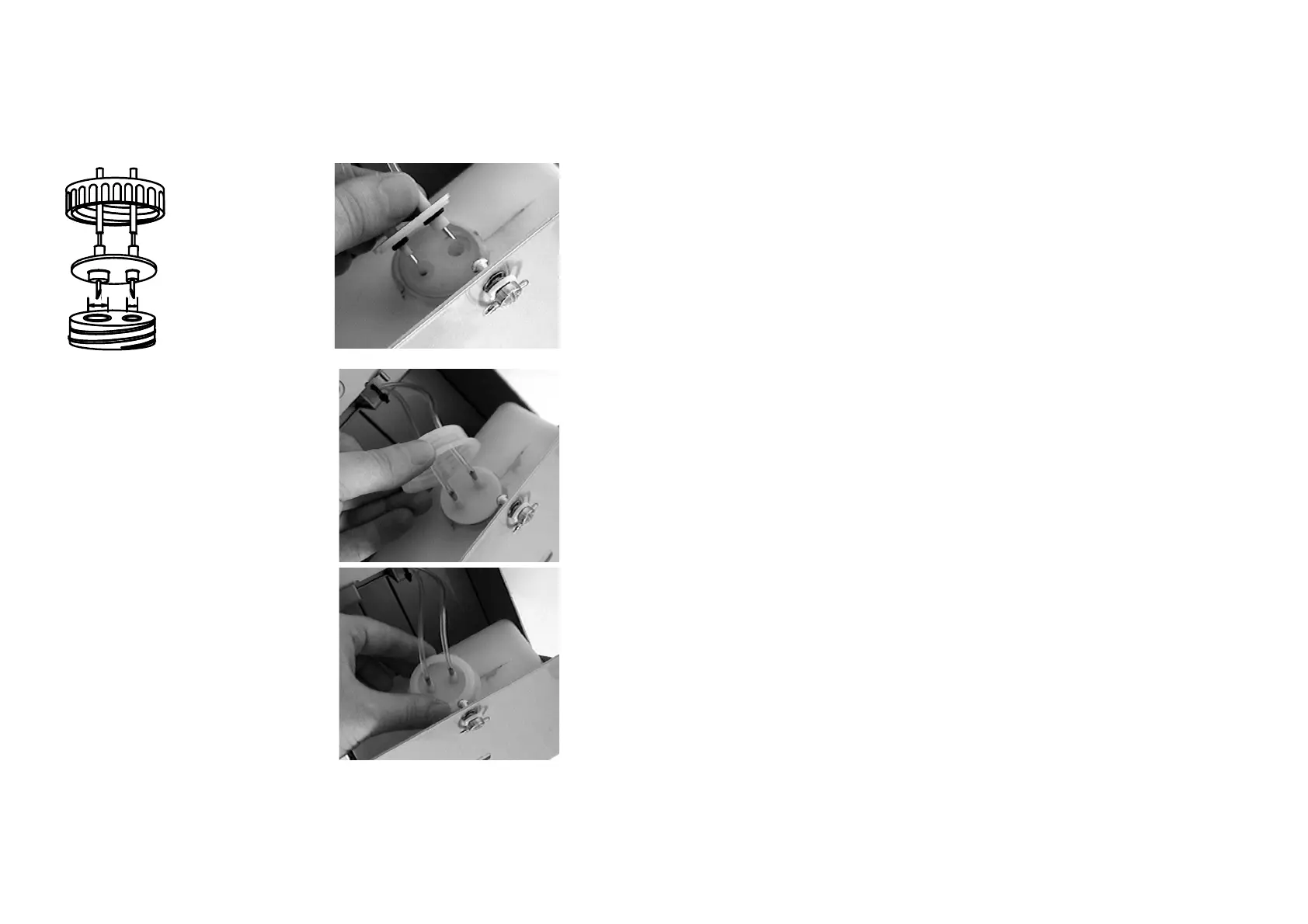

(3) Push the air and ink probes into the correct holes in the ink bottle,
puncturing the seals. Notice that the probes have different diameters which
must be aligned correctly with the holes in the bottle, otherwise damage
will result if the cap is forced on.
(4) Press the centre of the probe assembly
firmly with the thumbs to make sure
that both probes have pierced the
seals. Then screw the bottle cap in
place.
(5) Tighten the bottle cap firm (hand
tight only). Arrange the air and ink
tubes so that when the door is shut
they cannot be trapped in the door
mechanism. Switch the printer on
(activating the air pump) before
closing the door and check the cap
thoroughly for leaks.
Note: Ensure that the
large and small
probes go into the
correct holes.
