INSTALLATION
36 77091 Issue 2 November 2003
(8) Thread the slide bar onto the
horizontal arm of the vertical
mounting bracket so that the upper of
the two clamping plates (H) is inside
the slide bar. Use the two overhang
adjustment screws (I) to hold the
print head securely in position.
Print head overhang can be adjusted by
sliding the slide bar in and out, or by moving
the fixing screws to different holes in the
print head or slide bar. The vertical
mounting bracket can also be rotated 180° to
extend or shorten the overhang. The vertical
position of the print head can be adjusted
using the height adjustment knob.
Voltage Setting
WARNING: DANGER OF ELECTRIC SHOCK. Disconnect the
printer completely from the mains supply before
attempting any internal access or making any
adjustments to the PSU.
Before switching the printer on, ensure that the internal power setting is set to
match the local electricity supply - either 240v, 220v or 110v AC. The printer
will operate at either 50Hz or 60Hz.

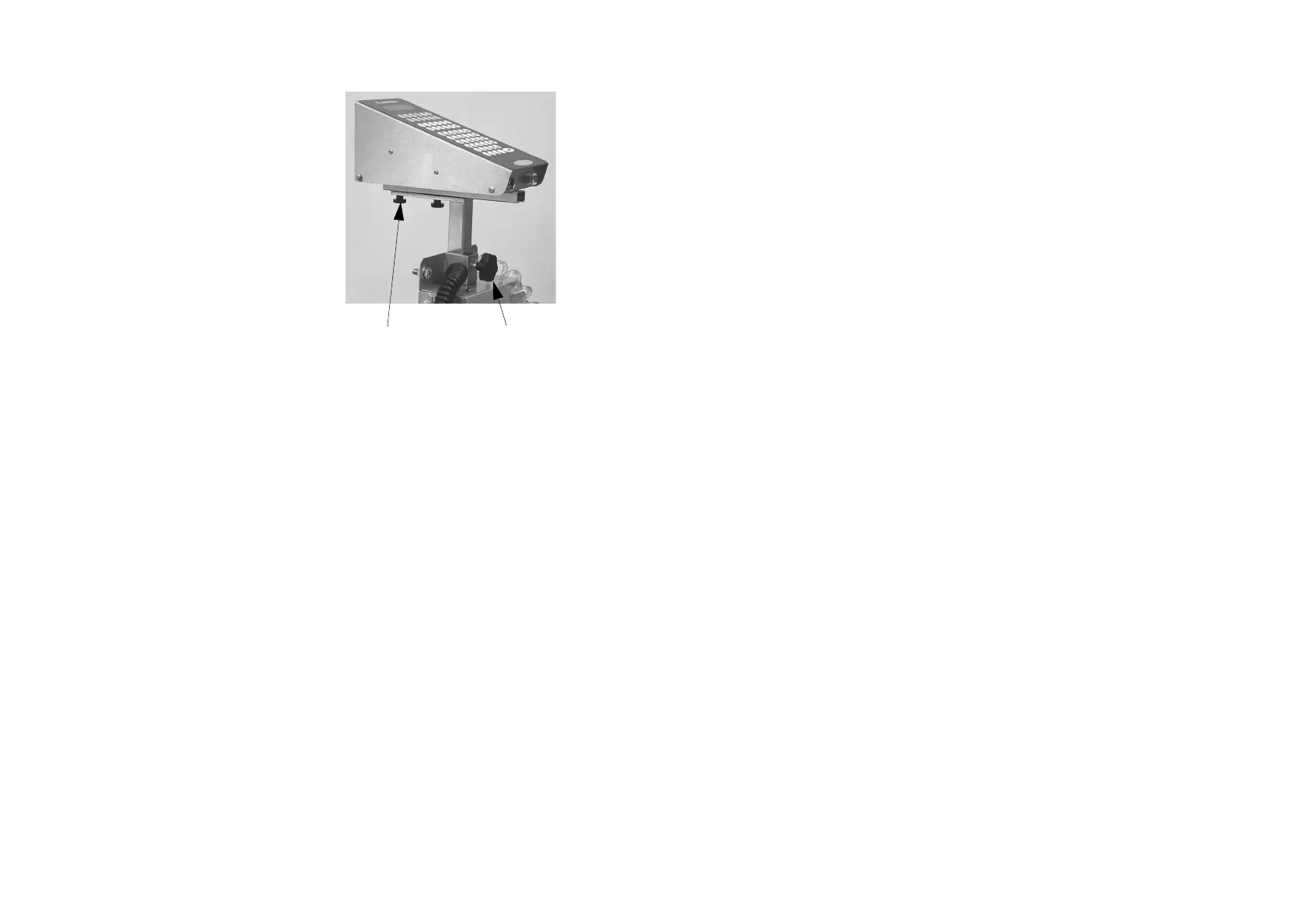

Overhang
Adjustment
Screws
Height
Adjustment
Knob
