SYSTEM OVERVIEW
77091 Issue 2 November 2003 21
The Base Unit
Two different sizes of base unit have ink
containers of different capacities.. The C7
and C16 printers are supplied with a one litre
base as standard. The C34 is supplied with a
three litre base as standard. The larger base
with its larger capacity ink container, allows
extended operation between ink changes.
One Litre Base
In the one litre base the ink bottle is located
inside the base unit, accessed by rotating the
door catch ring on the front of the unit 90°,

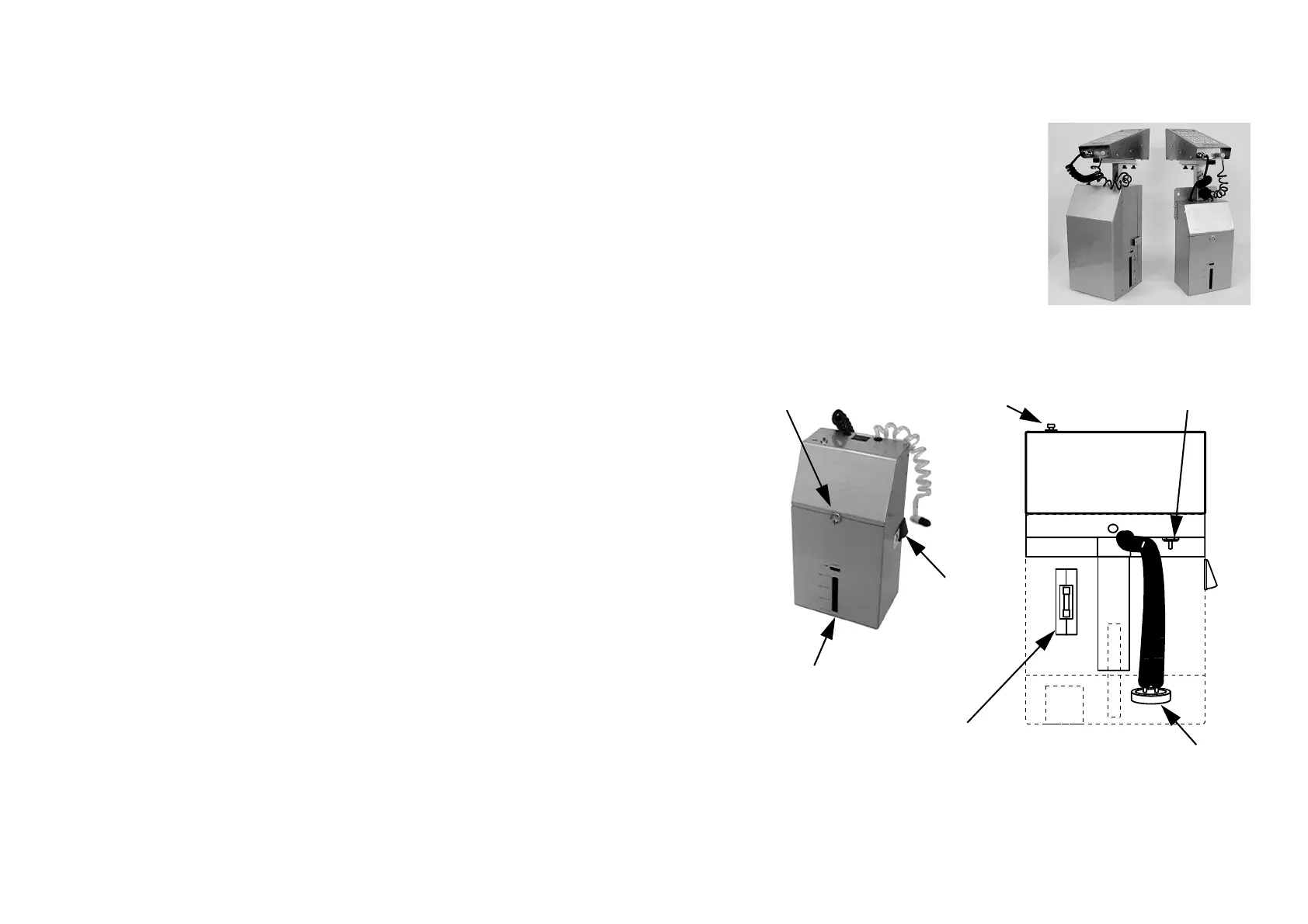

allowing the door to swing down. The diagram below shows the layout of the ink
bottle compartment behind the door.
Door
Catch
Ink Level
Window
Power
Switch
Ink Level
Indicator Lamp
Ink Cap
Pressure Release
Valve
Ink Level Indicator
Switch
