SYSTEM OVERVIEW
22 77091 Issue 2 November 2003
To check the level of ink in the bottle, press
the red push-button on the top of the base
unit. This switches on the ink level indicator
lamp inside the unit. The light from the
lamp shines through the ink bottle. The
remaining ink can be seen through the ink
level window at the front of the base unit. (If
the unit has been moved, allow the ink to
settle before checking the ink level.) It can
then be seen when the ink bottle should be
replaced.
Power is supplied to the printer by the mains
input plug located on the bottom face of the
base unit, just behind the hinged door. This
is the only input that is required for
operation of the printer.
The power switch is located on the right side
face of the base unit. When power is turned
on, this switch will illuminate. A serial
number label near the switch will indicate
the supply voltage to which the printer unit
is set. Before switching on the printer,
ensure that the supply matches the voltage
stated on this label. If the unit is set to the
wrong voltage, before switching on the
printer, change the voltage settings inside
the base unit as given in the
INSTALLATION chapter of this manual.

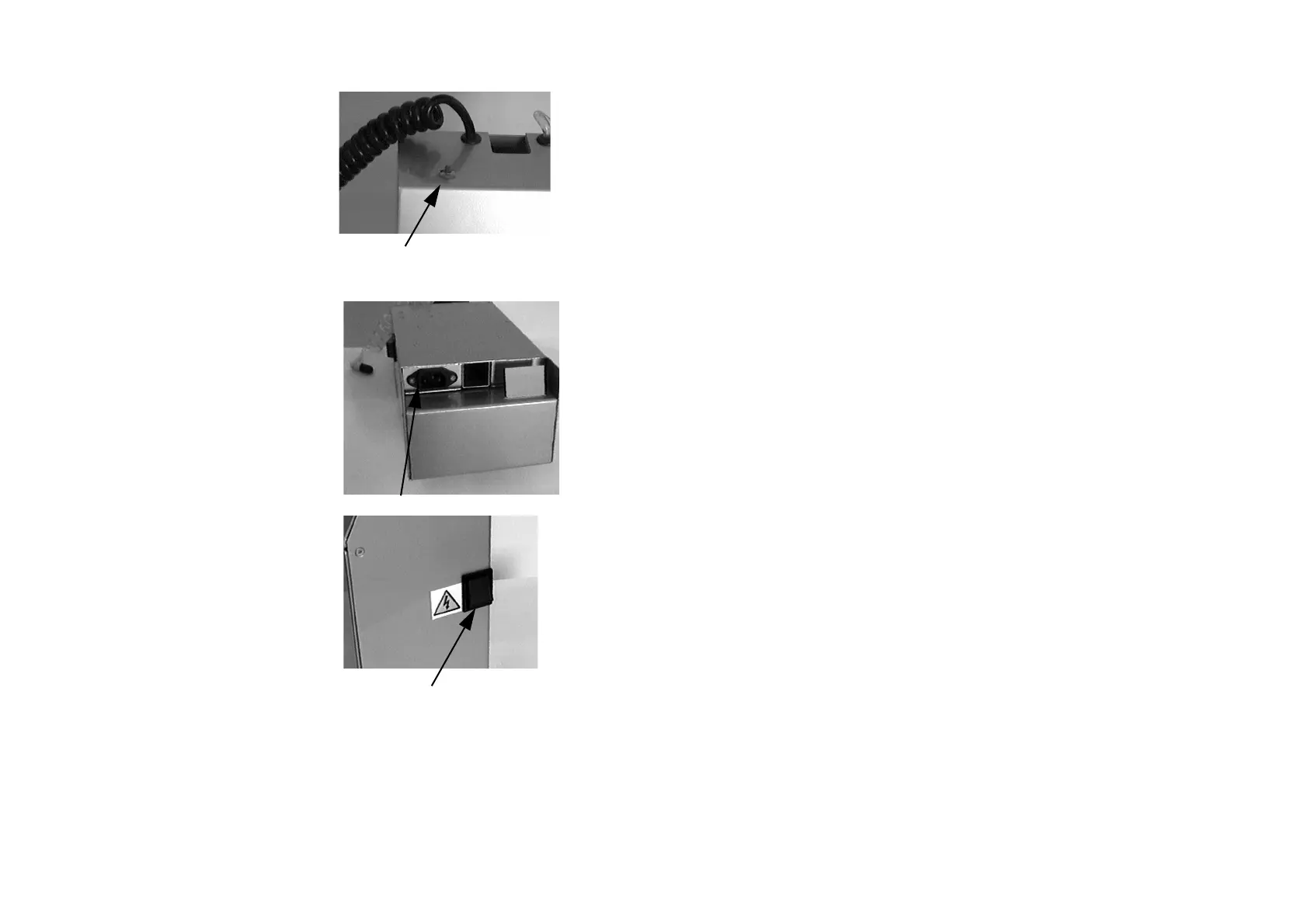

Ink Level Indicator
Switch
Power Input
Power Switch
