SYSTEM OVERVIEW
77091 Issue 2 November 2003 23

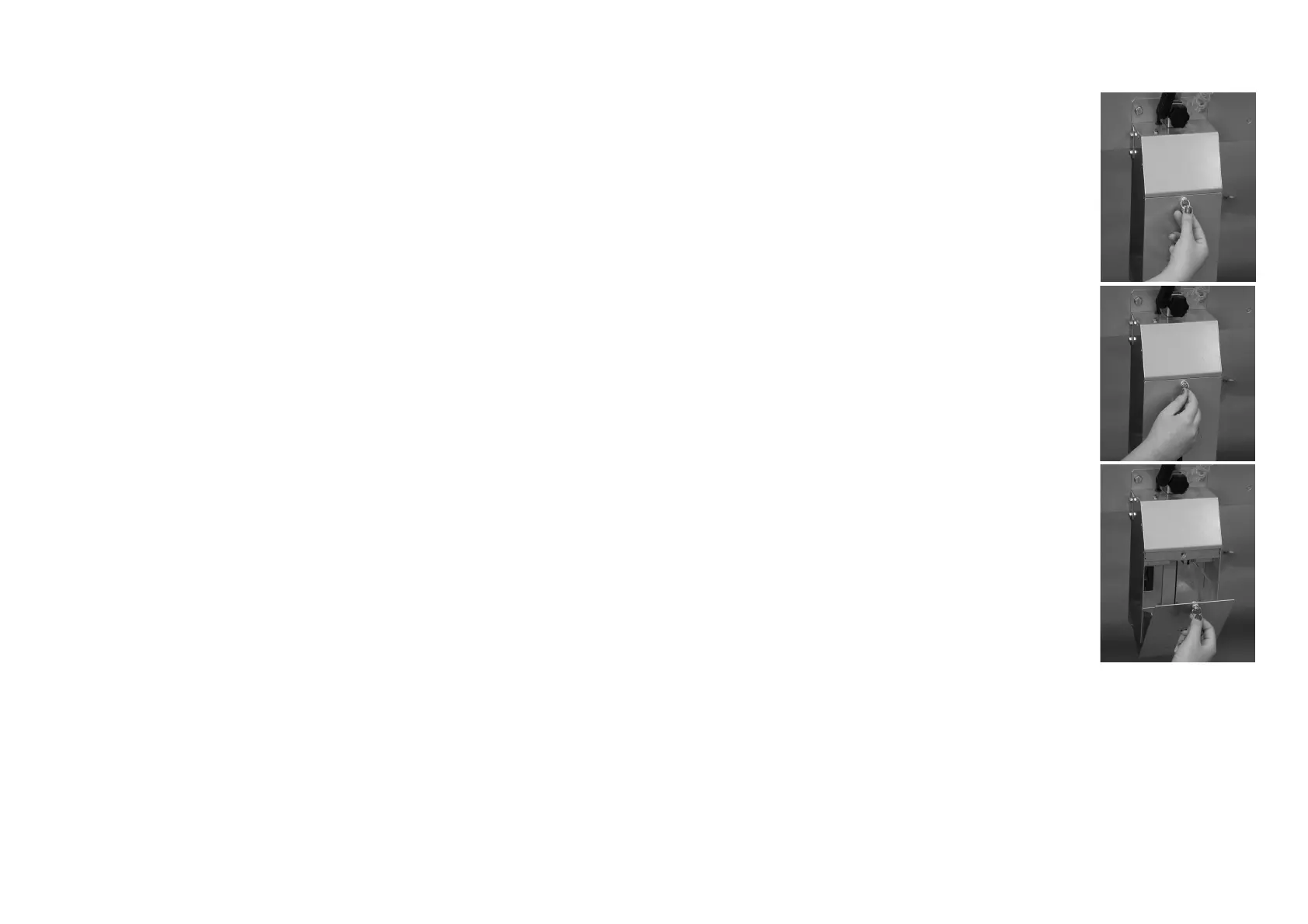

To open the ink compartment door, grasp
the door catch ring and rotate it 90° anti-
clockwise to disengage the catch. The door
will then fall forward on its hinge allowing
access to the interior. A stopper beneath the
door ensures that it will not trap the mains
cable.
To close the ink compartment door, reverse
this procedure. Push the catch in while
rotating it 90° clockwise until it holds firm.
Take care not to trap the ink and air lines
when closing the door.
