OPERA
TION
EPT031055 Issue
2 September
2017
3-5

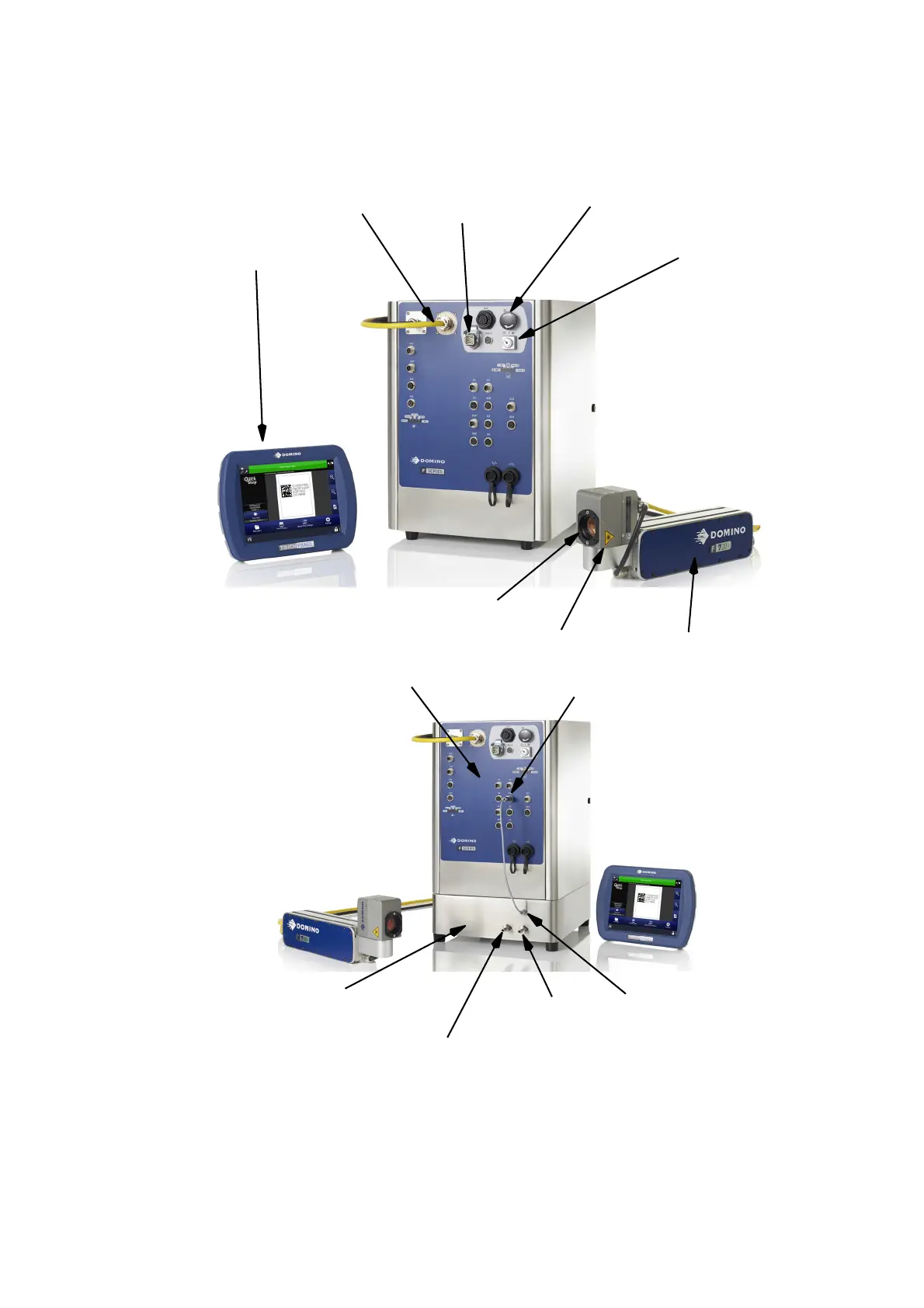

F-SERIES LASER MARKING S
Y
S
TEM
Optional
T
ouchpanel
Laser Key
Switch
On/Off Switch
Laser L
ens
Scanner
Head
Mains
Connect
or
Laser Head
Laser Fibre
Controller
X28 Connec
tor
Wate
r
In
(Cold) (max. 5 bar
)
Wate
r
Ou
t
Wate
r
T
o La
s
er
(Hot)
F
actory f
itted option f
or
water cooling
X28 Connec
tion
106
108
Table of Contents
Table of Contents
19
General
21
Designated Use
22
Safety Symbols
24
Specific Dangers
25
Electrical Energy
25
Laser Radiation
25
Protective Safety Goggles
26
Aiming Beam / Pilot Laser
26
Harmful Dust and Vapours
27
Touching the Lens
27
Touching the Scan Head Mirrors
27
Noise
27
Crushing
27
Laser Marking Process
28
Water Cooling
28
Simmer Mode
29
Lifting and Moving the Controller
30
Laser Protection Window
30
Guarding
31
Access Guards
31
Visor Guards
31
Beam Stop Guard
32
Materials
32
Beam Delivery Cable (Fibre)
32
Interlock Switches
33
Emergency off
33
Guarding Labels
34
Specific Precautions During Maintenance or Repair Work
34
System Naming Conventions
35
Laser Warning and Information Signs
36
Location of Controller Signs
38
Location of Laser Signs
38
Unpacking and Inventory
41
Assembly
41
Environmental and Storage Conditions
41
Handling the Equipment
41
Laser Head Assembly
42
Scanner Fields and Distances
43
Removal of the Transport Locking Device
43
Control Unit
44
Power Supply
44
Installing the Controller Cables
46
Touchpanel
47
Electrical Connections
49
Connections for F-Series
51
USB 1.1 Port
52
Ethernet Connections
52
X2 Connector Schematic - Beacons
53
X3 Connector Schematic - Product Detector and X6 Connector Schematic - Shaft Encoder
55
X4 Connector Schematic - Machine Control
58
The Compile OK Signal
61
X7 Connector Schematic - Fume Extraction
64
X23 Connector Schematic - RS232 COM1
66
X28 Connector Schematic - Air Chiller Control
68
X58 Connector Schematic - Power Extension
70
X59 Connector Schematic - Ethernet 2 - Remote Panel Interface
71
X29 Connection BCP7 Controller - Fibre Laser
73
X69 User Interlock / Start Without Shutter
74
X69 User Interlock / Start with Shutter
78
Timing
81
Shutter Control Modes
82
Standard Mode
82
Static Mode
82
Setup the Shutter Control Mode
82
Safety of the Laser System
84
Without Shutter
84
With Shutter
85
Performance Level According to en 13849
88
Without Shutter
88
With Shutter
88
Shutter Timing
89
Connector Overview
90
Fume Extraction System
91
Guarding
92
Initial Operation
92
Initial Setup Wizard
93
Positioning Code on the Product
94
Achieving Maximum Line Speed
96
Making Marks Longer than One Field Size
99
Rapidscan Technology
100
Product Distance and Print Start - Ignore Distance
102
F-Series Laser Marking System
107
Controls and Indicators
108
Touchpanel and Interface
108
Controls
108
Indicator Lamps Controller
109
Indicators Lamps Fibre Laser
111
Switching on and off
114
Switching on the Control Unit
114
Switching on the Laser Head
114
Switching off the Laser Head
115
Switching off the Control Unit
115
Switching on a System with Shutter
116
Important Additional Shutter Information
117
F-Series Connectivity
118
Webserver
119
Quickstep Interface
120
Home Screen
120
Status Bar
121
General Functions
122
Initial Setup
123
Display Settings
123
Setting the Master Clock
123
Production Line Setup
124
Security Management
125
Security Mode
126
Add/Change User
126
Delete a User/Change Password
126
Groups
126
Specify Password Policy
127
Electronic Signature
127
Global Print Settings
128
Print Field Offset
128
Message Options
128
Marking Engine
128
Setup Aiming
128
Aiming Beam and Shutter
129
Content/Shift Codes
130
Clocks/Dates
130
Creating and Editing a Message
131
Add Text
131
Unicode
132
Common Unicode Characters
132
Input Method Editor (IME)
132
General Property Values
133
Conditional Printing
134
Text Object Properties
135
Add a New Barcode
136
Barcode Object Properties
136
Add an Image
137
Image Object Properties
137
DXF Import
138
Properties
138
Add a Shape: Arc/Rectangle
139
Arc Object Properties
139
Rectangle Object Properties
139
Add a New Variable
140
Add a New Clock
141
Add a New Counter
141
Add a New Prompted Field
143
Add a New Link
144
Add a New Script
145
Add a New Coding
146
Add a New Shift Code
146
Add a New Text Insert
147
Add a New Text Variable
148
Add a New Text Link
148
Undo/Redo
149
File
149
Parameter Set
150
Standard Parameters
152
Default Parameters
152
Parameter Ranges
152
Edit
153
Add
153
Move
153
Zoom
154
Re-Order Visual Items
154
Item Selection List
154
Resize
154
Message Store and File Management
155
Selecting an Existing Message
155
File Manager
155
Backup and Restore
156
Backup
156
Restore
156
Update
157
Defaults
157
Printer Status
157
Advanced Settings
158
Configuration Files
158
Install Options
158
Diagnostics
159
Status
159
Logs
159
Audit Trail Log
159
Status Log
159
Alert Configuration
160
Configure Alerts
160
Ranged Alerts
160
Io Port
160
Assignment
160
Test
161
Message Select
161
Printer Network
162
Ethernet
162
Multi-Head
162
Serial
162
Advanced
162
System Information
163
Overview
163
Software Versions
163
Hardware Versions
163
User Interface
164
Printer Connection
164
Language & Keyboard
164
Network
164
Versions Information
164
Initial Setup Wizard
165
Control Unit
169
Control Unit with Cooling Option
169
Laser Unit with Scanner Head
170
Options for Use
171
F-Series Laser Marking System
171
Performance Data
171
Controller
172
Power
172
F-Series Laser Marking System
173
Installation Dimensions
174
Touchpanel
180
Touchpanel Dimensions
181
Shutter
182
Checking Fans and Air Vents
185
Control Unit Fans
185
Cleaning the Lens
185
Laser Protection Window
186
General Cleaning
187
Service: Replacement of Components
187
Applications Without Shutter
187
Applications with Shutter
187
Fault Finding
188
Status Messages and Suggested Actions
189
System Status Messages
189
Replacing the Lens
205
Changing the Fuses
206
Main Power Fuses F1 and F2
206
Laser Power Supply Fuse, Label F3
206
Fan Power Supply Fuse, Label F4 and F5
207
Changing the Pc-Cmos Setup Battery
208
High Voltage During Maintenance
208
Status Leds
209
Touchpanel Buffer Battery
211
Fume Extraction System
212
General Notes
212
Recommended Routine Maintenance
212
Daily
212
Weekly
212
Annual
212
