Door Controls DC One User Manual

5. WIRING OF ACCESSORIES
· Complete all wiring. Refer to the wiring diagrams in Sections 11 and 18. Be sure to complete
the wiring for any accessories that may be required as well:
· Activation Sensors
· Safety Sensors
· Safety Beams
· On-O󰀨 Switch
· Emergency Breakout Switch
· Electric Carriage Lock (accessory)
· Reduced Opening Switch (accessory)
· 1-Way Switch (accessory)
6. DRIVE BELT AND BRACKET INSTALLATION
· Upon completion of all wiring, the drive belt, related brackets, and idler pulley may be installed.
Refer to the detailed dimensions drawing that came with the package to determine all mounting
locations. When complete, install the drive belt and tension to result in approximately 1" to 2"
deection overall up and down at the center of the greatest span between clamp and pulley. The
belt may need to be cut to the correct length. Use a strong pair of wire cutters to make a clean
cut.
· Check to make sure there are no wires that could be potentially caught by the moving parts.
With the belt installed and tensioned, move the doors manually to their full open and then full
closed position and ensure that they slide without biding or obstruction.
7. CONNECTING POWER
· Connect and apply main power to the control.
· Perform a factory reset - Refer to Sections 12 and 13.
· Press the TEST button on the DC One control to trigger an activation cycle.
· When the learn cycle is complete, normal operation will resume according to default values set
in the control. Fine-tuning of the control may be necessary at this point. Other than door handing
and breakout polarity, the most common adjustments are for speed, force and time. Although
there are more adjustments if needed. See Sections 12 & 13 for further instructions.
8. WALK TEST
· Check all functions to ensure proper operation
· REMEMBER - Even if a door is designated for
1-way tra󰀩c, a secondary activation sensor is still
required at the side not intended for approach.
The activation zone must extend to at least 24″
out from the face of the door
· With the door switch o󰀨, make sure the doors are
fully closed. Check alignment of doors for proper
weather-seal and ensure that door locks properly.

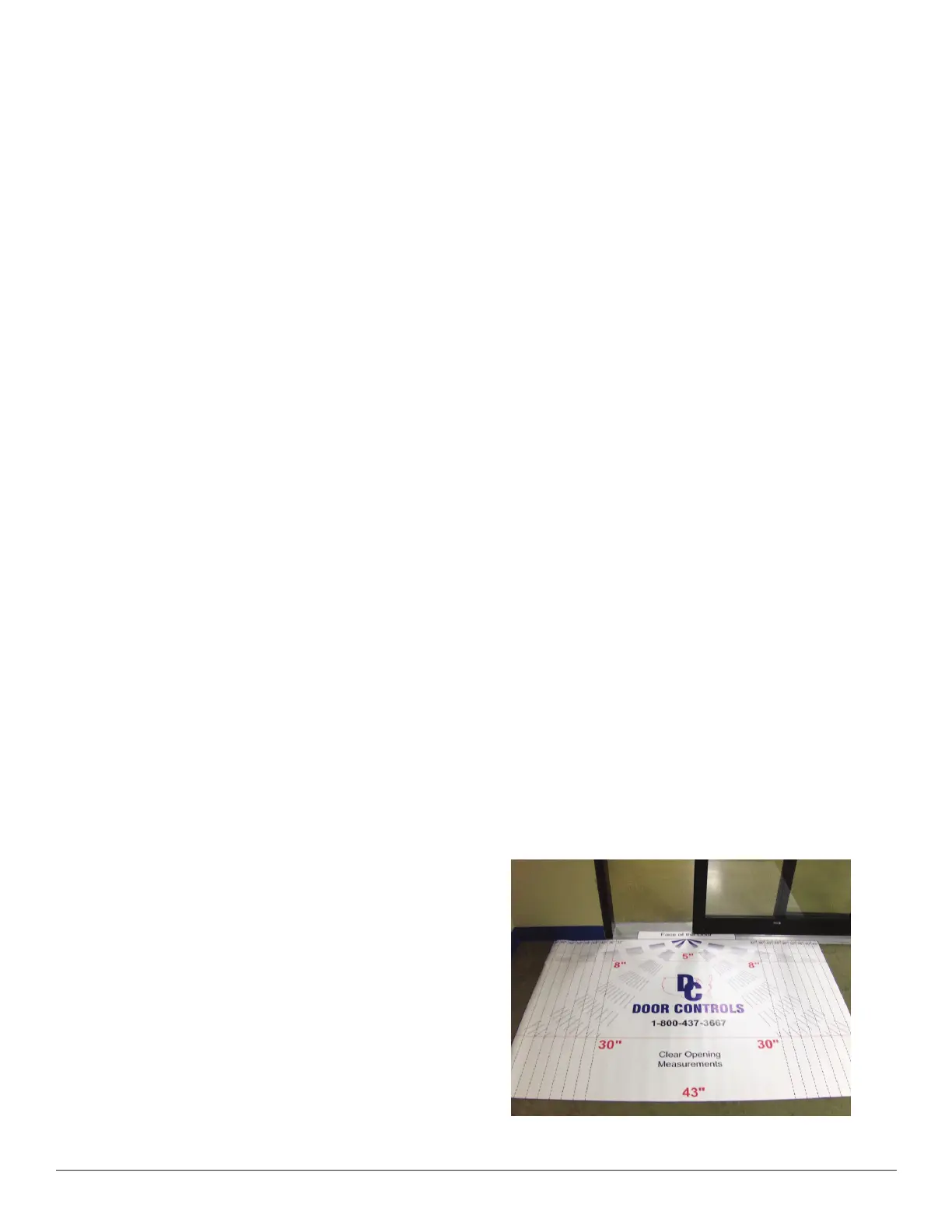

· Use walk-test aides such as the dimensional mat
shown below, to help outline key distances for
testing sensor patterns.
Installation Manual
DC One V3
321 VZ County Road 4500 · Ben Wheeler, TX 75754 · Phone: 800.437.3667 · Fax: 800.356.8858 · DoorControlsUSA.com
5
Rev050819
