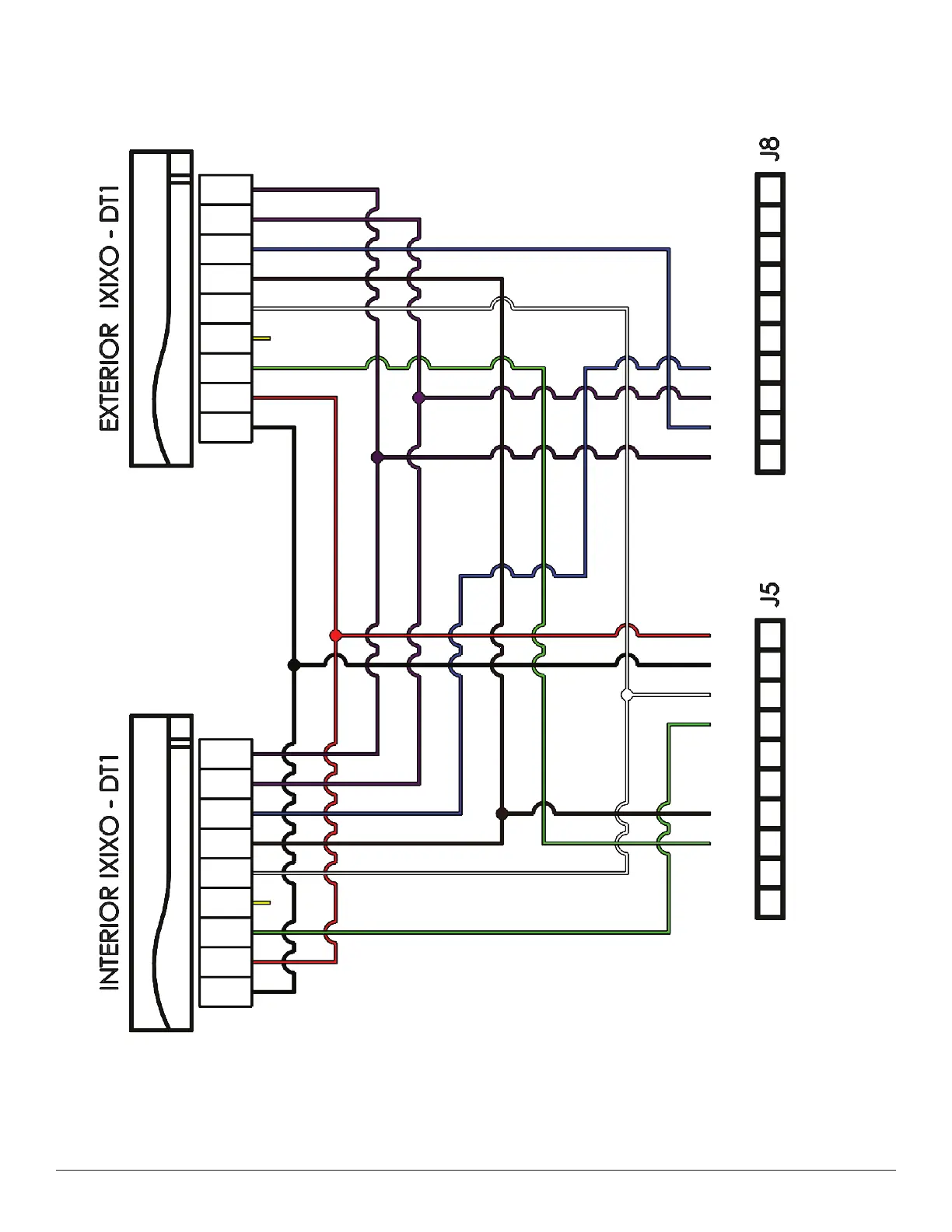

Door Controls DC One - IXIO DT1 Sensor Monitoring Schematic and Setup

24VDC
OUTER
COM +
24VDC-R
INNER
COM +
24VDC-R
SENSOR MON
EXT SAFETY
COM +
INT SAFETY
BROWN
GREEN
GREEN
WHITE
BLACK
RED
PURPLE
PURPLE
BLUE
BLUE
TEST
PURPLE
BLACK
POWER
BLACK
POWER
RED
POWER
RED
POWER
GREEN
NO
GREEN
NO
YELLOW
NC
YELLOW
NC
WHITE
COM
WHITE
COM
SAFETY
BLUE
SAFETY
BROWN
SAFETY
BROWN
SAFETY
BLUE
TEST
PURPLE
TEST
PURPLE
TEST
PURPLE
24VDC
NC
NC
SENSOR SETUP:
Air: Output
Energ / NC
Test: ON
19. IXIO DT1 SENSOR MONITORING SCHEMATIC AND SETUP
Installation Manual
DC One V3
321 VZ County Road 4500 · Ben Wheeler, TX 75754 · Phone: 800.437.3667 · Fax: 800.356.8858 · DoorControlsUSA.com
20
Rev050819
Note: If door was installed prior to November 11, 2017
monitoring not required.
