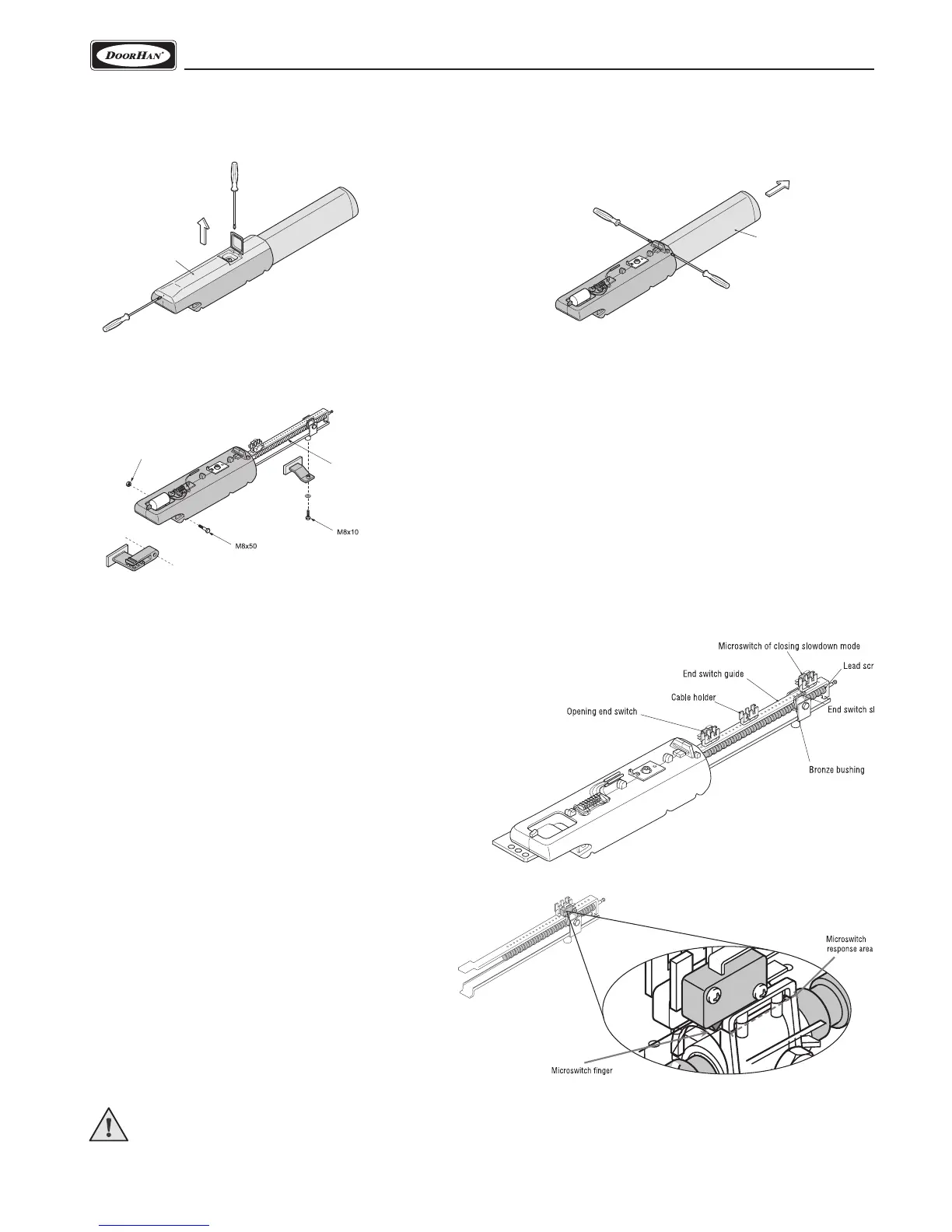

6. EXTREME POSITIONS ADJUSTMENT
6.1. PREPARATION
6.2. OPEN POSITION
1. Release the operator and put the gate leaf in fully
open posi tion.
2. Unscrew fastening of the opening limit switch.
3. Move the limit switch along the guide, until the
microswitch contacts with the slide.
4. Fix the microswitch.
Cover
Screw casing
Nut M8
Lead screw
3. Install the front and back brackets on the operator.
1. Unscrew 2 tapping screws and remove the cover. 2. Unscrew 2 tapping screws and remove the lead screw casing.
6.3. CLOSED POSITION
1. Put the gate leaf in fully closed position, which can
be determined by the mechanical stop.
2. Unscrew fastening of the closing microswitch.
3. Move the end microswitch along the guide until the
microswitch contacts with the slide.
4. Move the microswitch ahead until the microswitch
finger leaves response area.
5. Fix the microswitch.
WARNING! When the end positions are adjusted, make sure, that the limit switches work correctly: after pressing the
microswitch the gate movement should be stopped.
