6
OPERATOR INSTALLATION
WARNING! Before installation make sure, that the gate moves freely and it is possible to install the operator on the pole
and the leaf securely.
Operator installation procedures are given below in accordance with the gate opening direction.

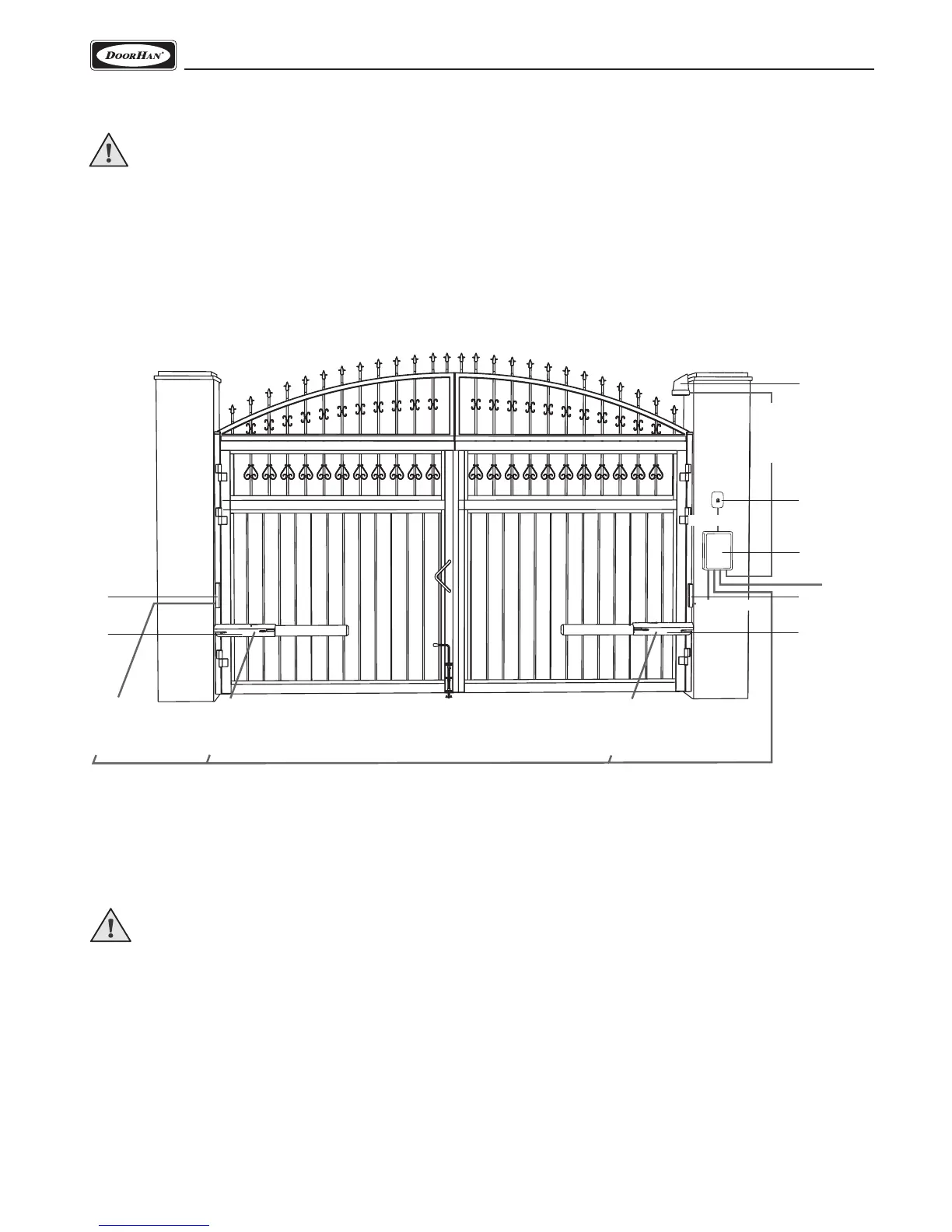

4.2. INSTALLATION LAYOUT
1
2
1
2
4
3
5
2 × 0,5 mm
2
3 × 1,5 mm
2
3 × 1,5 mm
2
4 × 0,5 mm
2
2 × 0,5 mm
2
2 × 1,5 mm
2
3 × 1,5 mm
2
(220–240 V)
WARNING! RISK OF INJURY!
Have a qualified technician lay the cables 220-240 V AC. The cables must be laid in protective corrugated tubes. Avoid
contact of cables and moving parts of the door. In case of supply cable damage, use the suitable type of the cable.
Cables needed for installation of the Swing-3000/5000 operator and accessories (if available):
cable 2 × 0.5 mm
2
(photocell transmitter, stepped control button);
cable 2 × 1.5 mm
2
(signal lamp);
cabel 4 × 0.5 mm
2
(photocell receiver);
cable 3 × 1.5 mm
2
(power supply);
the cables should be appropriately insulated.
1. Operators
2. Photocells
3. Control block
4. Keyswitch
5. Signal lamp
