ASSEMBLY
Preliminary checks
To ensure trouble-free operation, make sure that the gate (whether existing or yet to be installed) has the following specifications:
• max. length of each gate leaf in accordance with recomendations
• strong and rigid leaf frame
• smooth gate movement, with no stiff points
• hinges in good condition
• mechanical travel limit stops
If any welding or brazing has to be done on the gate, do this before installing the automation system. The good order of the structure directly
influences the reliability and safety of the automation system.
BEFORE BEGINNING YOUR INSTALLATION OF YOUR ATI SYSTEM, CHECK THE FOLLOWING:
* YOUR GATE PIERS OR POSTS ARE SUFFICIENTLY STRONG ENOUGH TO SUPPORT THE GATES AND OPERATORS AND THE GATES SWING
FREELY AND THERE IS NO FRICTION BETWEEN THE MOVING PARTS.

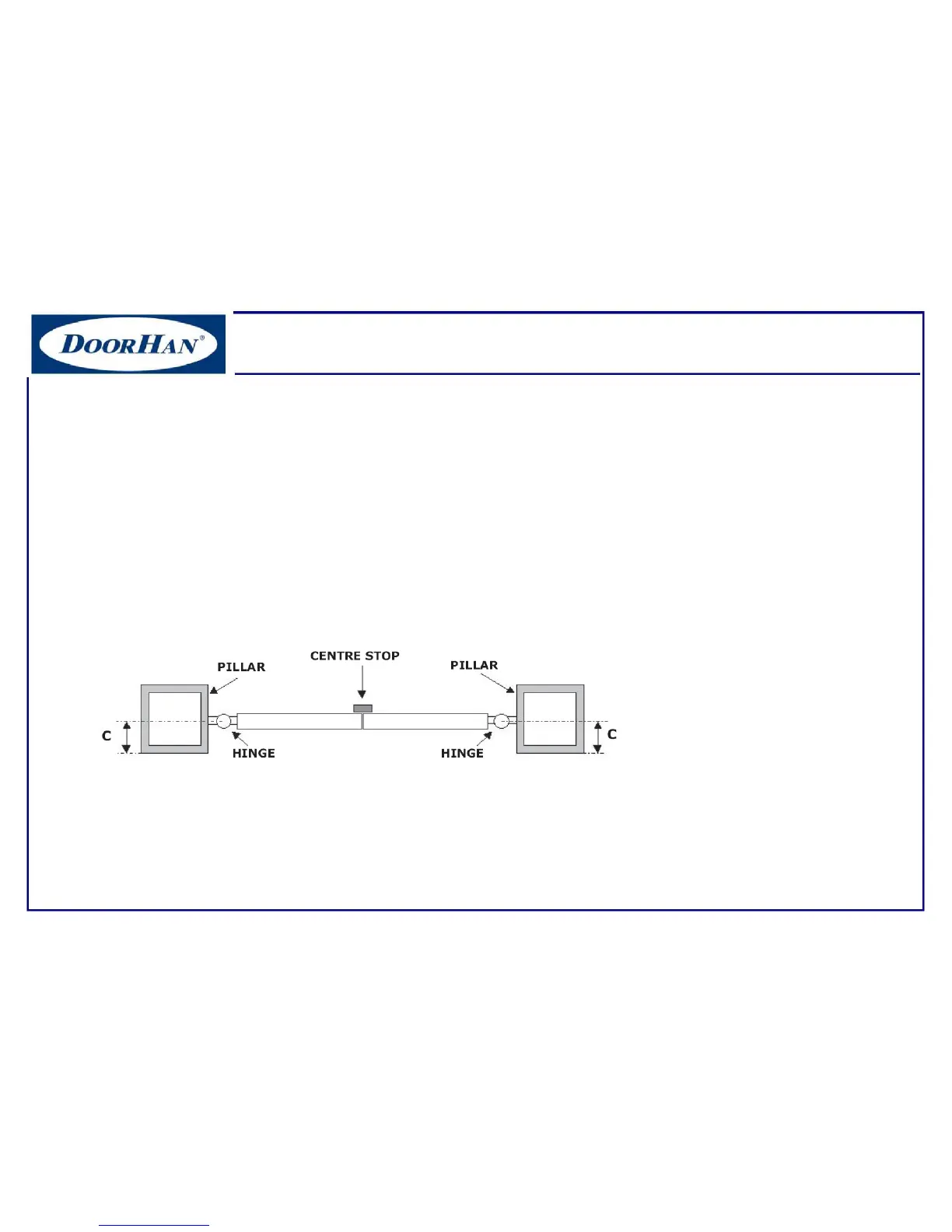

* MEASUREMENT C MUST NOT BE GREATER THAN THE VALUE SHOWN BELOW. IF THIS IS THE CASE, IT IS NECESSARY TO MODIFY THE PILLAR
SO THAT THIS MEASUREMENT CORRESPONDS.
Dimension C must be no greater than 120mm for 90 opening and
no greater than 70mm for a 130 opening.
* ENSURE THAT A GATE CENTRE STOP IS SECURELY CONCRETED INTO THE GROUND AND AS A GUIDE, THE CENTRE STOP
SHOULD NOT PROTRUDE OUT OF THE GROUND NO MORE THAN 65mm, IF IT IS MUCH HIGHER IT MAY CATCH ON THE UNDER-
SIDE OF A CAR.
