DoorHan SWING-5000 User Manual

1.6 - Attaching the Front Bracket

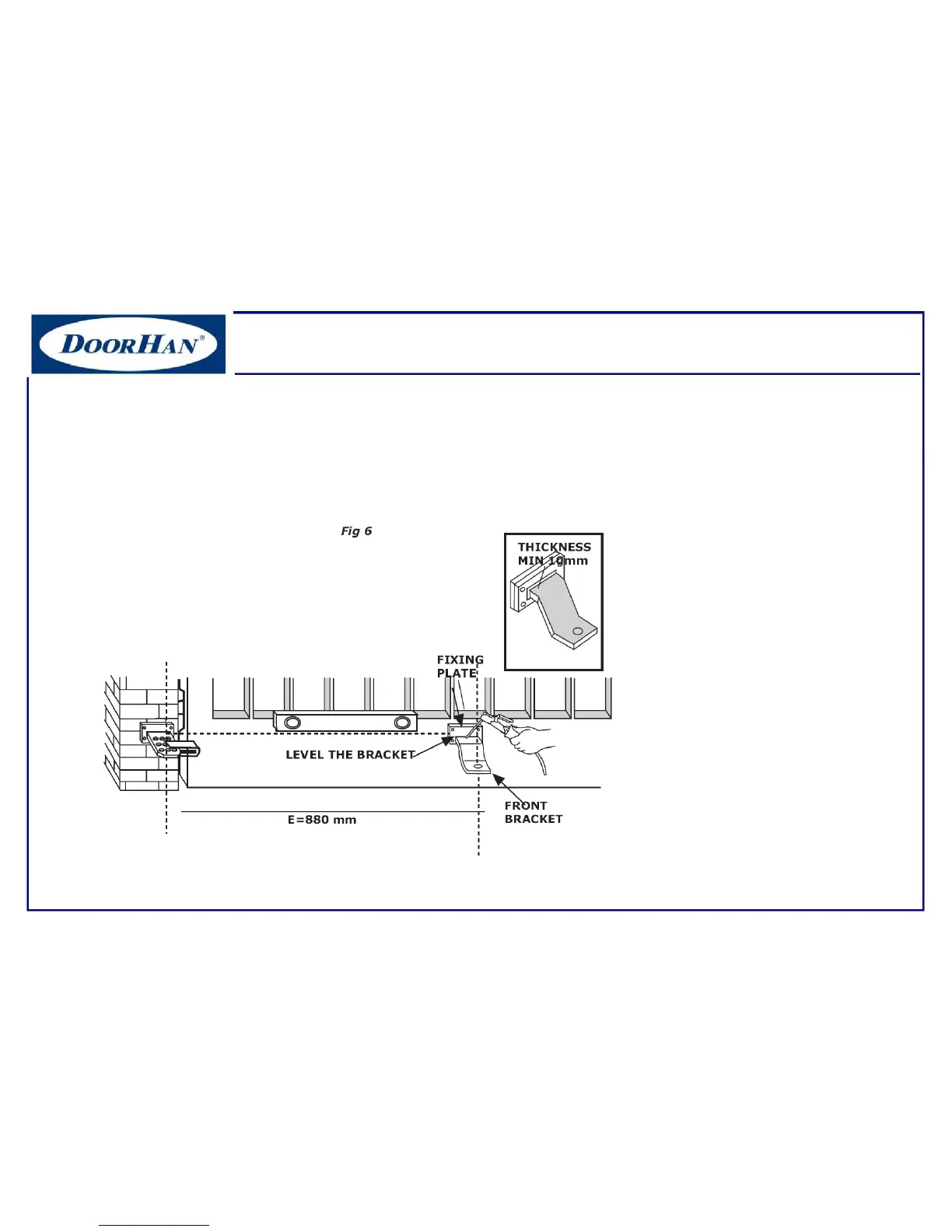

WITH THE GATE IN THE FULLY CLOSED POSITION WELD THE FRONT BRACKET TO THE FIXING PLATE THEN ATTACH IT TO
THE GATE. THE ANCHOR PLATE MUST BE HORIZONTALLY ALIGNED WITH THE REAR BRACKET MOUNTED ON THE PEIR OR
POST ENSURING DIMENSION IS OBSERVED.
N.B WHEN INSTALLING THE UNIT ON SPECIAL FRAMES, IT MAY BE NECCESSARY TO FIT ADDITIONAL SPACERS WITH A
MINIMUM THICKNESS OF 10mm IN ORDER TO PREVENT CONTACT BETWEEN THE OPERATOR AND THE GATE WING.
