DoorKing 1504-096 Installation And Owner's Manual

1506-065-K-6-17
8

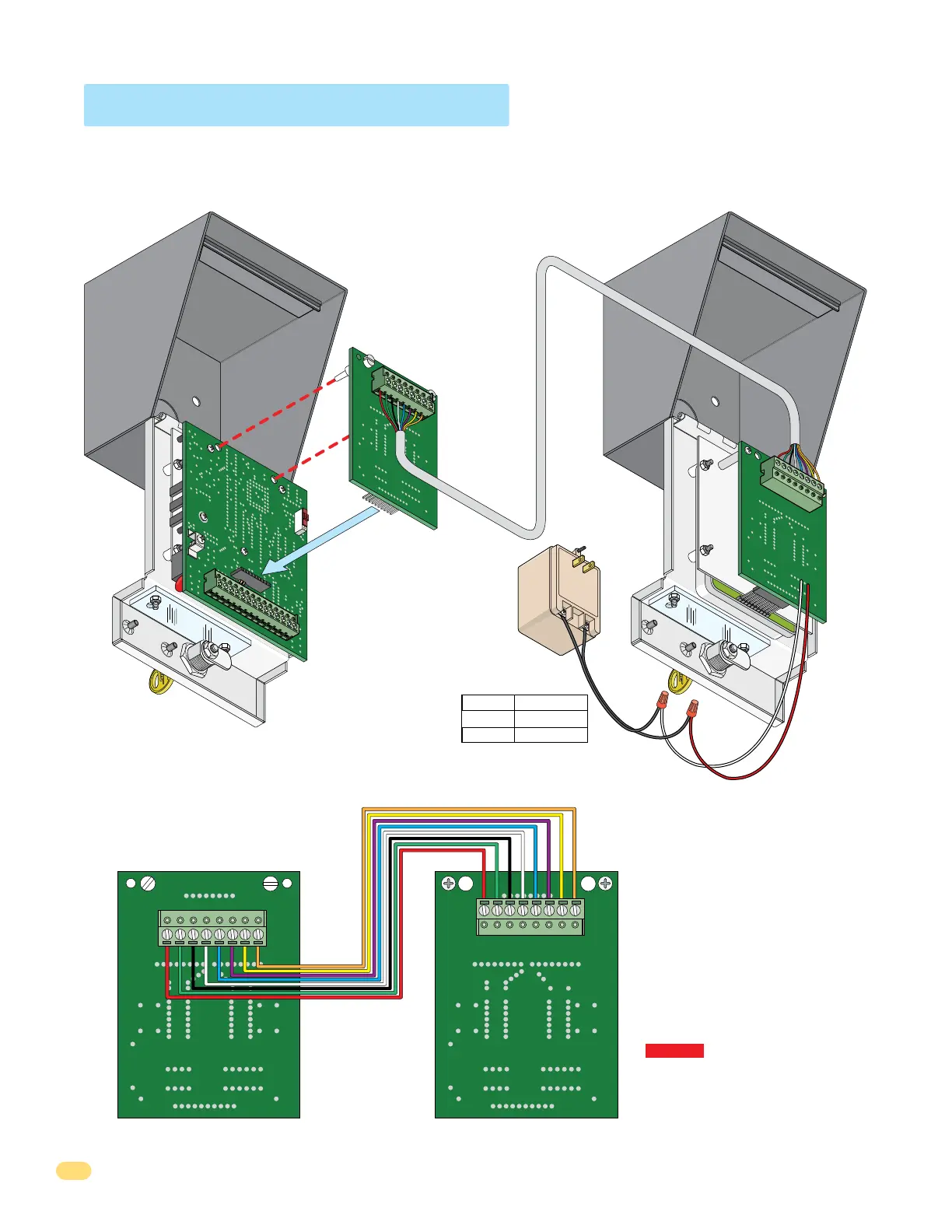

1.6 Secondary Keypad Wiring
1504/1506 Keypad Entry Device
1599 Secondary Keypad Board
Secondary Lighted Kepad
P/N 1506-081 Surface Mount (Sold Separately)
P/N 1506-091 Flush Mount (Sold Separately)
Secondary Lighted Kepad
Board must be
mounted as shown
Supplied 12 VDC
Power Transformer
Connect Red and White wires to power
transformer with supplied wire nuts.
Polarity does NOT matter
1 to 1
2 to 2
3 to 3
4 to 4
5 to 5
6 to 6
7 to 7
8 to 8
Note: The secondary keypad has NO relays!
Valid entry codes entered on the secondary keypad
will activate the relays in the 1504/1506 keypad.
8-Conductor
22 AWG
Shielded Cable
maximum
length 200 feet.
1234
56
7
89
10
11
12
13
14
MASTER
CODE
ON
1506-010
1
23
456
78
1599-010
12345678
1597-01
0
1599
Secondary
Keypad
Board
12345678
12345678
12345678
1597-010
8-Conductor 22 AWG
Shielded Cable.
Connect the shield to
ground.
I
n
put:
120
V
6
0
Hz
Output:
12
VAC
2
0
VA
Wire Size Max Distance
18 AWG
16 AWG
100 ft
200 ft
1599-010
ONLY the
1599-010
board can
be used.
Secondary Keypad Installation Note:
DO NOT mount the secondary keypad to a
moving gate, or immediately next to a gate
panel or pedestrian gate. Continuous
vibration from slamming gates and vibration
can cause damage to the system over time.
WARNING! If the secondary keypad is used
to activate a vehicular gate operator, it must
be mounted a minimum of 6 feet away from
the gate and gate operator, or in such a way
that the user cannot come into contact with
the gate or gate operator while using the
device.
