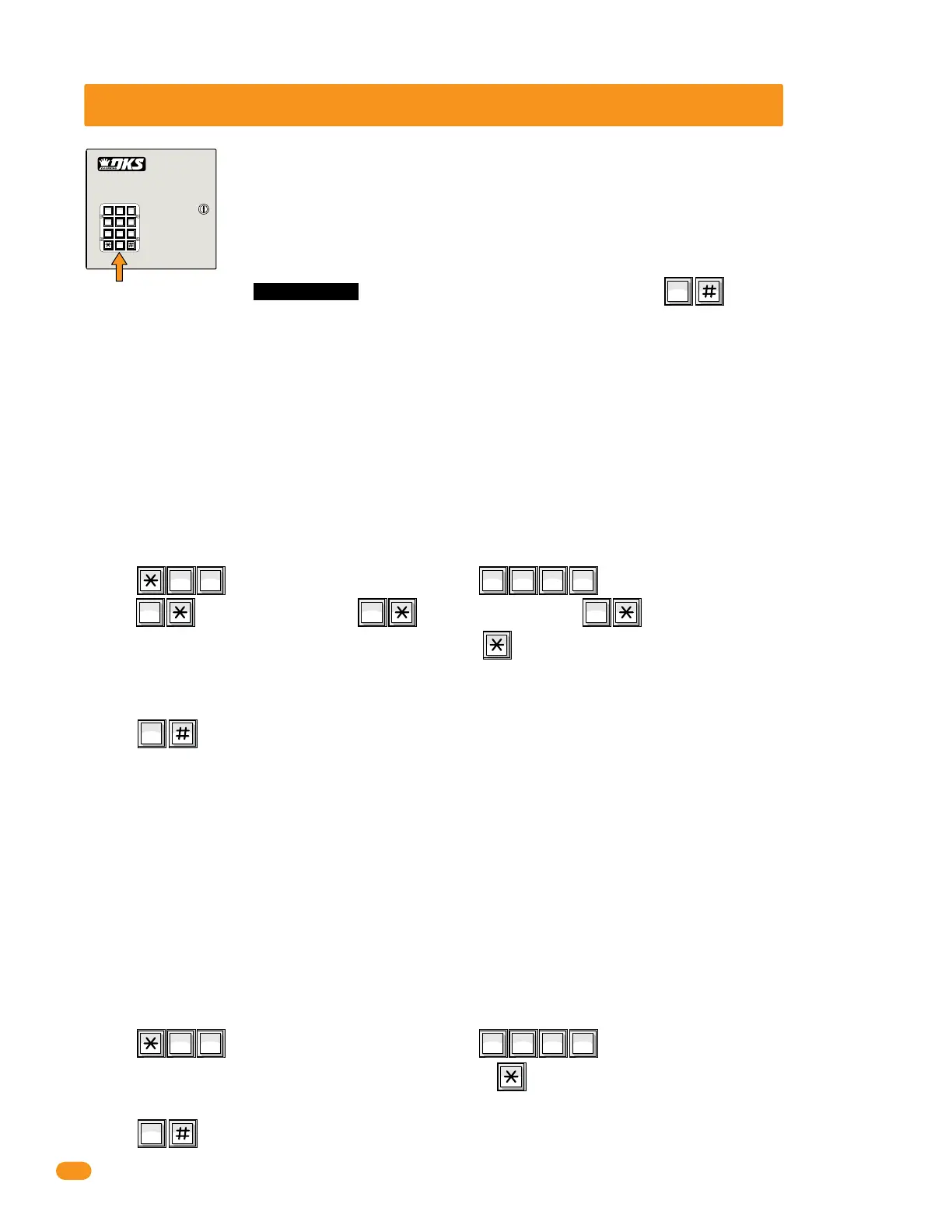

3.3 General Programming Using the 1838 Keypad
Proceed with the programming steps on the following pages ONLY IF PC programming WILL NOT be
used. The 1838 keypad may be used to program some features on the access controller but can be a
little tedious to use. We strongly suggest that you become familiar with the programming steps in each
feature you want to use BEFORE actually programming the 1838.
These steps will program Relay 0, Relay 1 and Relay 2 strike times. Strike times can be programmed from 1/4 second up to 99
seconds by entering the desired time in seconds as a two-digit number in step 3. If Expansion boards are going to be used with
this 1838, set Relay 2 strike time to 00 for Expansion boards 1-8. If more than 8 Expansion boards are being used, set Relay 1
strike time to 00 (for Expansion boards 9-16) and then set Relay 0 strike time for the desired time in seconds. In this applica-
tion, Relay 0 becomes the PRIMARY relay that will open the door or gate after the resident presses 9 on their telephone.
Factory setting for relay strike times are: Relay 0 = 01 (1 sec), Relay 1 = 01 (1 sec), Relay 2 = 01 (1 sec).
3.3.1 Relay Strike Time
This programming is only used when a DKS Remote Call Station is connected to the 1838. It sets the maximum time allowed
for conversation when the 1838 places a call to a phone number programmed under directory code 2, 02, 002 or 0002 (inputs
A-Z together). The talk time can be set from 1 second up to 255 seconds (4 minutes, 15 seconds) and is entered as a three-digit
number in step 2. The talk time set here DOES NOT affect the telephone numbers that are programmed under directory codes 0,
00, 000, 0000 (Input A) and 1, 01, 001, 0001 (Input Z). The talk time for these two directory code sets are factory set to the
maximum. Phone numbers programmed under these directory codes should be reserved for management or emergency
phone numbers that generally require longer conversations.
Factory setting for talk time = 060 (60 seconds).
3.3.2 Talk Time
1. Press and enter your four-digit MASTER CODE (beep).
2. Press (beep) to set Relay 0, OR (beep) to set Relay 1, OR (beep) to set Relay 2 strike time.
3. Enter the two-digit strike time in seconds (00-99), then press (beep).
(Example: 1/4 second - enter 00, 1 second - enter 01 etc.)
4. Repeat steps 2 and 3 to set other relay strike times.
5. Press together to end this programming sequence (beeeeeep).
? ? ? ?
3
0
0 1 2
0
1. Press and enter your four-digit MASTER CODE (beep).
2. Enter the three-digit talk time in seconds (001-255), then press (beep).
(Example: 1 second - enter 001, 20 seconds - enter 020 etc.)
3. Press together to end this programming sequence (beeeeeep).
? ? ? ?
8
0
0
Important Note: If you make a mistake while programming, press keys at the same time
to escape from programming no matter how much has been completed, then begin again at step 1.
0
1838 keypad is located
INSIDE enclosure.
7 8 9
4 5 6
1 2 3
0
To Next Page
