MicroController Control System Systems Operation
If the steering wheel is turned, hydraulic pressure
increases and then current increase too.
When this change is present the logics knows that
more hydraulic flow is required and will supply more
higher pulse ratio to TP. The pump motor speed will
increase.
When the lift lever is pulled, the logics will pulse the
pump MOSFET TP.
If the lift lever is pulled, the logic increase the pulse
with a higher percentage “on-time” according to the
analog voltage from valve control card.

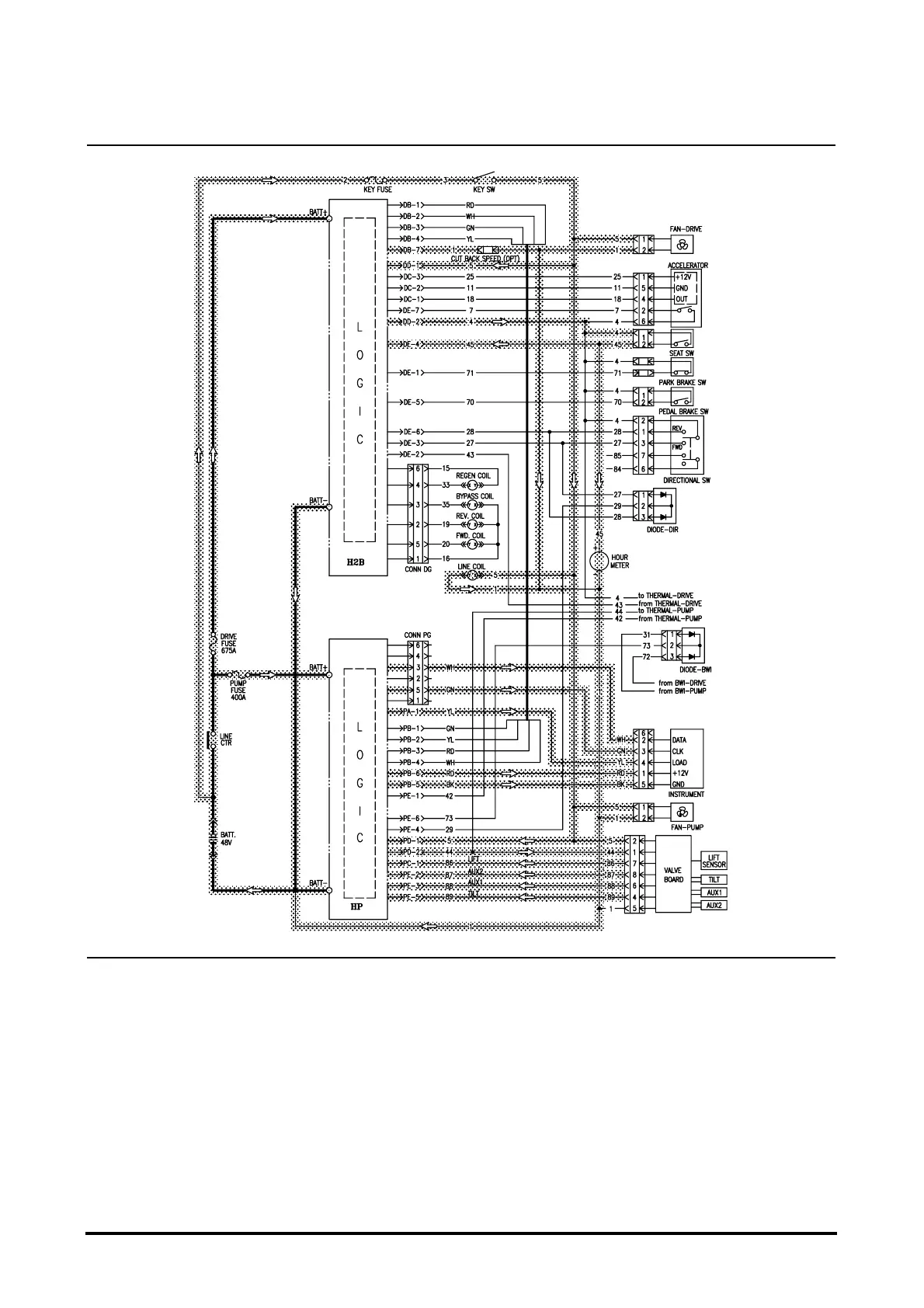

Control Circuit
Lift Circuit
To Next Page
