MicroController Control System Specifications

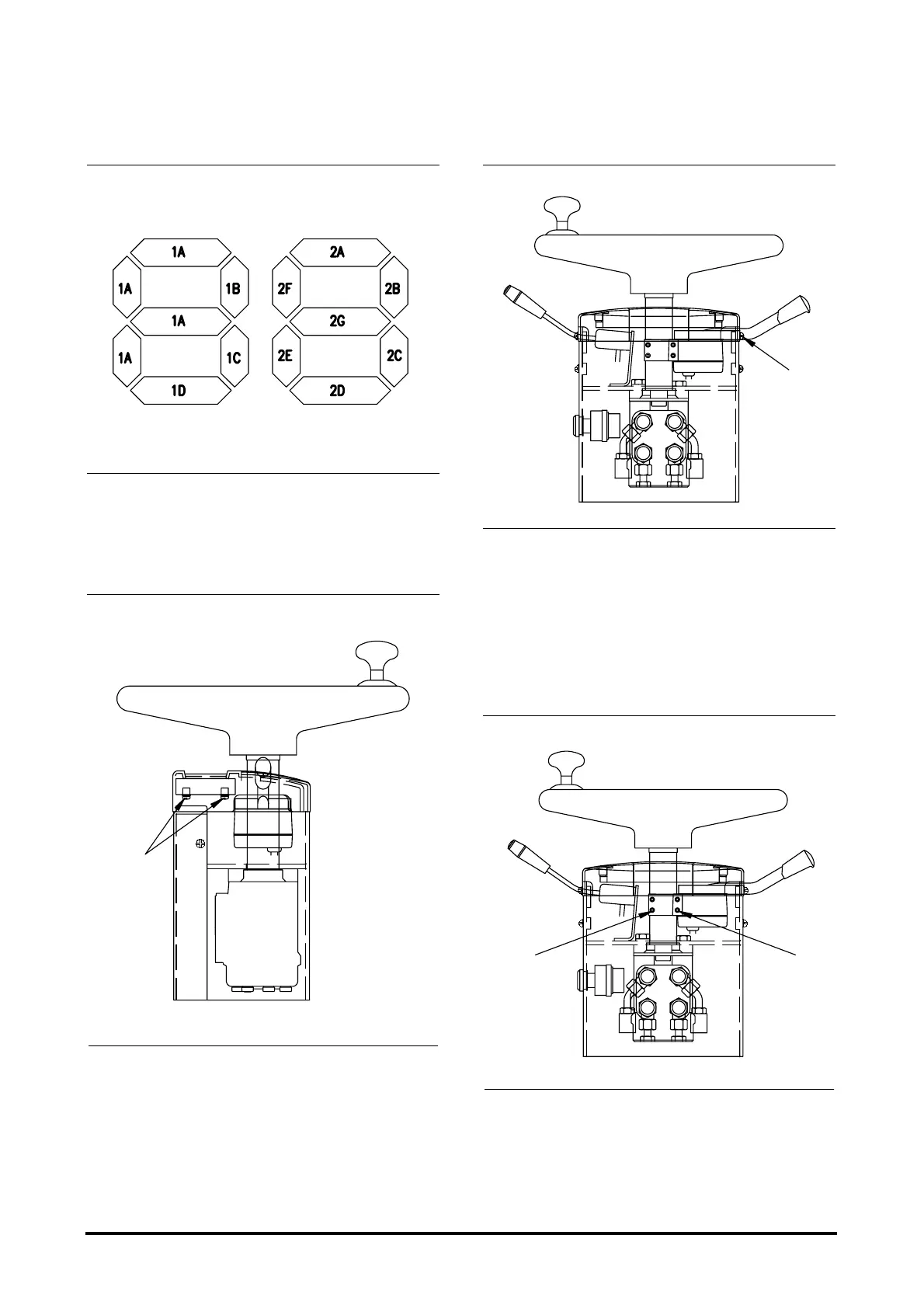

Display Layout
Instrument Panel
(1) Tighten screws that fasten the instrument panel to
a torque of
................................... 0.5 to 0.7
N
•
m (4 to 6 lb
•
in)
1
Console
(1) Tighten bolts that fasten the cover to a torque of
...............................1.5 to 2.5
N
•
m (13 to 22 lb
•
in)
Direction Switch
(1) Torque bolts that hold bracket to steering
column to................2.8 to 3.4
N
•
m (25 to 31 lb
•
in)
(2) Torque bolts that hold bracket to switch to
...............................3.4 to 3.9
N
•
m (31 to 35 lb
•
in)
1
1
2
