MicroController Control System Systems Operation

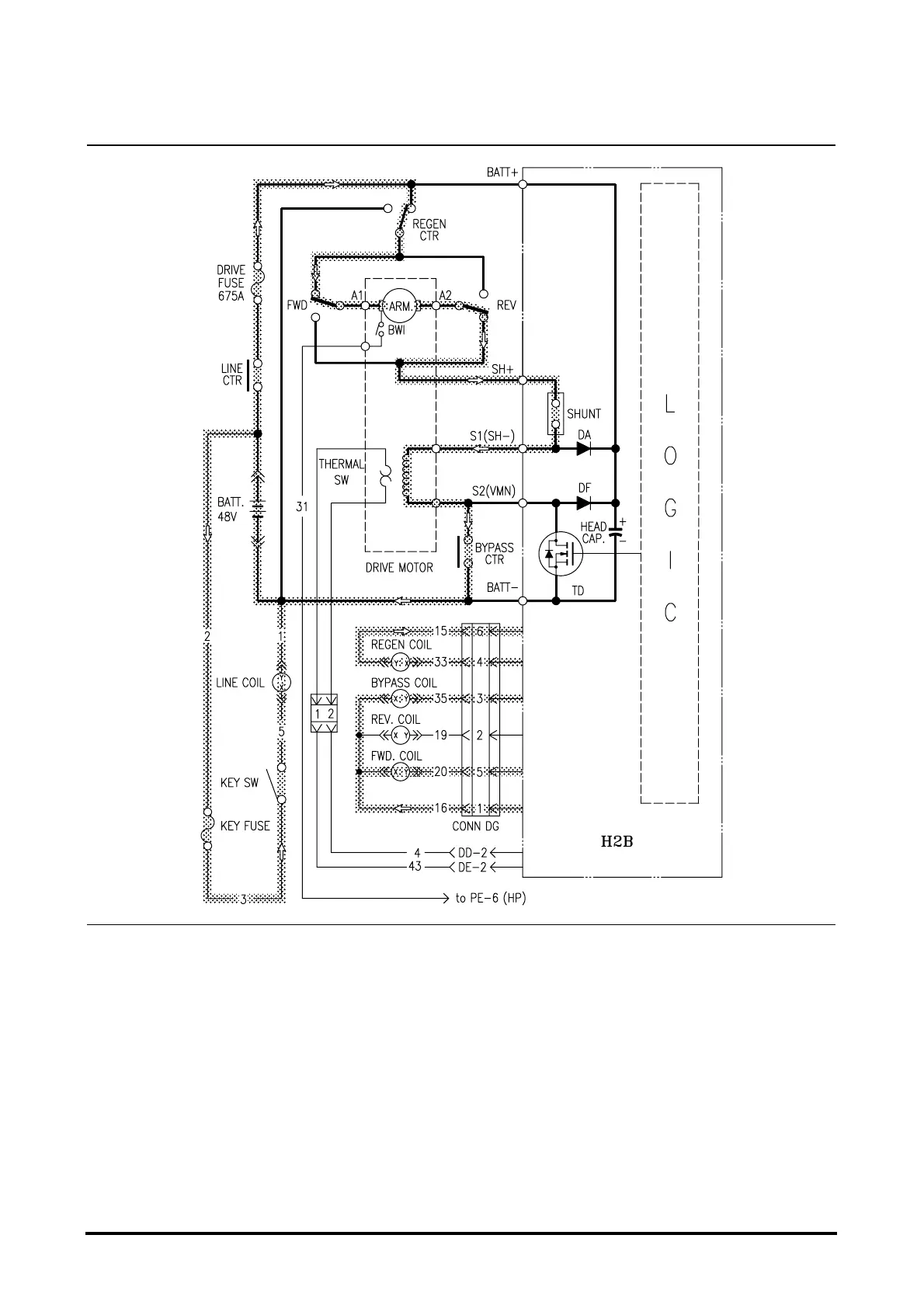

The bypass circuit bypasses TD and connects the drive
motor in series with the battery, applying full battery
voltage to the drive motor. If the accelerator pedal is fully
depressed, and the logics has pulsed TD through 95%
“on-time”, the logic will activated the BYPASS contactor
after 1.5 sec.
Bypass Circuit
Bypass Circuit Activated
To Next Page
