Operation Section
G 46
Monitoring Systems

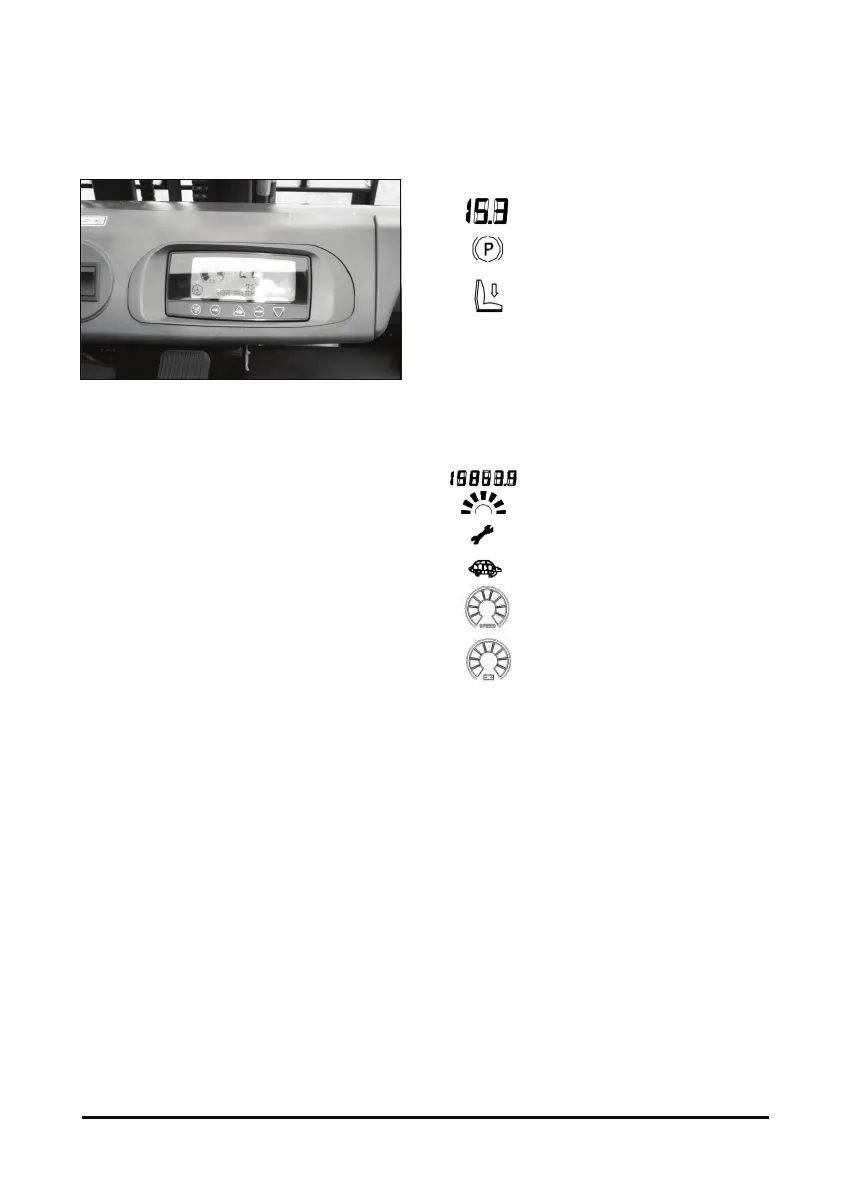

Indicator(Compact Display)
G
Display Segments
The display gives the following information about
the operating state of the system:
Lift truck speed (expressed in kmh or
mph)
Handbrake active, indicated by the
warning symbol
Safety contact open, indicated both by
EE blinking message visualized in
timemeter area and by relative symbol.
With any directional switch active and safety
contact still open, lift truck can’t be moved, even
after seat switch is closed; in such a case, after
safety contact is closed, the symbol disappears.
EE code disappears only after active directional
switch is turned off.
Time meter or, otherwise, milometer
Steering angle
Maintenance time expiry, indicated by
warning symbol
Slow speed operation, indicated by
Lift truck speed level, range from 0
(NO speed) to 9 (MAXIMUM speed)
segment, as in symbol
Battery level, indicated by a 9
segments symbol.
In following Table 1, you can read the generic
relation between battery charge level and number
of visualized bars. See Table 2 in case of a 48V
system and table 4 in case of a 80V system.
Display signals with alarm code EL the fact battery
is completely discharged.
