5. About the engine
94

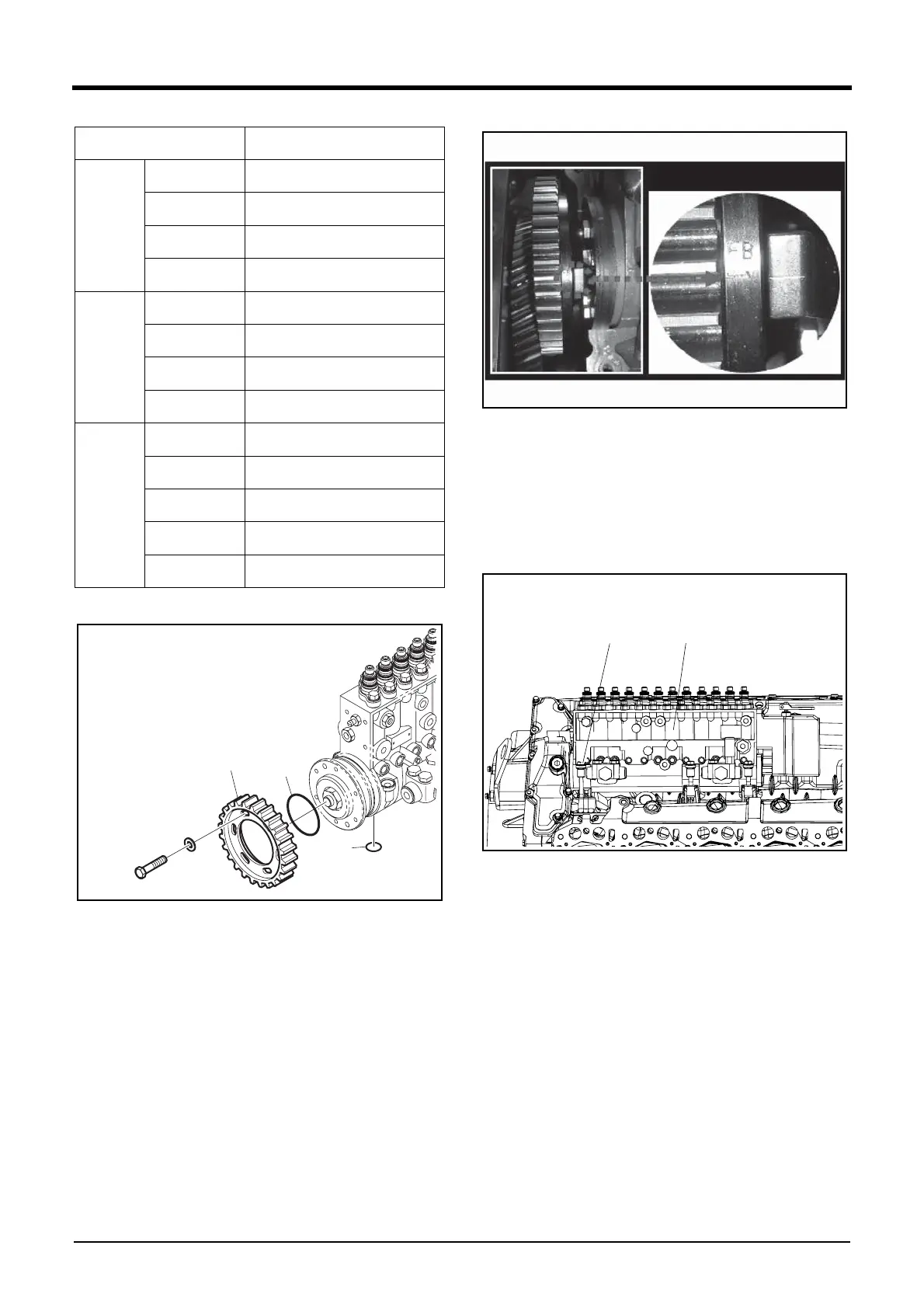

18. Attach the fuel injection driven gear temporarily.
DV2213186A
DV2213171A
1) Attach the driven gear(A) to the fuel injection pump
temporarily.
2) Attach the O-ring(B) and (C) to the fuel injection pump.
3) Align the injection timing pointer of the fuel injection pump
driven gear with the marking on the cylindrical surface.
19. Attach the fuel injection pump.
DV2213072A
1) Attach the fuel injection pump(B) with the injection pump
alignment jig(EF.120-189).
2) Tighten 6 fixing bolts(A) at a tightening torque 5.0 kgf·m
± 0.5kgf·m.
Engine Model
Fuel Injection Timing (°)
DP158L
DP158LCS
23° ± 1°
DP158LCF
18° ± 1°
DP158LDS
23° ± 1°
DP158LDF
18° ± 1°
DP180L
DP180LBS
21° ± 1°
DP180LBF
19° ± 1°
DP180LAS
21° ± 1°
DP180LAF
19° ± 1°
DP222L
DP222LAS
21° ± 1°
DP222LBS
21° ± 1°
DP222LBF
19° ± 1°
DP222LCS
21° ± 1°
DP222LCF
19° ± 1°
A
C
B
AB
