- 174 -
LP Engine G430(3.0L) Base Engine Service Procedure

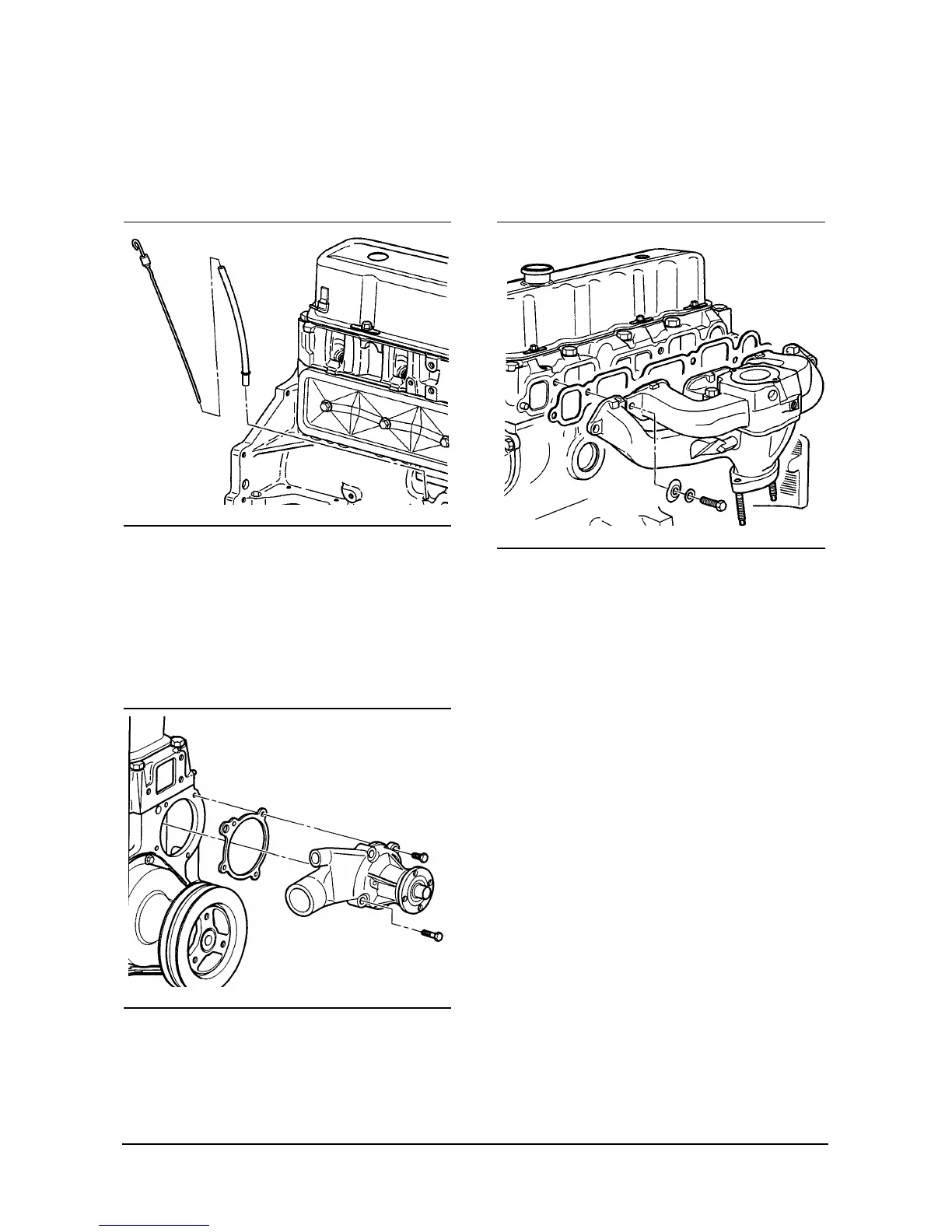

Oil Level Indicator and Tube
Installation
1. Install the oil level indicator tube into the engine
block.
2. Use a light plastic or rubber hammer in order to tap
the tube until it seats in the engine block.
3. Install the oil level indicator into the tube.
Water Pump Installation
1. Position the water pump and gasket to the engine block.
2. Install the water pump bolts.
Tighten
Tighten the water pump bolts to 20 N•m (15 lb•ft).
Intake/Exhaust Manifold
Installation
1. Install the intake/exhaust manifold gasket over the
locating pins on the cylinder head.
2. Install the bolts and clamps while holding the
manifold in place.
Tighten
Tighten the two center bolts to 27-34 N•m (20-25 lb•ft).
Tighten the end bolts to 20-27 N•m (15-20 lb•ft).
VE014-3L
VE017-3L
VE120-3L
