LP Engine G430(3.0L) LP Fuel System

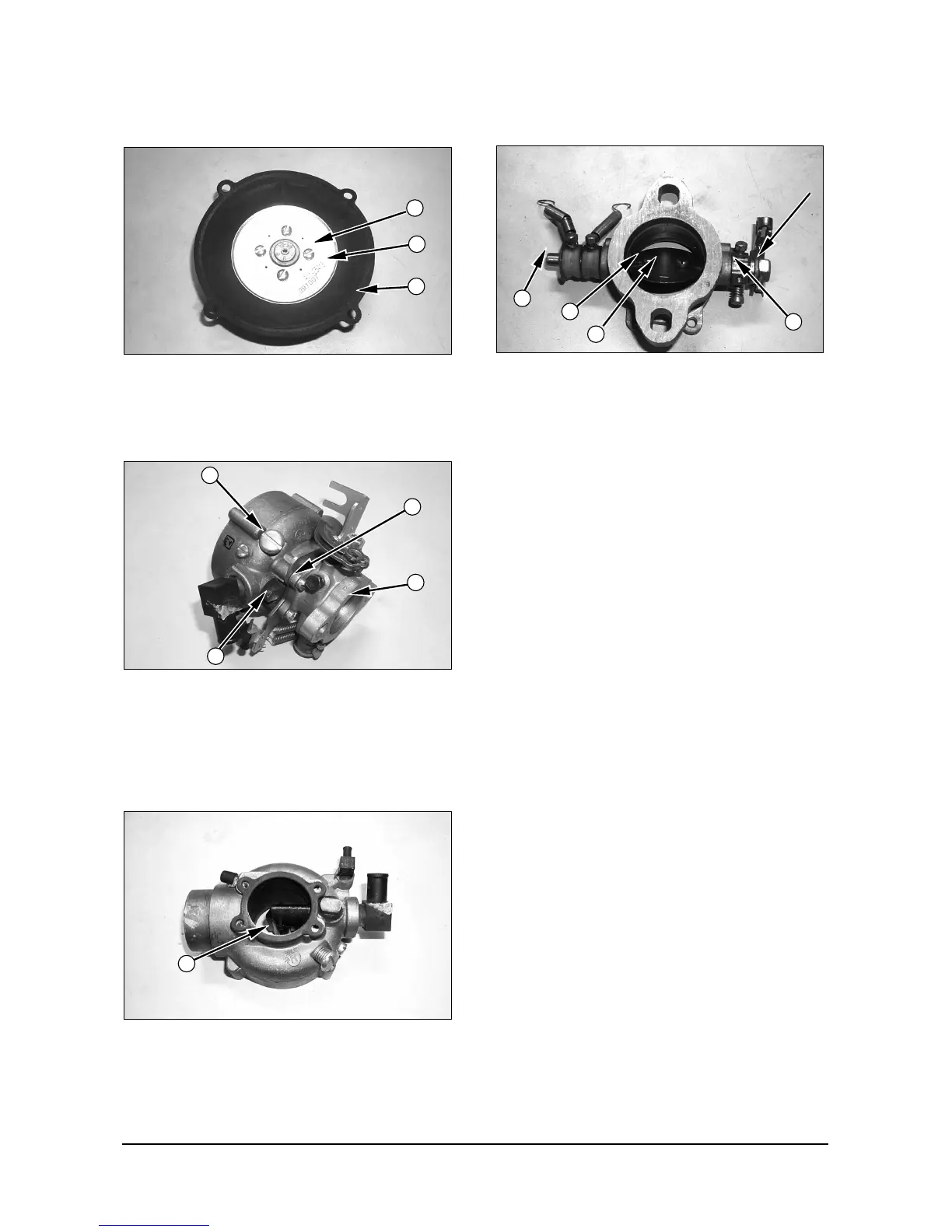

3. Remove four screws (5), backup plate (6),
diaphragm (7) and the air valve ring from the inner
carburetor body.
4. Remove power mixture screw (8), idle mixture
screw (9) and the spring. Remove four screws
(10).
Remove throttle body assembly (11) and the
gasket.
5. Remove gasket (12).
6. Remove nut (13).
7. Loosen the bolt and remove stop (16).
8. Remove two screws (14). Remove throttle plate
(15).
9. Remove shaft assembly (17) from the throttle
body.
