DOOSAN SERVO
36

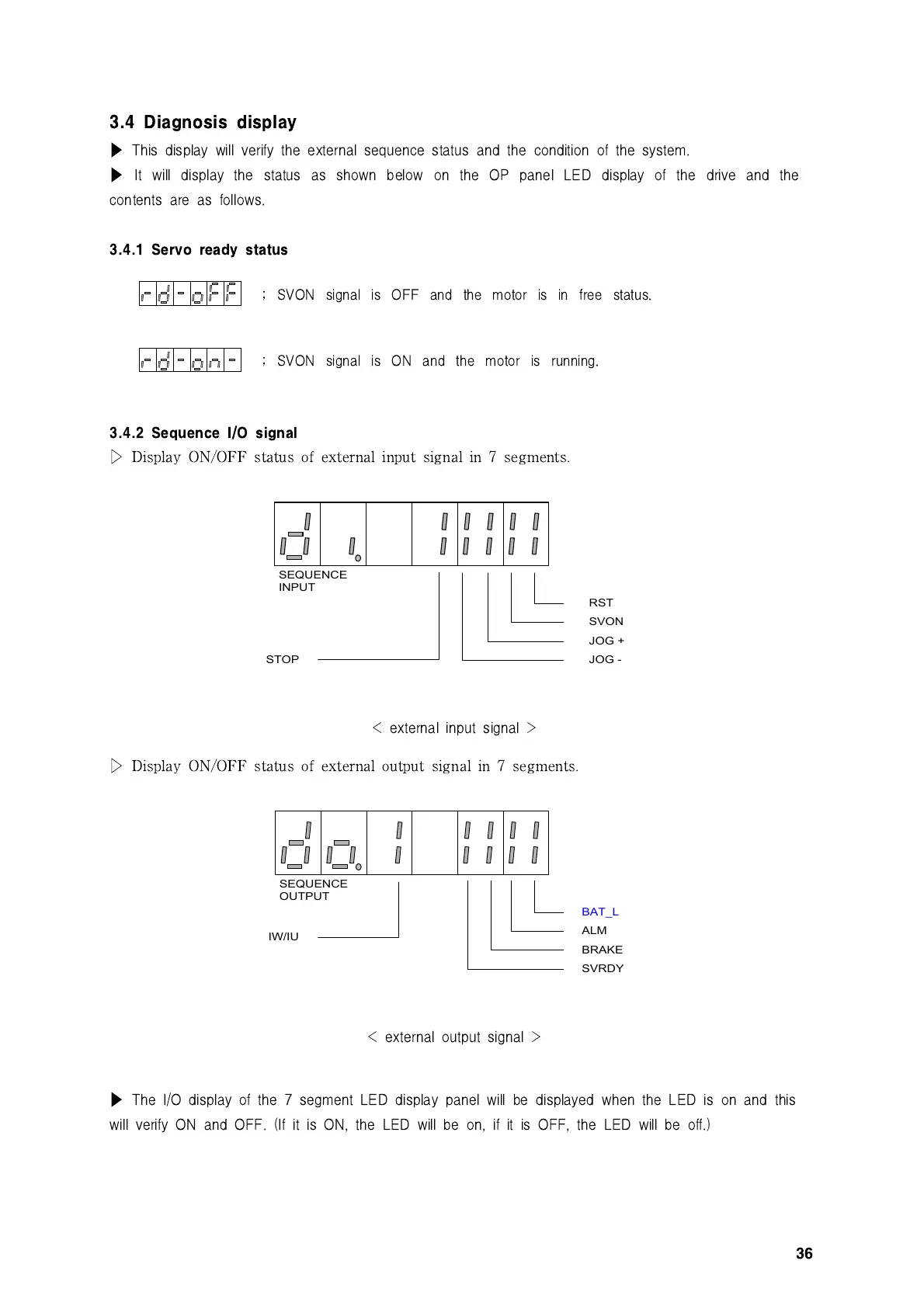

3.4 Diagnosis display
This display will verify the external sequence status and the condition of the system.
It will display the status as shown below on the OP panel LED display of the drive and the
contents are as follows.
3.4.1 Servo ready status
; SVON signal is OFF and the motor is in free status.
; SVON signal is ON and the motor is running.
3.4.2 Sequence I/O signal
Display ON/OFF status of external input signal in 7 segments.
SEQUENCE
INPUT
RST
SVON
JOG +
JOG -STOP
<
external input signal
>
Display ON/OFF status of external output signal in 7 segments.
SEQUENCE
OUTPUT
IW/IU
BAT_L
ALM
BRAKE
SVRDY
<
external output signal
>
The I/O display of the 7 segment LED display panel will be displayed when the LED is on and this
will verify ON and OFF. (If it is ON, the LED will be on, if it is OFF, the LED will be off.)
