DOOSAN SERVO

3
Specifications
Applied motor capacity
0.8KW / 1.5KW / 2.0KW
3.0KW / 4.0KW
Rated current
14A rms
28A rms
Maximum current
40A peak
80A peak
Rotation speed
2000rpm / 3000rpm (Rated / Maximum)
Main input voltage
3 phase 200/220V +10% ～ -15%, 50/60HZ ±5%
Control period
125 μ sec
Control method
IPM full wave rectified, transisterized PWM control
Control mode
position, speed, torque control
Control circuit
3 phase Voltage PWM Inverter Driving (IPM)
Full Digital Vector Control (Position detection by Pulse Encoder)
Encoder Spec.
Type
Absolute Encoder
Resolution
17bit (131072)
I/O Terminal block
Input electric power (R, S, T), Ouput electric power (U, V, W), Ground (E)
Protection
Over voltage, under voltage, over current, over speed,
over load, encoder error and etc.
Functions
Setting Parameter, Diagnosis, Alarm Display, Status Display
Ambient temperature
0～ 50 ℃ ,
Ambient humidity
Below 90%RH (don't be covered with dew)
Preservation temperature
-20 ～ 85 ℃
Altitude
Below 1000m
Vibrations
Below 0.5G
Mounting
Rack Mount

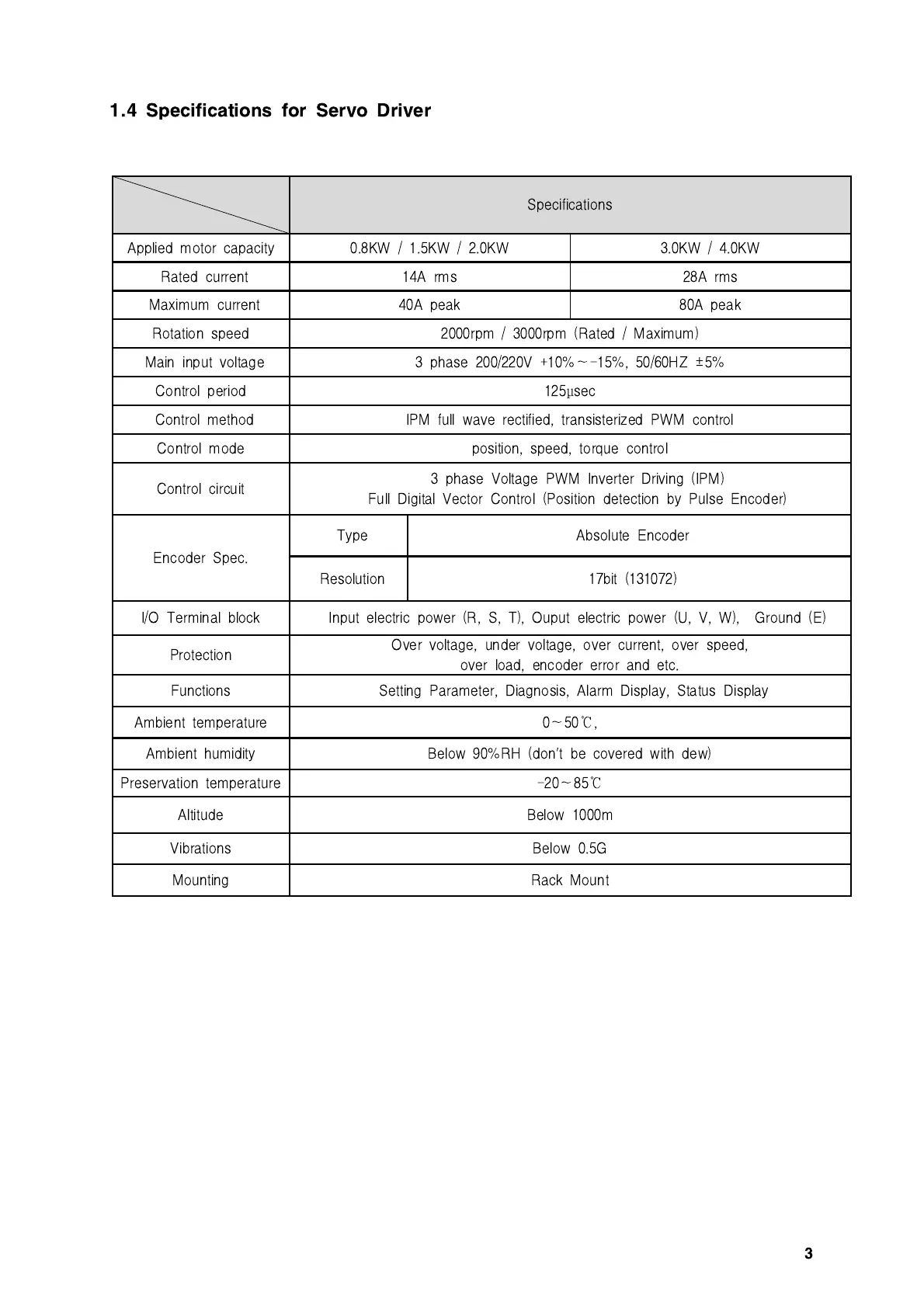

1.4 Specifications for Servo Driver
