DOOSAN SERVO



TA PART(ATC DRIVE)

1. Installation and wiring

1.1 Designations

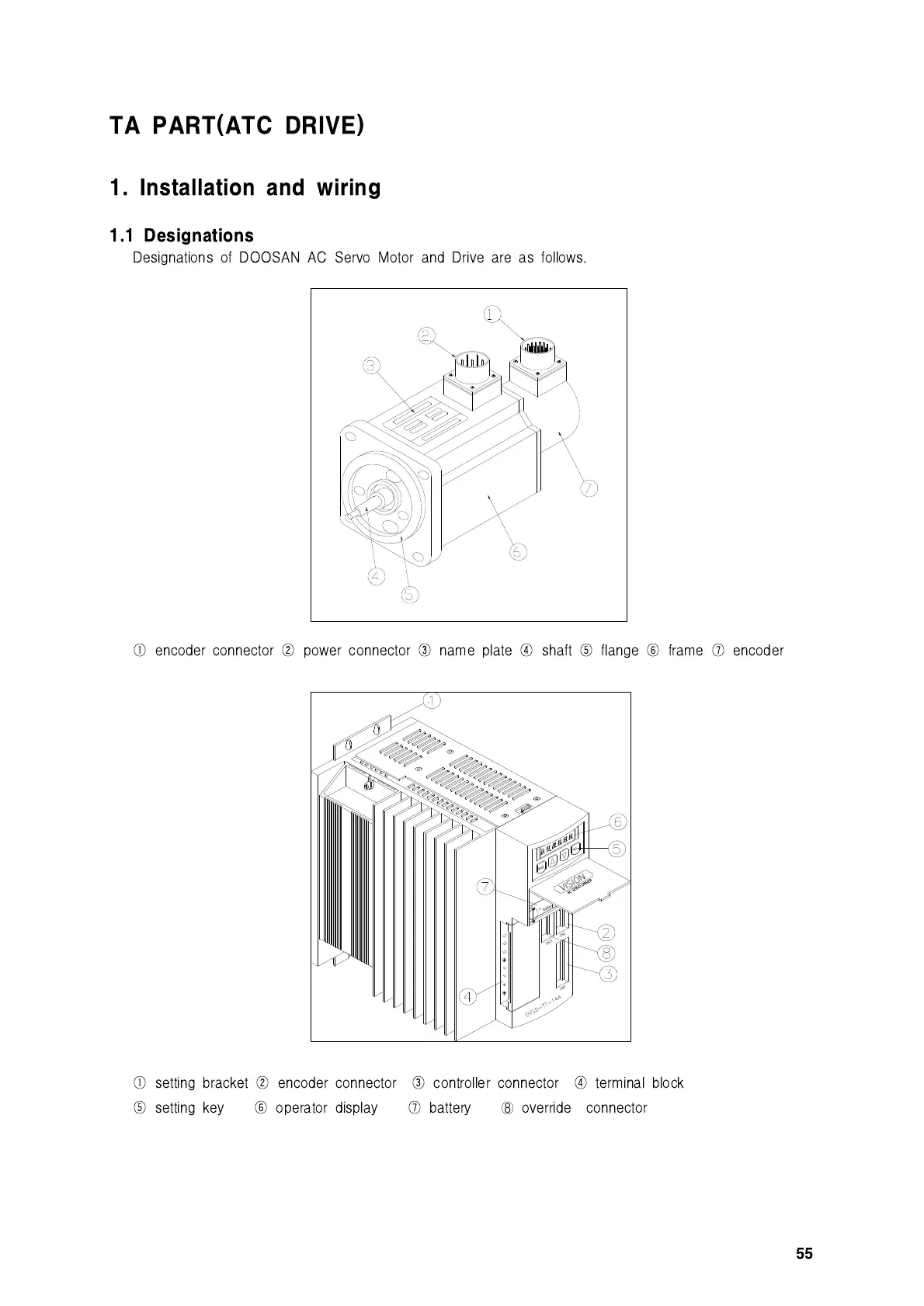

Designations of DOOSAN AC Servo Motor and Drive are as follows.

① encoder connector ② power connector ③ name plate ④ shaft ⑤ flange ⑥ frame ⑦ encoder

① setting bracket ② encoder connector ③ controller connector ④ terminal block

⑤ setting key ⑥ operator display ⑦ battery



override 　 connector
