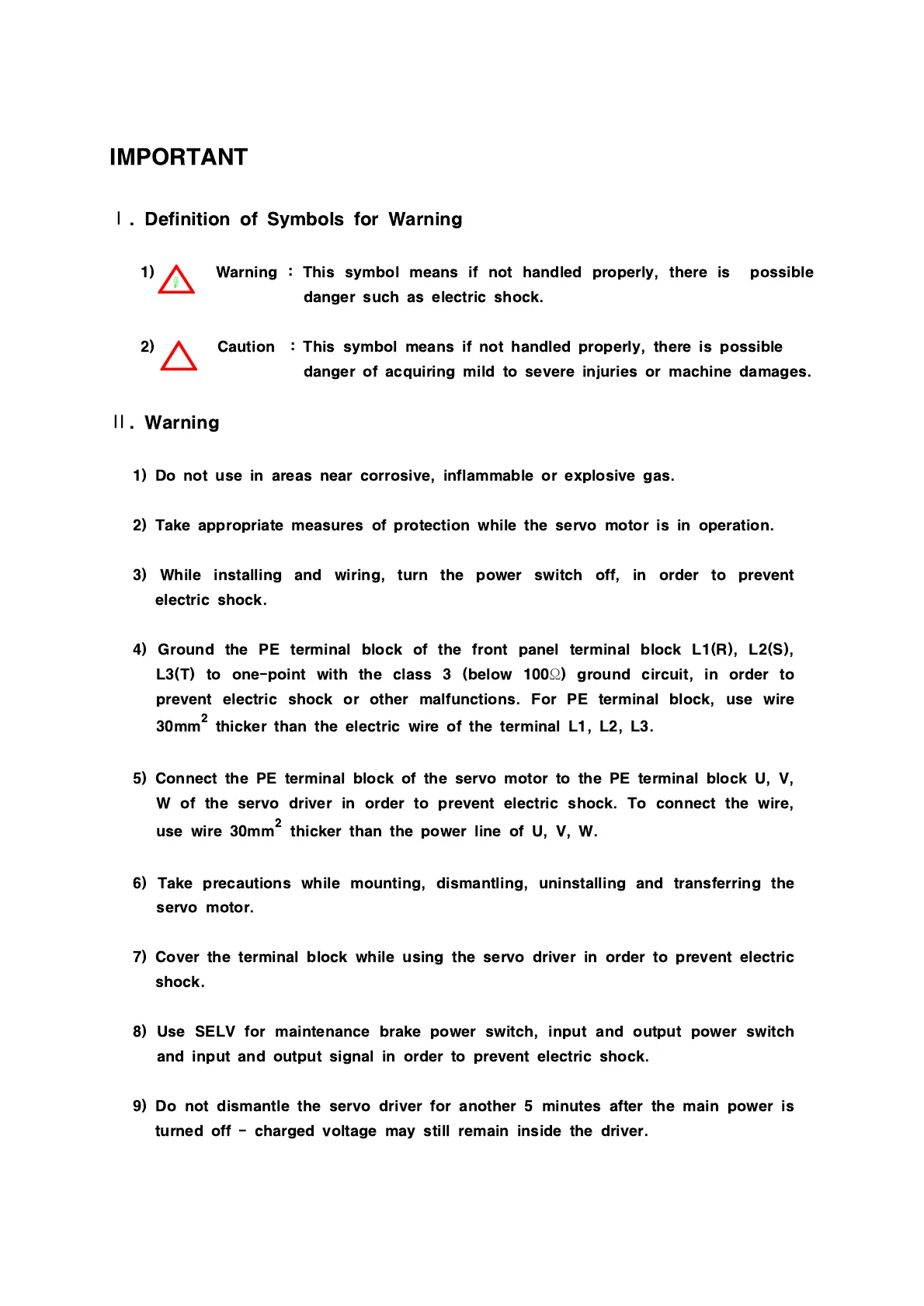

IMPORTANT
â…
. Definition of Symbols for Warning
1) Warning : This symbol means if not handled properly, there is possible
danger such as electric shock.
2) Caution : This symbol means if not handled properly, there is possible
danger of acquiring mild to severe injuries or machine damages.
â…¡
. Warning
1) Do not use in areas near corrosive, inflammable or explosive gas.
2) Take appropriate measures of protection while the servo motor is in operation.
3) While installing and wiring, turn the power switch off, in order to prevent
electric shock.
4) Ground the PE terminal block of the front panel terminal block L1(R), L2(S),
L3(T) to one-point with the class 3 (below 100
Ω
) ground circuit, in order to
prevent electric shock or other malfunctions. For PE terminal block, use wire
30mm
2
thicker than the electric wire of the terminal L1, L2, L3.
5) Connect the PE terminal block of the servo motor to the PE terminal block U, V,
W of the servo driver in order to prevent electric shock. To connect the wire,
use wire 30mm
2
thicker than the power line of U, V, W.
6) Take precautions while mounting, dismantling, uninstalling and transferring the
servo motor.
7) Cover the terminal block while using the servo driver in order to prevent electric
shock.
8) Use SELV for maintenance brake power switch, input and output power switch
and input and output signal in order to prevent electric shock.
9) Do not dismantle the servo driver for another 5 minutes after the main power is
turned off - charged voltage may still remain inside the driver.
