Dormakaba ED100 - 12 Single door installation; 12.1 Customer supplied single door - installation; 12.1.1 Conditions prior to installing door

33
ED50/ED100/ED250 09-2021DL4617-003
dormakaba ED50/ED100/ED250 OHC Header
Setup and Troubleshooting Instructions
Chapter 12
 Single door installation

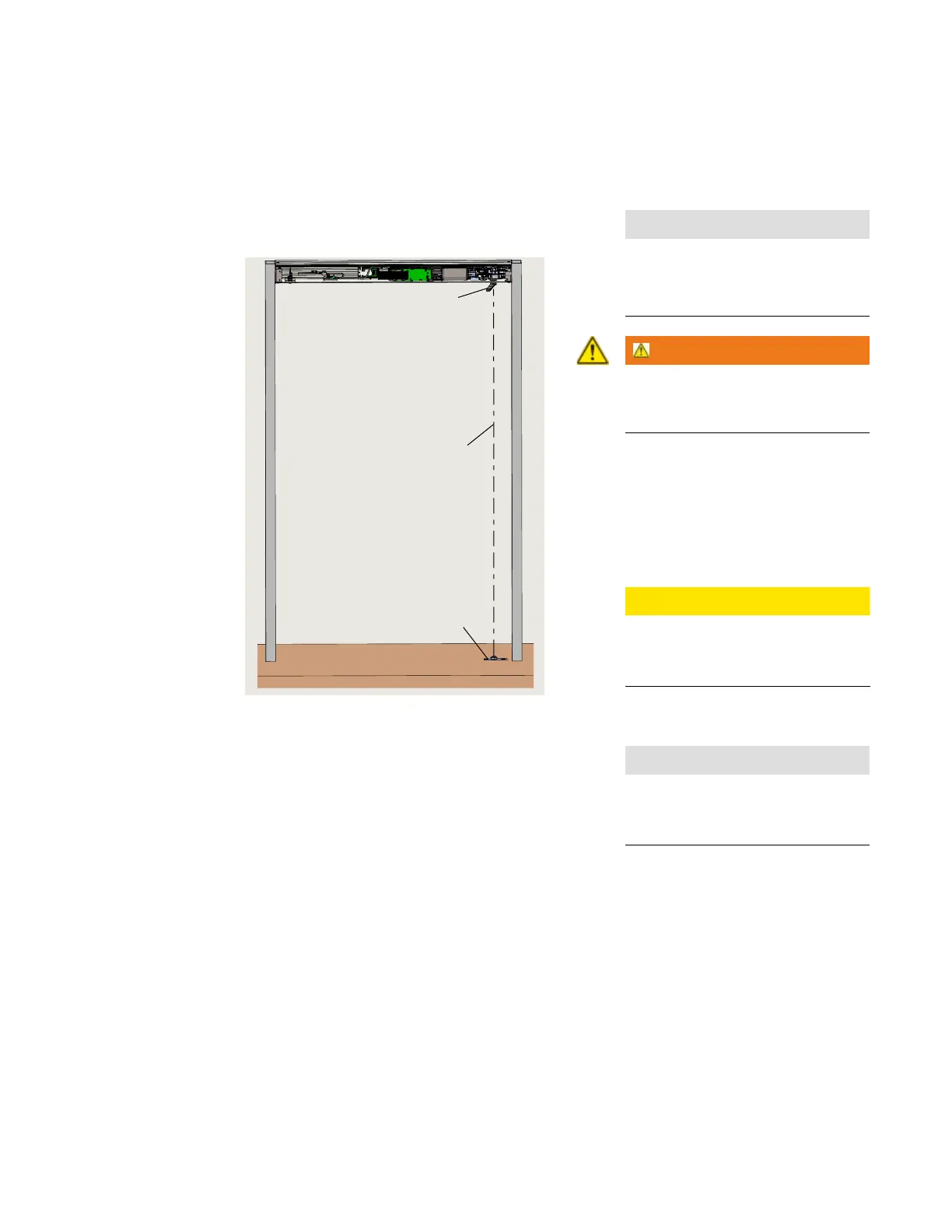

Fig. 12.1.1 Jambs and header, LH inswing
example, plumb centerline
1 Overhead arm
2 Floor pivot
NOTICE
Door and jambs by customer.
Door installation:
Customer responsibility.
WARNING
Door installation must meet
ANSI/BHMA standards as well as
any applicable local building codes.
.. Conditions prior to installing door.
. Overhead arm rotated to  open
position or greater (Fig. ..).
. Floor pivot installed by customer.
. Door bottom pivot hardware installed in
floor by customer
CAUTION
Jamb edge to floor pivot
centerline distance:  /".
Reference Para. ..
.. Check ED operator to floor pivot
plumb.
NOTICE
Using plumb bob, check
ED operator axle to floor pivot
plumb.
. Customer supplied single door - installation
1
2
Plumb centerline
