Dormakaba ED50 Service Manual

11
ED100/ED250 02-2018DL4614-050
dormakaba ED100/ED250 Service Manual Chapter 8

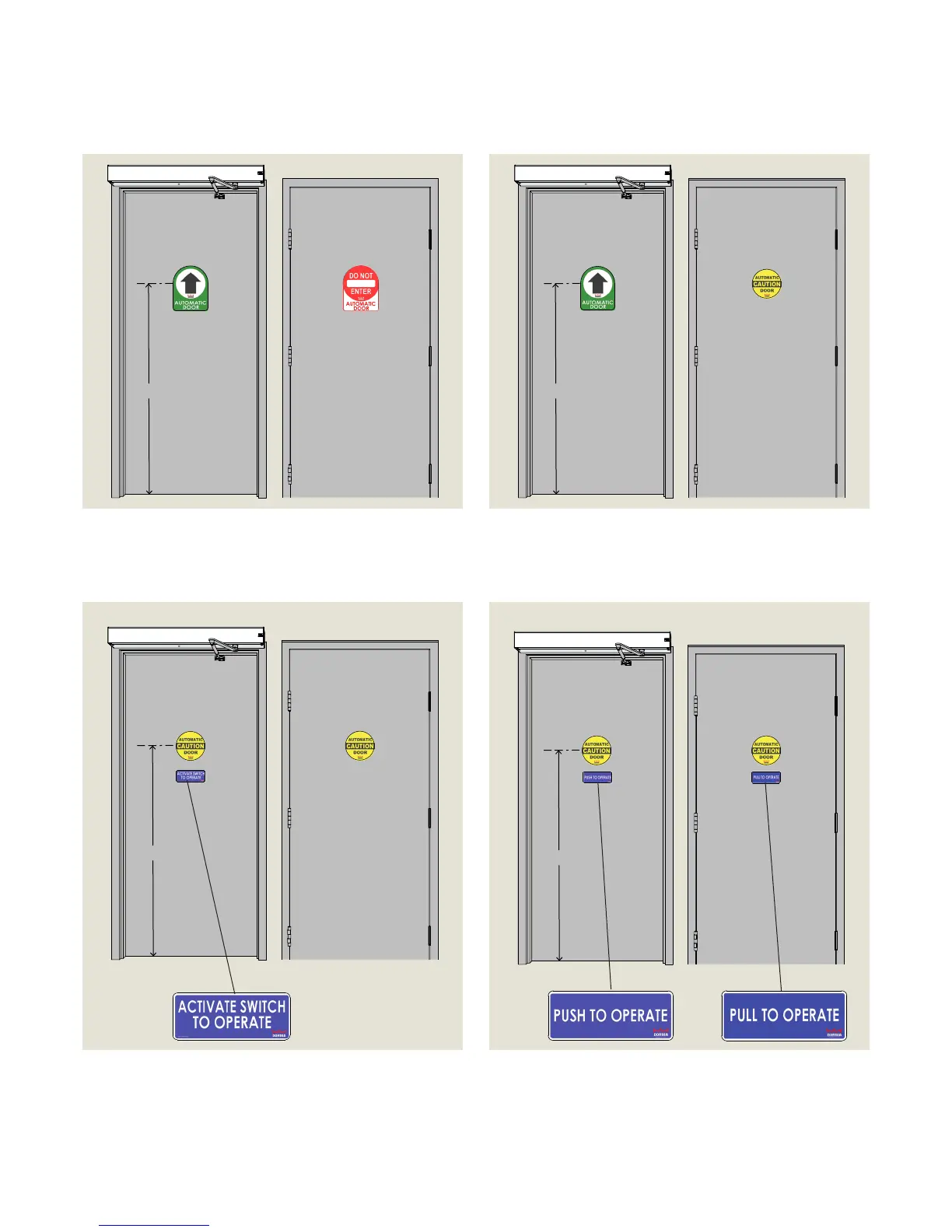

Fig. 8.4.1 Low energy decals, knowing act device
initiation of door operation
Fig. 8.4.2 Low energy decals, push/pull initiation of door
operation
Fig. 8.3.1 Full energy decals, one way traffic
Fig. 8.3.2 Full energy decals, two way traffic
. Door signage, full energy single swing door
Approach Non-approach
DD0739-020
50” ± 12”
50” ± 12”
50” ± 12”
50” ± 12”
. Door signage, low energy single swing door
"Activate Switch to Operate" sign located on side (s) of
door where switch is located.
