dormakaba ED100/ED250 Service Manual Chapter 6
. Program switch panel

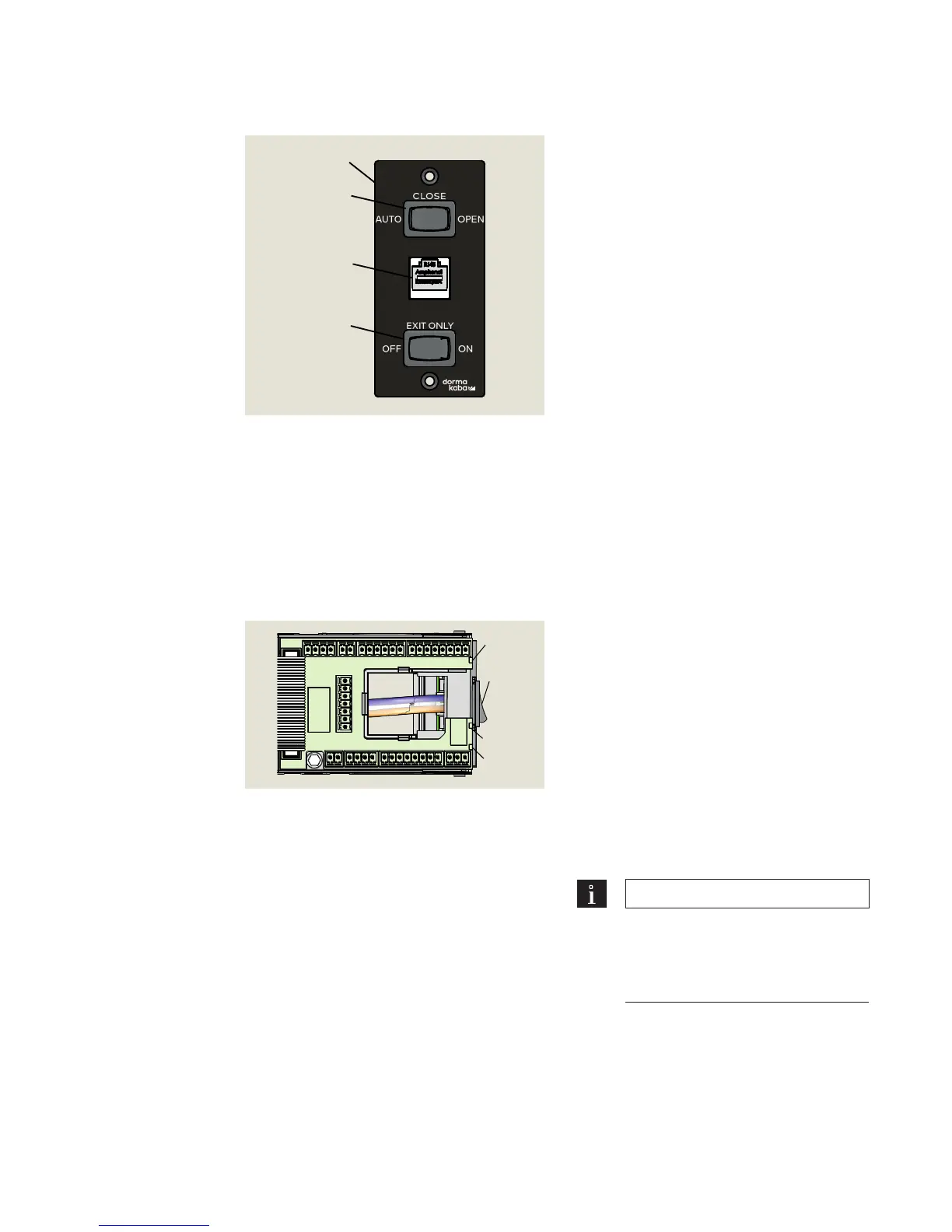

Fig. 6.3.1 Program switch panel
.. Program switch door control modes
. Auto
Door opens automatically when one of
the activators (Chapter ) is actuated or
triggered, and closes on expiration of
adjustable hold open time.
. Close
Door closes automatically, or remains
closed until program switch position
changed.
. Open
Door opens automatically and remains
open until program switch position
changed.
.. Exit only switch modes
. Off
Internal and external activation sensors
both active.
. On
External activation sensor disabled when
door fully closed. Only internal activation
sensor will enable door opening.
6.4 Operator status LEDs
Fig. 6.4.1 Operator status LEDs
.. Operator status LEDs
Header cover must be opened to view LEDs.
. Red LED
Blinking codes are used to indicate "ln__"
information (system status or operating
conditions) or certain error codes "E__".
. Yellow LED
Maintenance interval indicator. When
illuminated, an indication the operator
system has to be serviced.
. Green LED
• On, internal Vdc power is On.
• Off, internal Vdc power is Off.
TIPS AND RECOMMENDATIONS
Details on LED status codes and
maintenance intervals can be found
in Chapter 16, Troubleshooting.
1 Red LED
2 Yellow LED
3 Green LED
4 Power switch
1
1.1
1.2
1.2
1 Program switch
panel
2 Program switch,
3 position
3 Exit Only switch,
2 position
4 Comm port for
dormakaba
handheld
1
2
3
4
