dormakaba ED900 Setup and Troubleshooting Instructions Chapter 7
 ED door signage
AUTOMATIC CAUTION DOOR decal.
• All low energy doors shall be marked with signage
visible from both side of door with the words
"AUTOMATIC CAUTION DOOR".
• Signs shall be mounted " ± " from floor to
centerline of sign.
.. Knowing act used to initiate door operation.
ACTIVATE SWITCH TO OPERATE decal.
• When a knowing act device is used to initiate operation
of door operator, door shall be provided with sign on
each side of door where switch is operated with
message "ACTIVATE SWITCH TO OPERATE".
.. Push/Pull used to initiate door operation.
PUSH TO OPERATE, PULL TO OPERATE decals.
• When push/pull is used to initiate operation of door
operator, doors shall be provided with the message
"PUSH TO OPERATE" on push side of door and
"PULL TO OPERATE" on pull side of door.

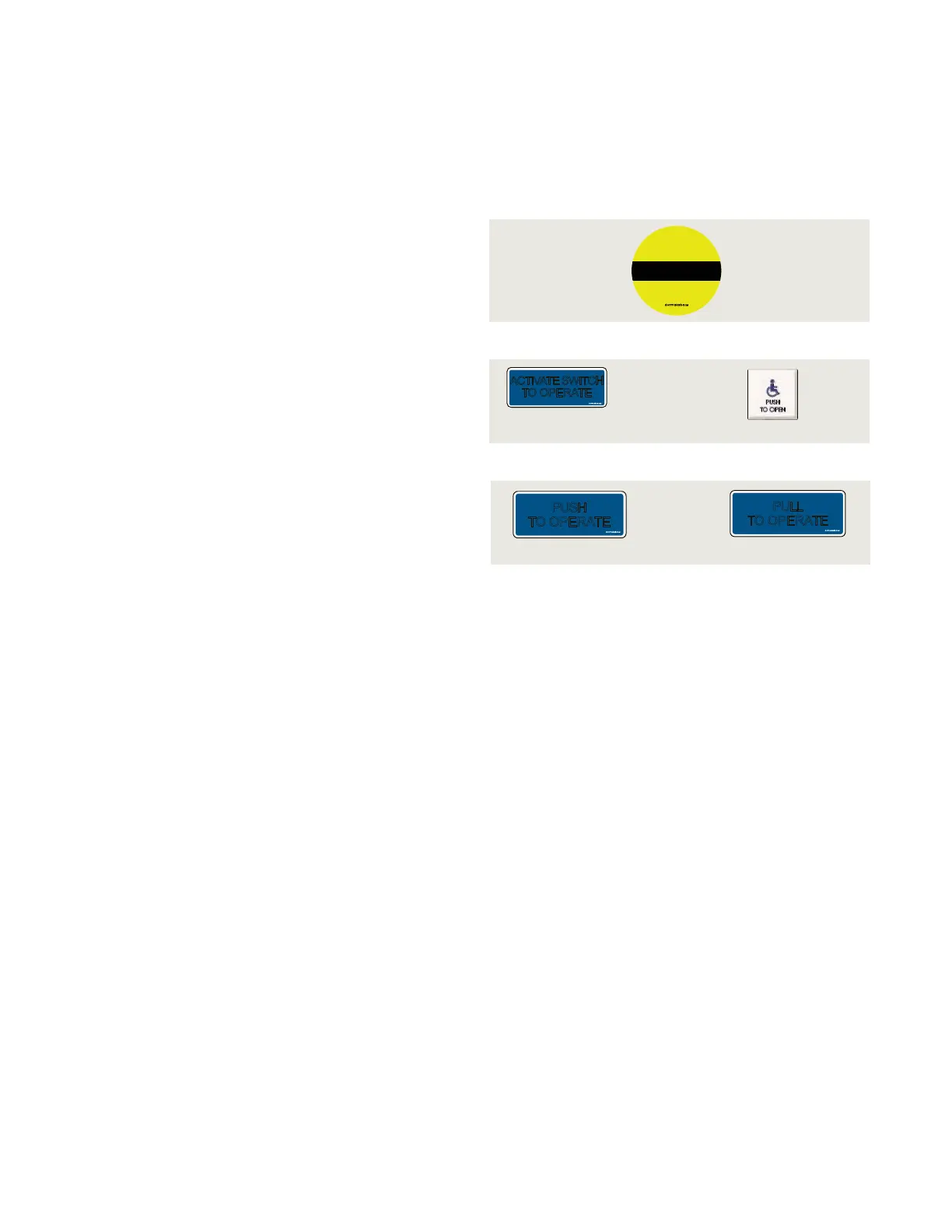

Fig. 7.1.1 AUTOMATIC CAUTION DOOR decal
Fig. 7.1.2 ACTIVATE SWITCH TO OPERATE decal
. Low energy operator, ANSI/BHMA A.
.. Overview
Signage and warnings are specified in
ANSI /BHMA A., American National Standard for
Low Energy Power Operated Swinging Doors.
.. All low energy doors.
DD0758-010
ACTIVATE SWITCH
TO OPERATE
DD0758-010
DD0762-010
PUSH
TO OPERATE
DD-
DD0762-020
PULL
TO OPERATE
DD-
CAUTION
DOOR
AUTOMATIC
DD0586-010
DD-
Fig. 7.1.3 PUSHPULL TO OPERATE decals
DD-
