1.3 Dimensions of servo motors
1.3.1 60/80 series servo motors

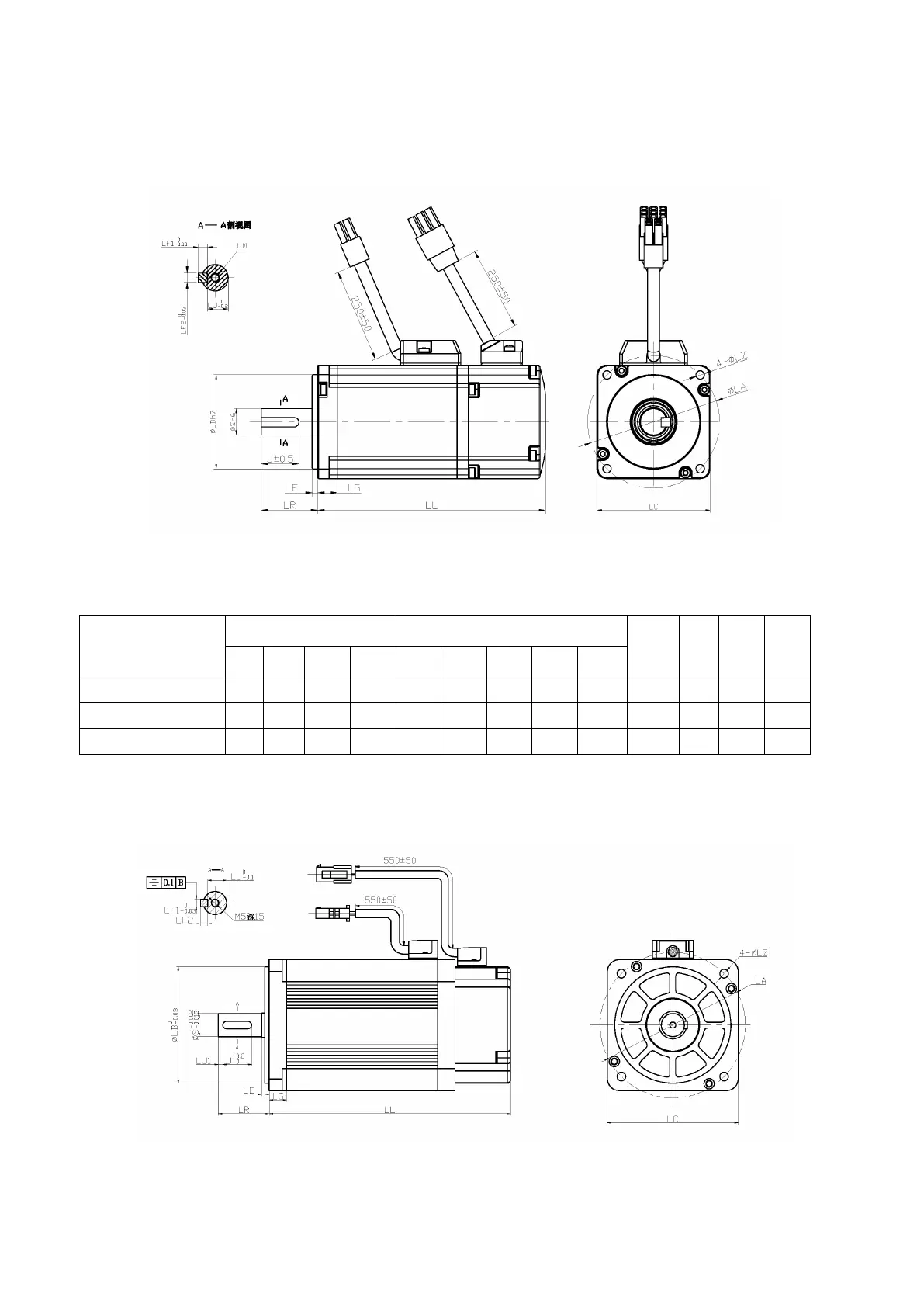

60/80 series servo motors installation dimensions (unit: mm)
1.3.2 90 series servo motors
Model
Flange face dimensions
Shaft end dimensions
LL
LR
LE
LG
LC
LA
LB
LZ
S
LJ
J
LF1
LF2
60DNMA1-0D20D
60
70
50
5.5
14
11
20
5
5
103
30
3
8
60DNMA1-0D40D
60
70
50
5.5
14
11
20
5
5
123
30
3
8
80DNMA1-0D75D
80
90
70
6.5
19
15.5
25
6
6
129.7
35
3
9.8
