OPERATION
OPERATING INSTRUCTIONS - MAKING A BALE
1-6

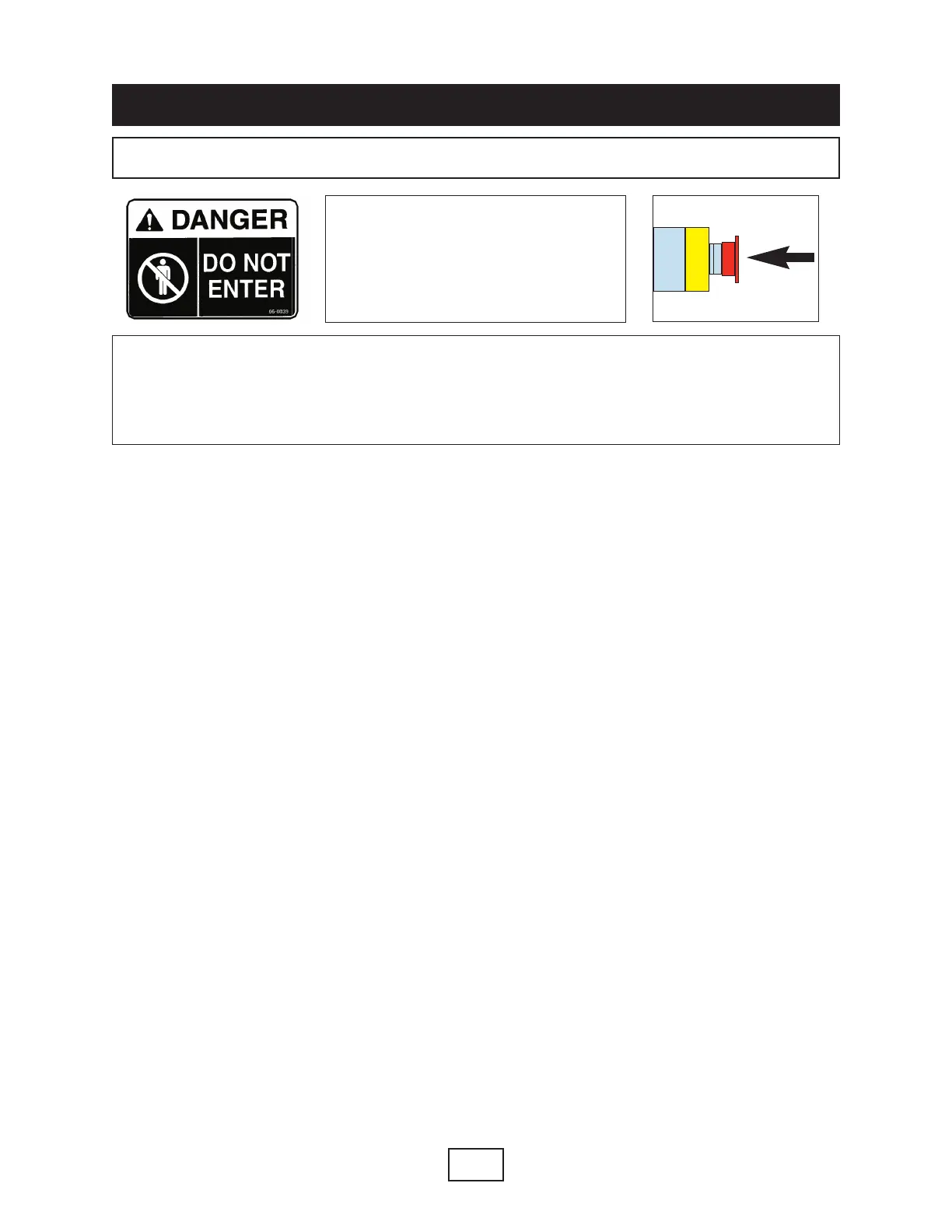

IN CASE OF EMERGENCY:
PRESS the large RED
button to
“STOP”
WARNING: SAFETY INTERLOCKS AND DEVICES ARE INSTALLED ON THIS
MACHINE FOR YOUR PROTECTION. NEVER DISABLE OR BYPASS ANY
SAFETY DEVICE. FAILURE TO COMPLY WITH THIS WARNING COULD RESULT
IN SERIOUS INJURY OR DEATH.
HOW TO MAKE A BALE:
1. Open the bale chamber door by turning the turnbuckle on the chamber door latch.
2. Place a large flat piece of cardboard inside bale chamber on baler floor.
3. Close the bale chamber door, and secure it with the turnbuckle.
4. Load material into baler through feed opening.
NOTE: DO NOT OVERFILL BALER! Overfilling baler will result in serious damage
to the feed gate that may prohibit operation of the baler. When loading material
through the feed opening, keep material pushed away from the feed gate. This is
especially imperative when the bale chamber is full and bale is approaching ‘BALE
MADE’ status. Overfilling at this stage will damage baler and incur costly repair.
5. Pull the feed gate down by the handle to close the feed gate.
6. To start the baler, insert key into switch, and turn to the ON position.
7. Turn switch to AUTO position. The platen will go down and return up to the loading
position. As the platen returns fully to the up position, the feed gate will automatic-
ally open and the motor will stop.
8. Repeat steps 4 through 7 until the BALE MADE arrow decal on the feed gate is
aligned with the BALE MADE arrow decal on the platen.
8A. (Optional) If the baler is equipped with the optional BALE MADE light, it will
illuminate when the bale is made and ready to be tied and ejected.
NOTE: FOLLOW ALL SAFETY INSTRUCTIONS IN THIS MANUAL!
NOTE: DO NOT OVERFILL BALER!
