56
Web Page Server
7.3 Matrix Configuration

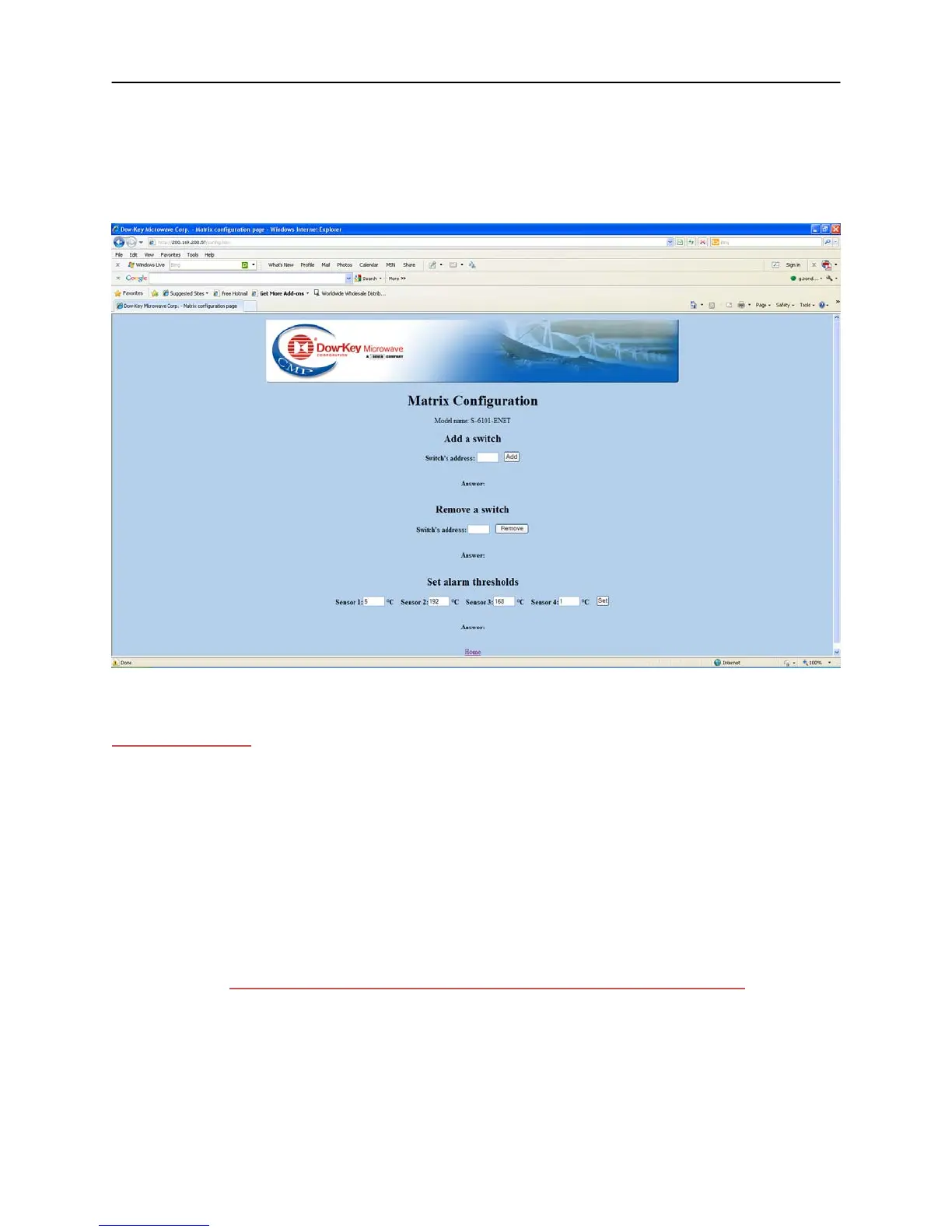

Clicking on ‘Matrix configuration’ will show the below page.
! Important Note:
The matrix controller is designed to offer the maximum expandability and flexibility
possible and therefore has features common to other Dow-Key matrix models. The here
described ‘Add a Switch’ and ‘Remove a Switch’ features are some of those that,
although available and fully functioning, should only be used if needed and appropriate.
Switches may be added and deleted from the Matrix Configuration using these
commands.
For those matrix models with a custom or fixed RF configuration (in other words where
the internal RF switches and its connections are defined on a custom bases or are
established and fixed by design), no switch shall be added or removed from the matrix
configuration. Not following this instruction will result in a non working matrix!
This page also allows to set the temperature alarm threshold of the temperature
sensors. This feature is disabled by setting all 4 temperature alarm thresholds to 0°C.
Most matrices do not contain any devices that produce significant heat, therefore these
models do not feature any temperature sensors. Leave all 4 temperature alarm
thresholds to 0°C.
