The cutting shape must be 100% black (otherwise in case of dashed lines, it must be a
100% magenta normal line) and have a thickness of 1 pt.
The Scorpio Cutting Manager (SCORPIO CM) work with the VECTOR PDF FILE. You
can create this le with Adobe Illustrator or Corel Draw.

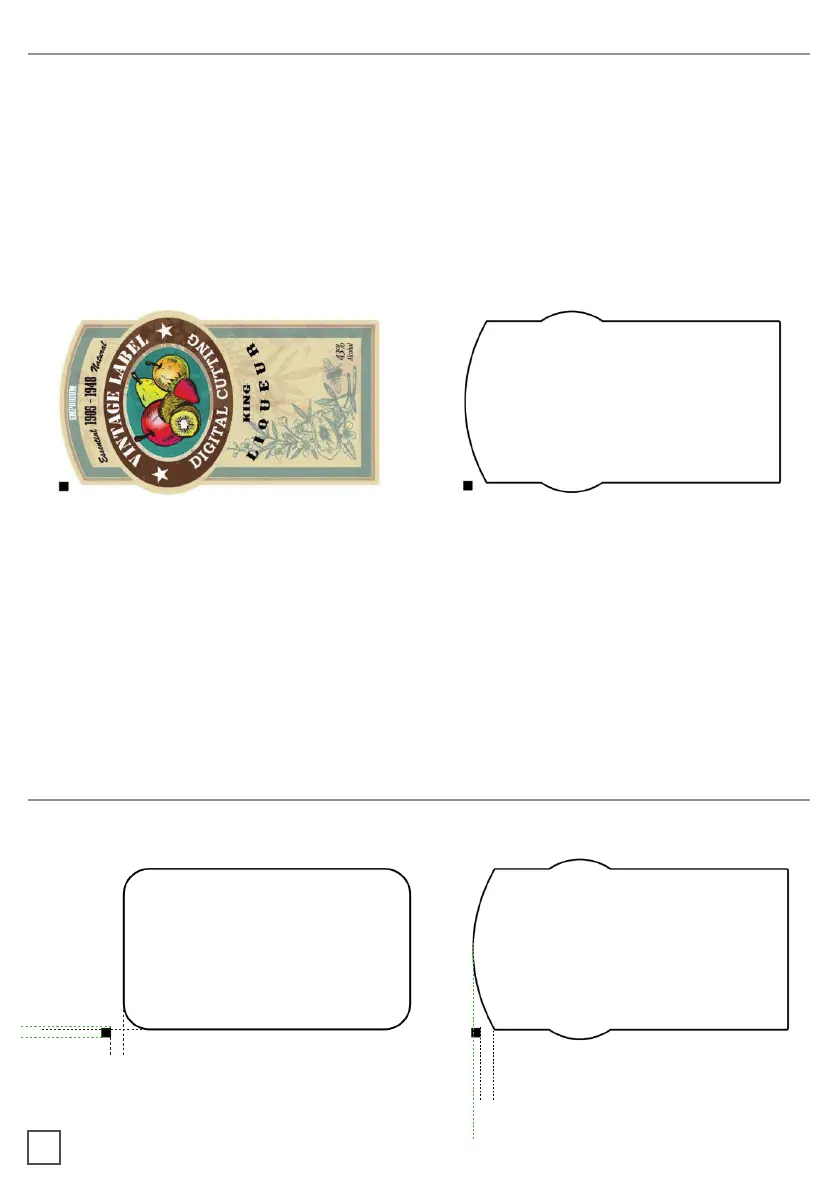

minimum distance from
left side of label graphics
4mm
black-mark
can overlap
label on
bottom
Black-mark size: 4x4mm or 2x2mm
4mm is the minimum distance betwen black-mark
and label graphics on bottom side.
Black-mark be the leftmost object.
for round or complex labels
black-mark can partially
overlap the left side of label.
17
BLACK-MARK POSITION INTO THE CUTTING FILE AND PRINTED ARTWORK
black mark having a size of 4x4mm or 2x2mm.
saved instead of hiding or disabling any extra content.
CUTTING FILE SPECIFICATIONS
