Cabling
• Upon the connection of the main cables according to the schematic diagram of system connection,
as well as power supply connection, secure these cables using a crowbar according to the diagram
below and conceal them in the interior trim panel or the dashboard (i.e. concealed cabling).
• Since AD Plus2.0 has a power supply box with a built-in turning-on/off control strategy, it is
necessary to fix the power supply box at a certain position on the vehicle. Attention should be paid
to the following items when the fixing position is selected:
① It should be close to the vehicle loose wire power outlet.
② The mounting position should be flat.
③ It does not interfere with other components of the vehicle.
④ It keeps away from loudspeakers, engines, and other positions with excessive shake or vibration.
⑤ It should be as secluded as possible.
Due to varying port positions across different vehicles, the cabling methods and power supply box
mounting locations will also vary accordingly.
Here are two recommended installation positions for the power supply box. You can also fix it in other
positions according to the actual vehicle.

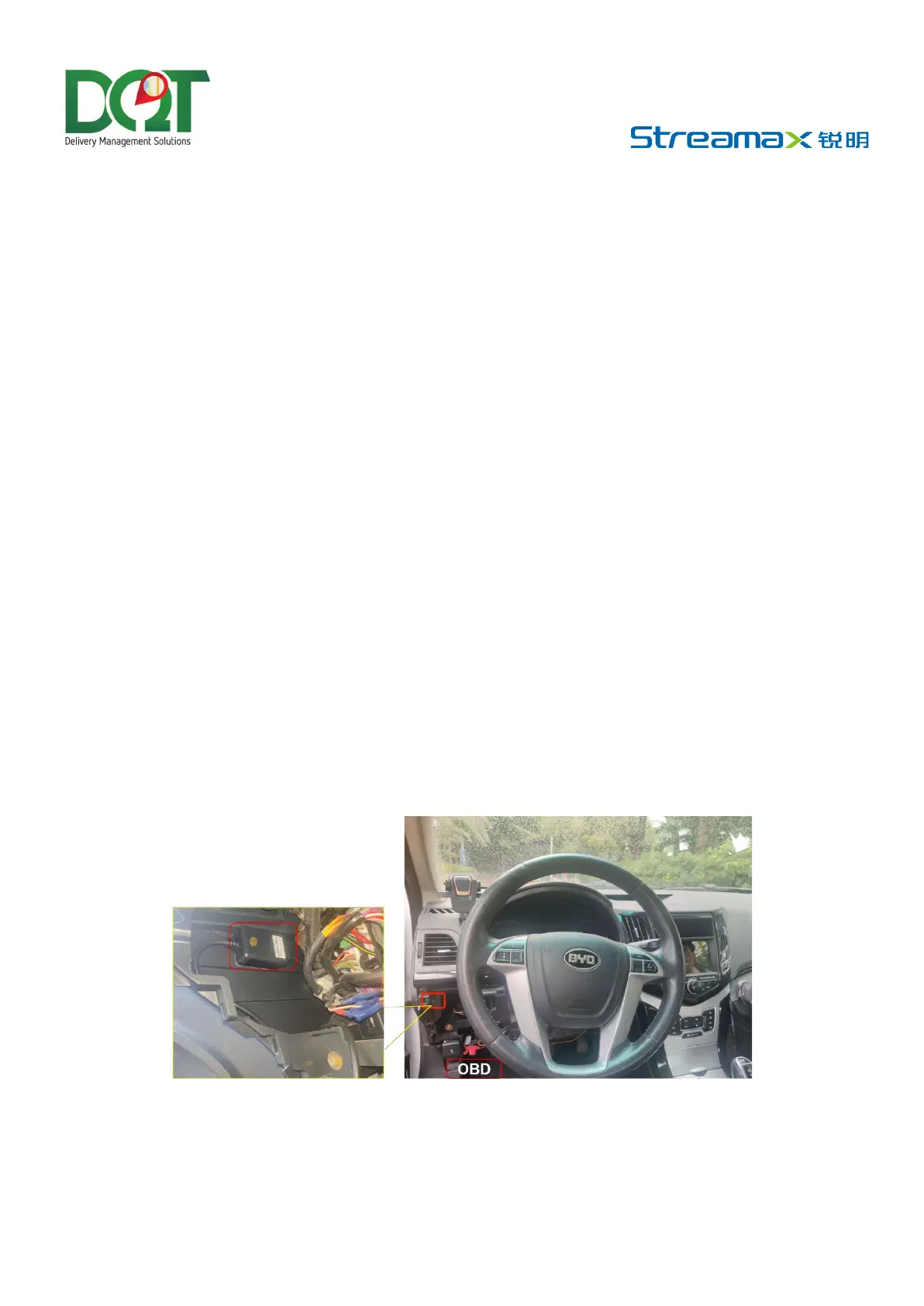

Fixing position 1 of the power supply box:
Remove the side baffle of the driving seat, tear off the 3M tape on the power supply box,
and fix it to the left or right baffle, as shown below:
