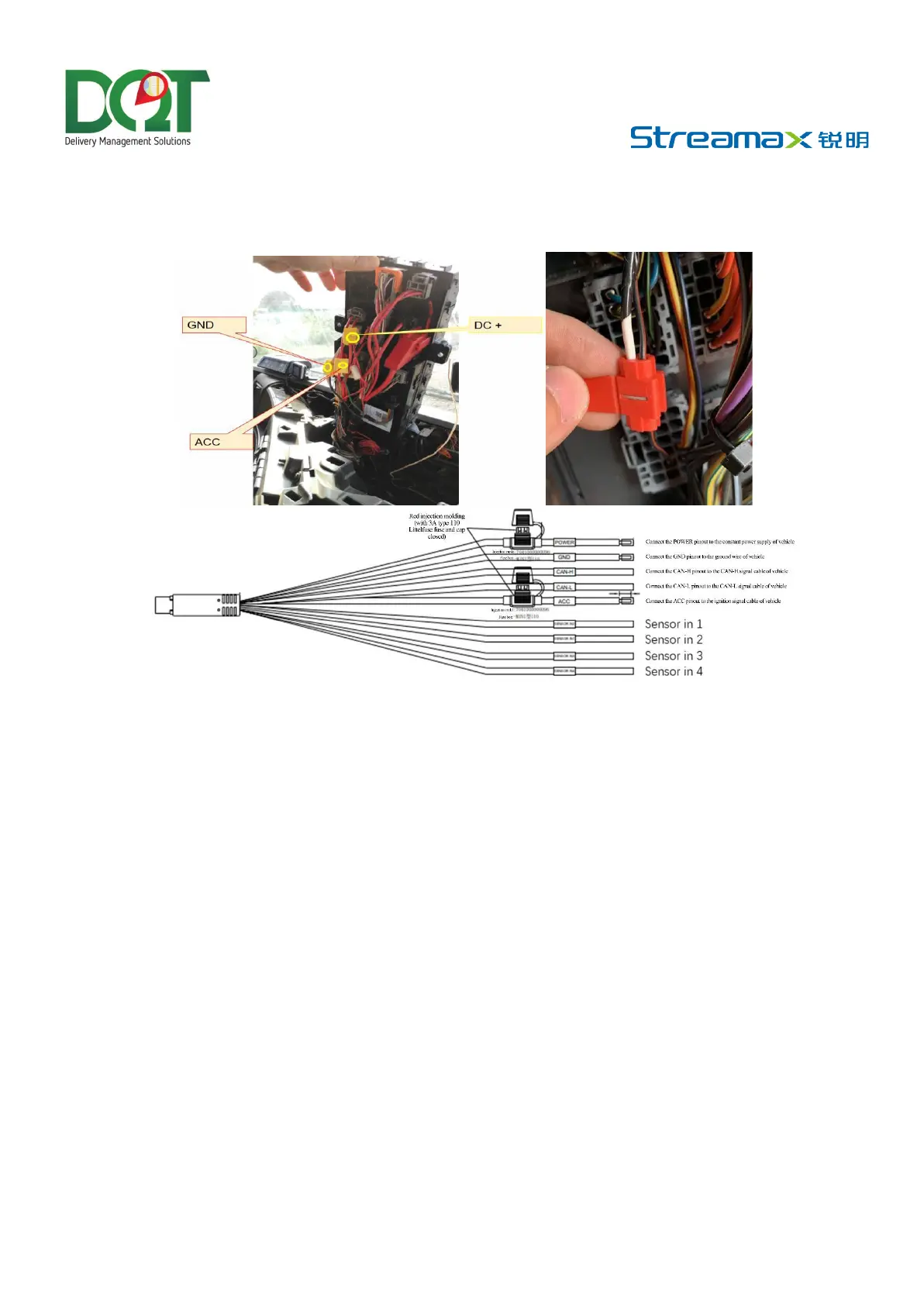

Power Supply Connection
• For hard/ loose wire installation: connect POWER/ACC/GND with the power cable of the vehicle,
respectively.
*Note:
The power line shall be connected using a “special stripping-free connection terminal" where possible
(no stripping is required, to avoid the risk of electric leakage), and the connection shall be wrapped
with insulated rubber tape to avoid electric leakage/short circuit.
If there is no special stripping-free connection terminal, stripped wires can also be used for
connection. In this case, the connection process must conform to the standard specifications. After the
connection is completed, the connection shall be wrapped with insulated rubber tape to avoid electric
leakage/short circuit.
