14 DR
®
FIELD and BRUSH MOWER
Figure 4
Figure 2

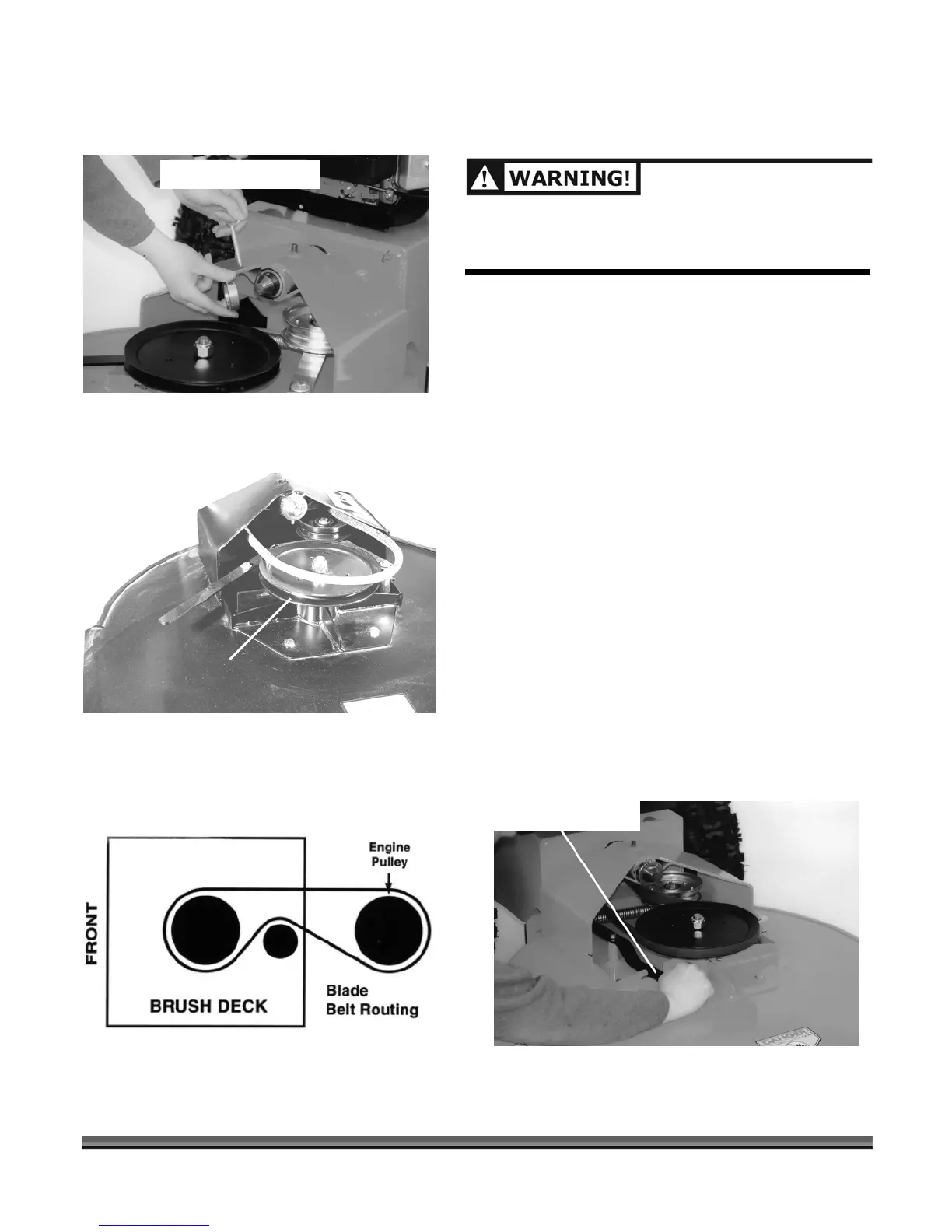

To Install the Brush Deck
BEFORE PERFORMING ANY MAINTENANCE
PROCEDURE, STOP THE ENGINE AND
DISCONNECT THE SPARK PLUG WIRE(S).
Figure 5
Belt Tension Lever
Install Belt
1. Remove the black belt guard by unscrewing
the black knob, lifting the cover and pulling
up and back to remove it. The belt is shipped
wrapped around the pulley.
2. Slide the power unit shaft into the brush deck
and install collar and pin (Figure 2).
3. Install the belt on the pulley and clutch
(Figure 3) and route the belt per the label on
the spindle housing (Figure 4). The tension
lever may have to be released and secured
into slot. (Figure 5).
4. Release the belt tensioner (Figure 5) onto the
belt.
5. Replace the belt guard and secure in place
with the black knob.
Install Collar and Pin
Figure 3
Install Belt
